Snobol SNB-C010
Logs
typeType
Real-Time Clock Floppy controller Multi I/O
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
UMC UM8397 (Floppy controller)
-> Peripheral I/O
(multiple brand) 82C11 (Printer Adapter Interface)
-> Real-Time Clock
UMC UM82C8167 (Real-Time Clock)
-> UART ctrl.
(multiple brand) 8250 (UART)
MTL
Card Type Multi-I/O
I/O Options Parallel port (1), Game port (1), Serial port (2), Floppy (1)
Maximum Dram Unidentified
Chipset Controller Unidentified
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • DA-15
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-10-15T08:14:46Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
1.4KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
File
Logs

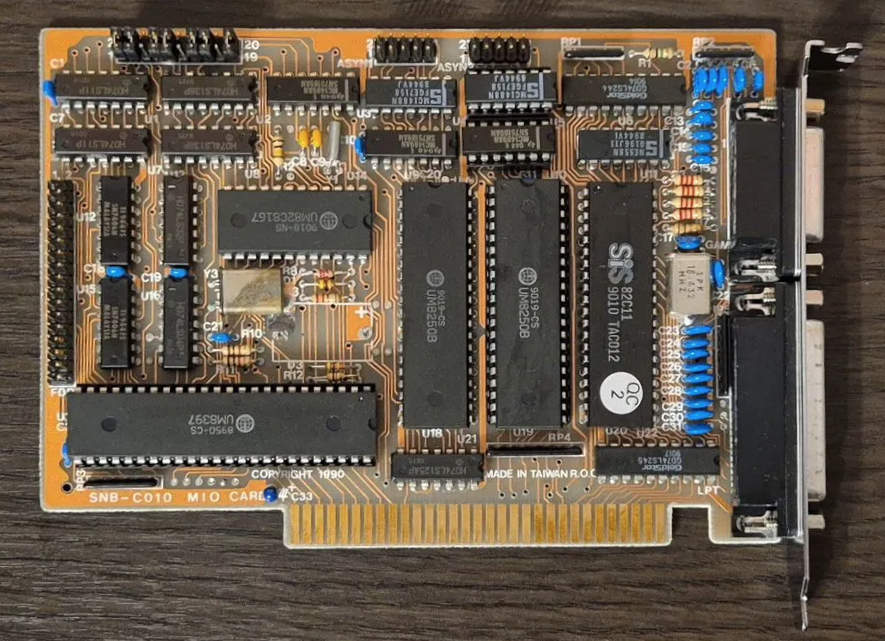

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Eugene Zhukov)

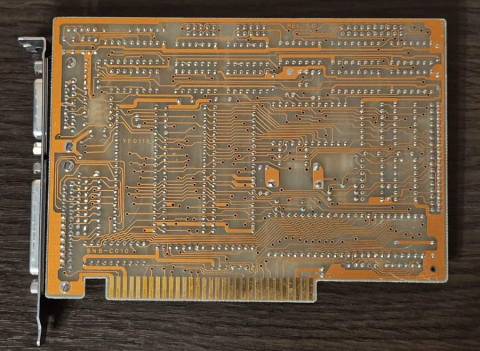

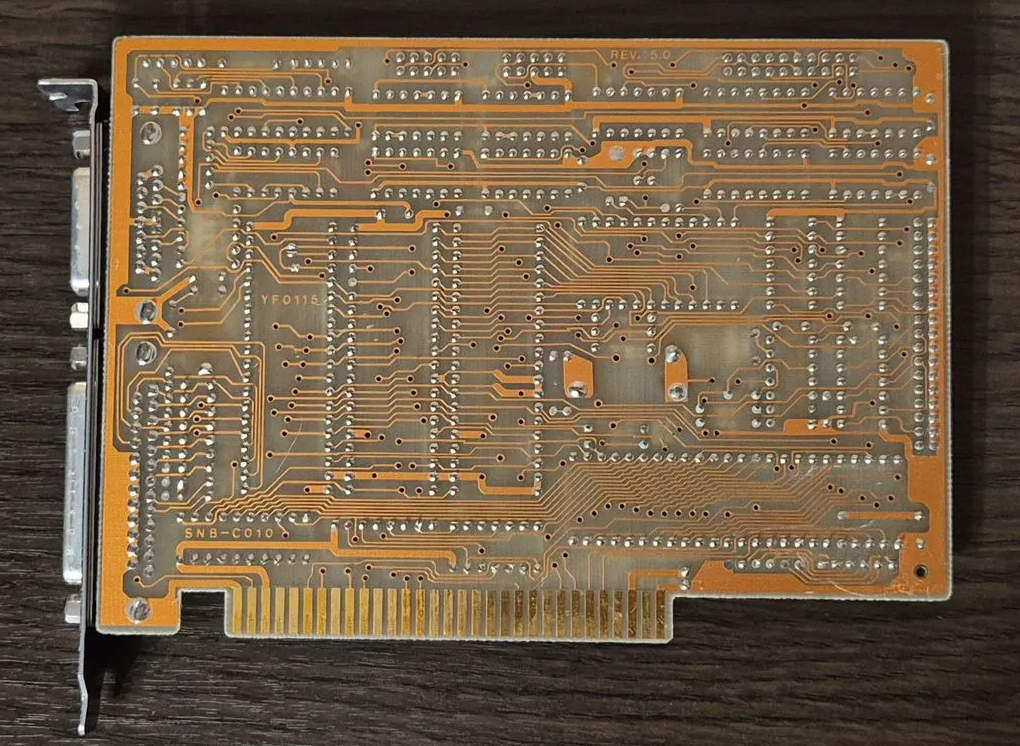

image3 Image 3 of 4 (Eugene Zhukov)

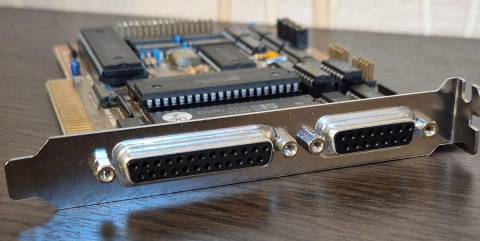

image4 Image 4 of 4 (Eugene Zhukov)
