[Unknown] SIL3512-2 VER A
Logs
typeType
SATA controller
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
3512
chip Chips and specs
-> SATA ctrl.
Silicon Image SiI3512 (SteelVine - AthenaLPC SATALink)
portintI/O ports
2x
  • SATA
2x
  • eSATA
powerPower connectors
Empty
notes Notes

The chip only supports 2 SATA ports. Jumpers need to be moved accordingly to switch between the internal SATA port or the external eSATA port.

Refer to the silkscreen for the appropriate jumper positions.

Last updated 2025-05-25T11:31:56Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
4.3.47
Note
Direct ROM dump
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
4.5.02
Note
File
Logs
Version
4.3.84
Note
File
Logs
Version
4.3.83
Note
File
Logs
Version
4.3.79
Note
File
Logs
Version
4.3.76
Note
File
Logs
Version
4.3.70
Note
File
Logs
Version
4.3.47
Note
File
Logs
Version
4.3.36
Note
File
Logs
Version
4.3.33
Note
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2007-02
File
Logs

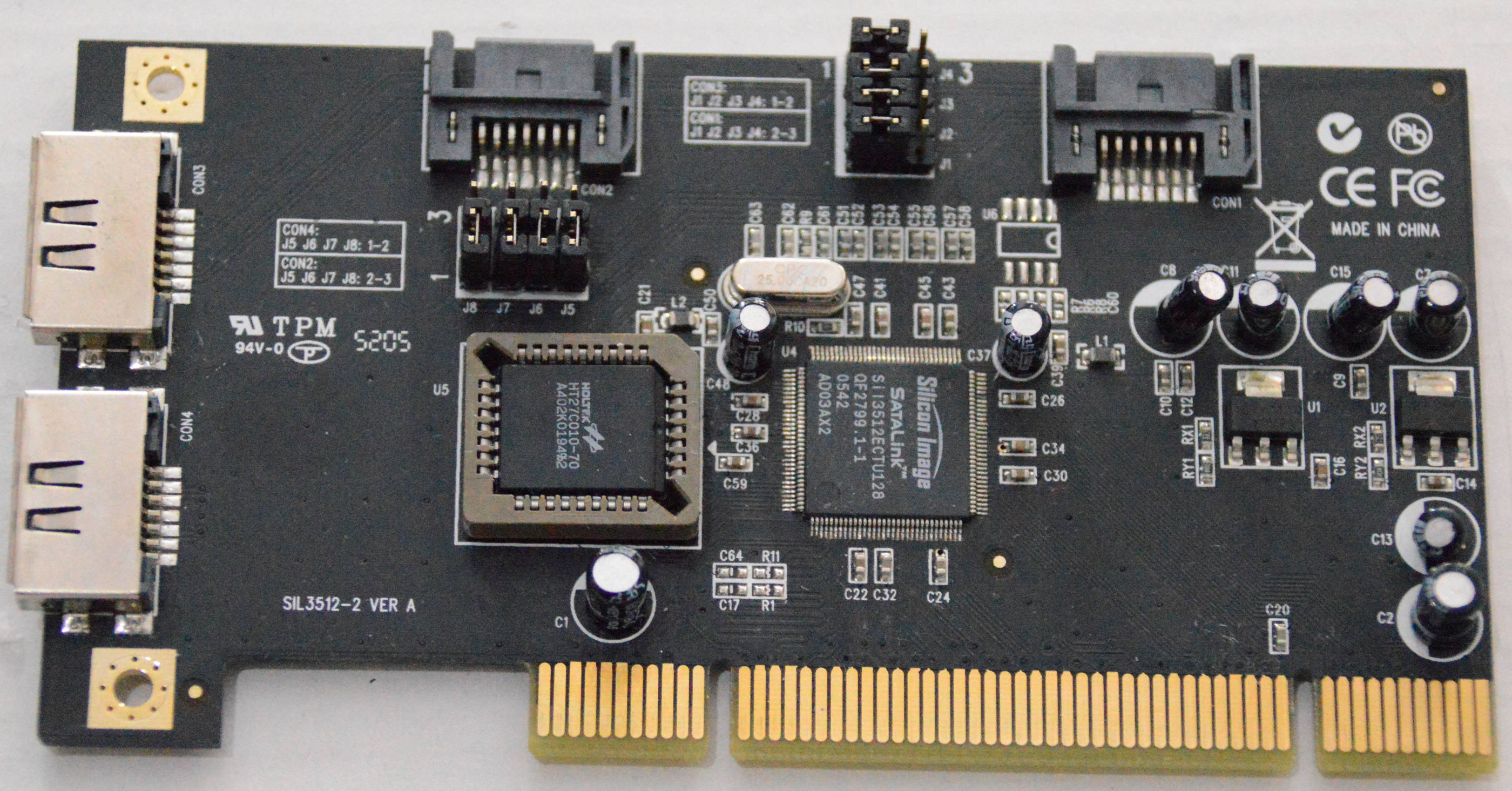

image1 Image 1 of 2 (Grigore)
image2 Image 2 of 2 (Grigore)
