[Unknown] SAI2S7 MULTI I/O PLUS
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
MTL
Size: Half-length, full-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
tag Also known as
  • Unknown WB757
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2024-12-26T15:18:53Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (TatorsGames)

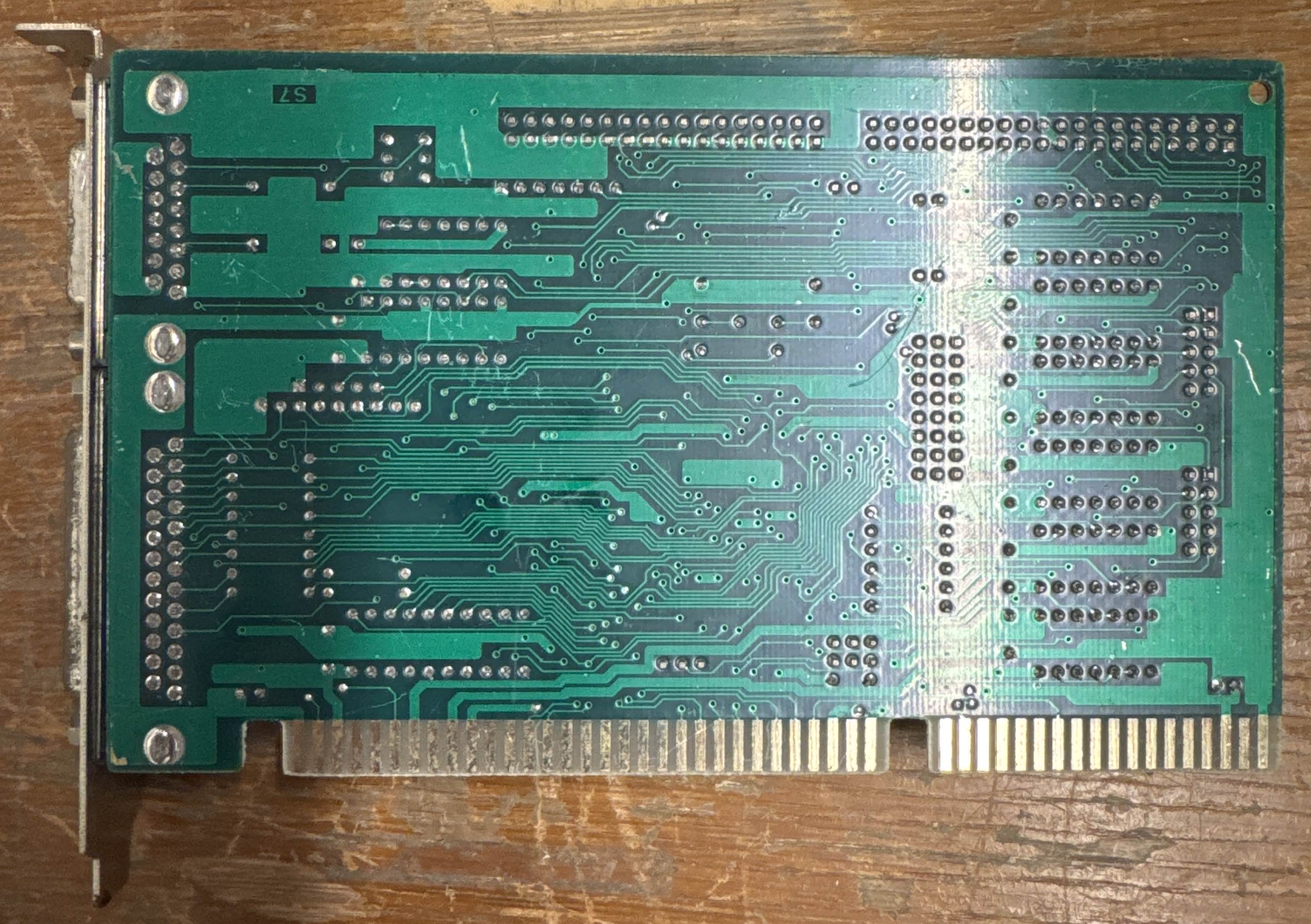

image3 Image 3 of 3 (TatorsGames)
