[Unknown] NE-12
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
Davicom DM9008F (ISA PnP Ethernet)
MTL
Boot ROM Available (location unidentified)
Data Bus 16-bit ISA
NIC Type Ethernet
Topology Linear Bus, Star
Wiring Type Unshielded twisted pairAUI transceiver via DB-15 portRG-58A/U 50ohm coaxial
Network Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
  • Unknown XZ841222
  • Unknown 122069
portintI/O ports
1x
  • BNC 50-ohms
1x
  • RJ45
1x
  • 28-pin DIP socket
powerPower connectors
Empty
notes Notes

NE-12ACT same maker

Last updated 2025-07-18T06:02:31Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2000-11-30
File
Logs

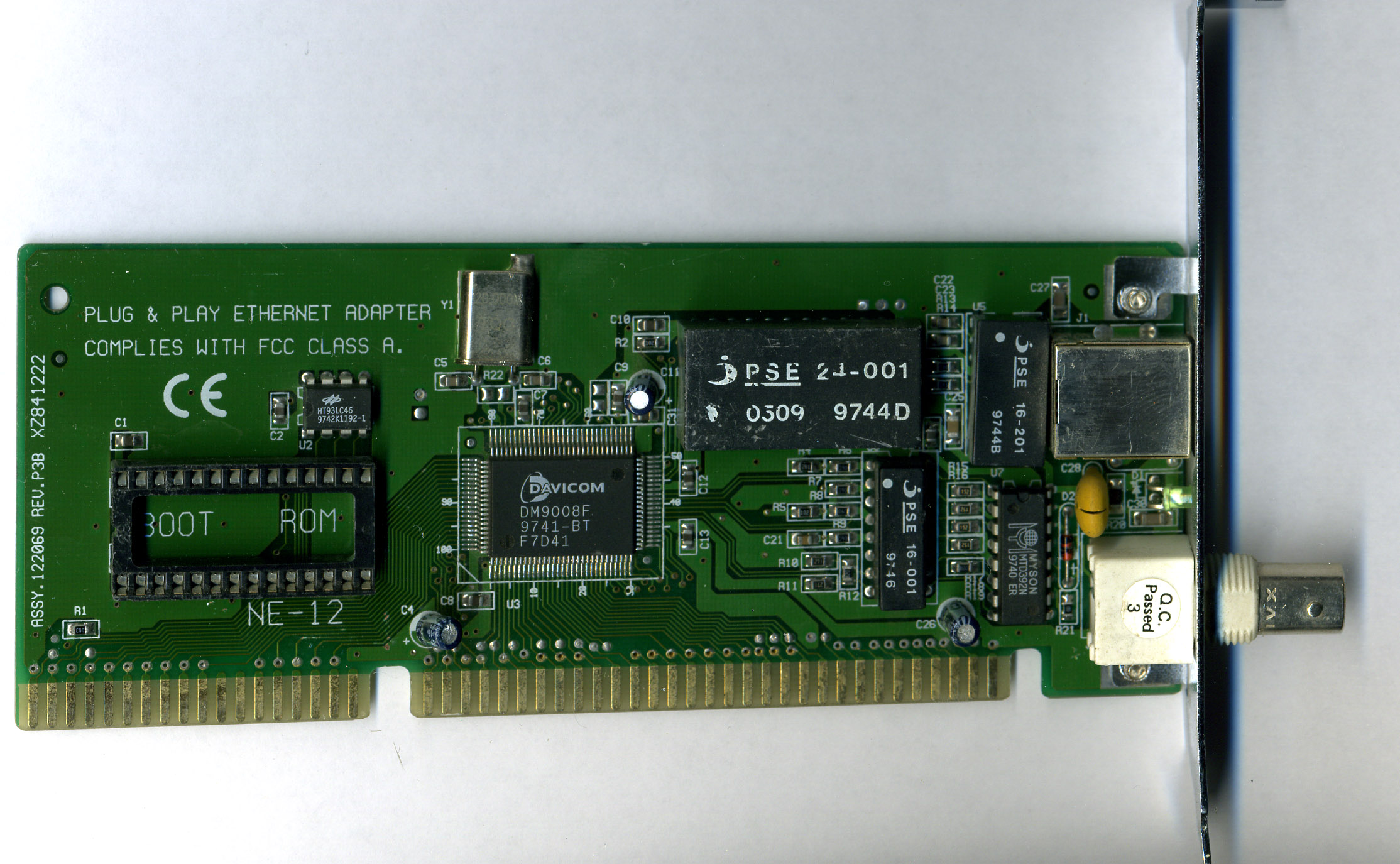

image1 Image 1 of 2 (Virtual Computer Antiques)

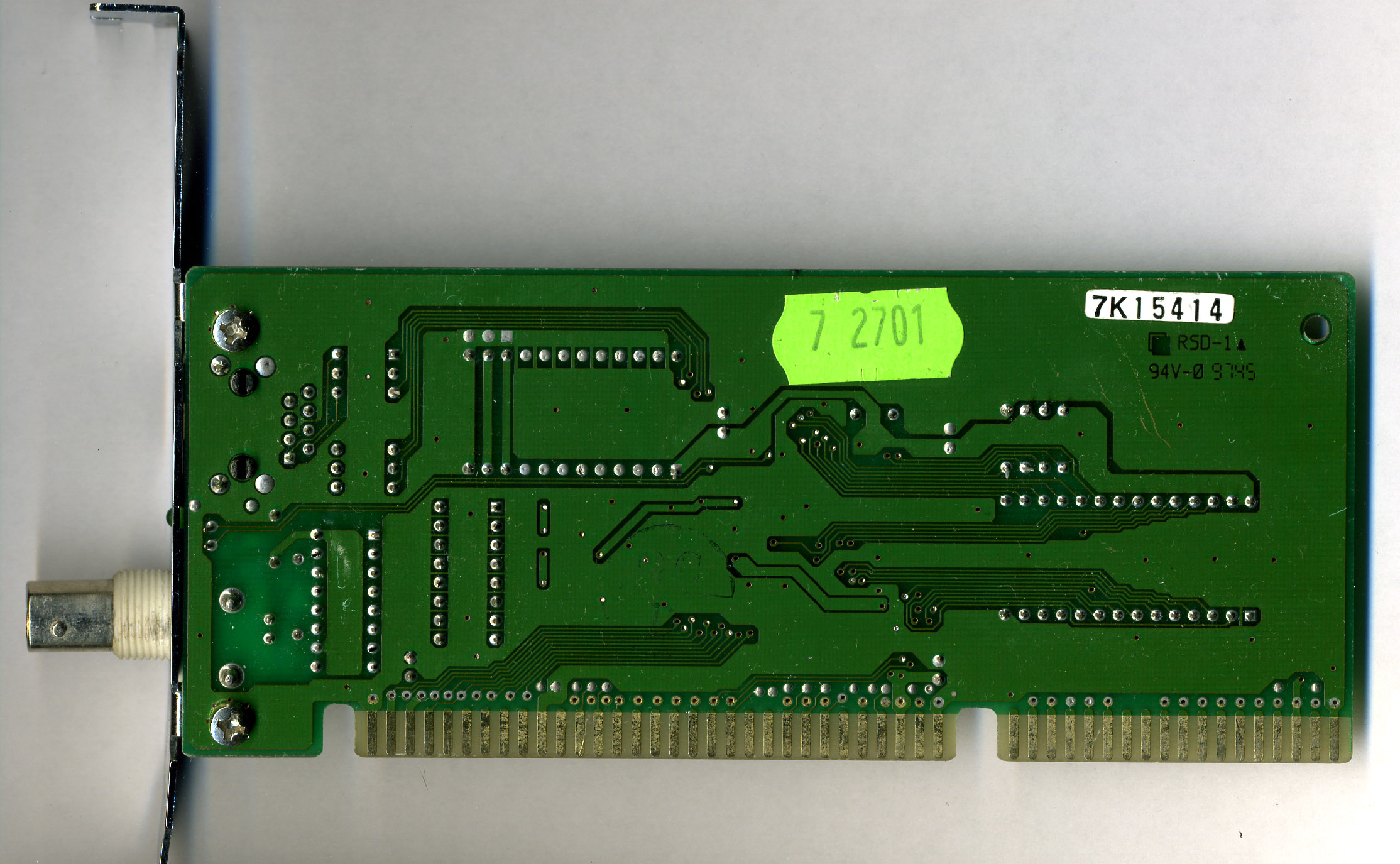

image2 Image 2 of 2 (Virtual Computer Antiques)
