[Unknown] M5105 ISA multi I/O
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Acer M5105
MTL
Size: Half-length, half-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE(AT) interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • DA-15, Game port
1x
  • 2x20 2.54mm pin header, ATA (PIO)
1x
  • DB-25, ECP/EPP
2x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
notes Notes

The settings may match with the IDE PLUS-V2 card since the M5105 cards are all quite generic in design.

Last updated 2025-07-23T06:32:44Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs

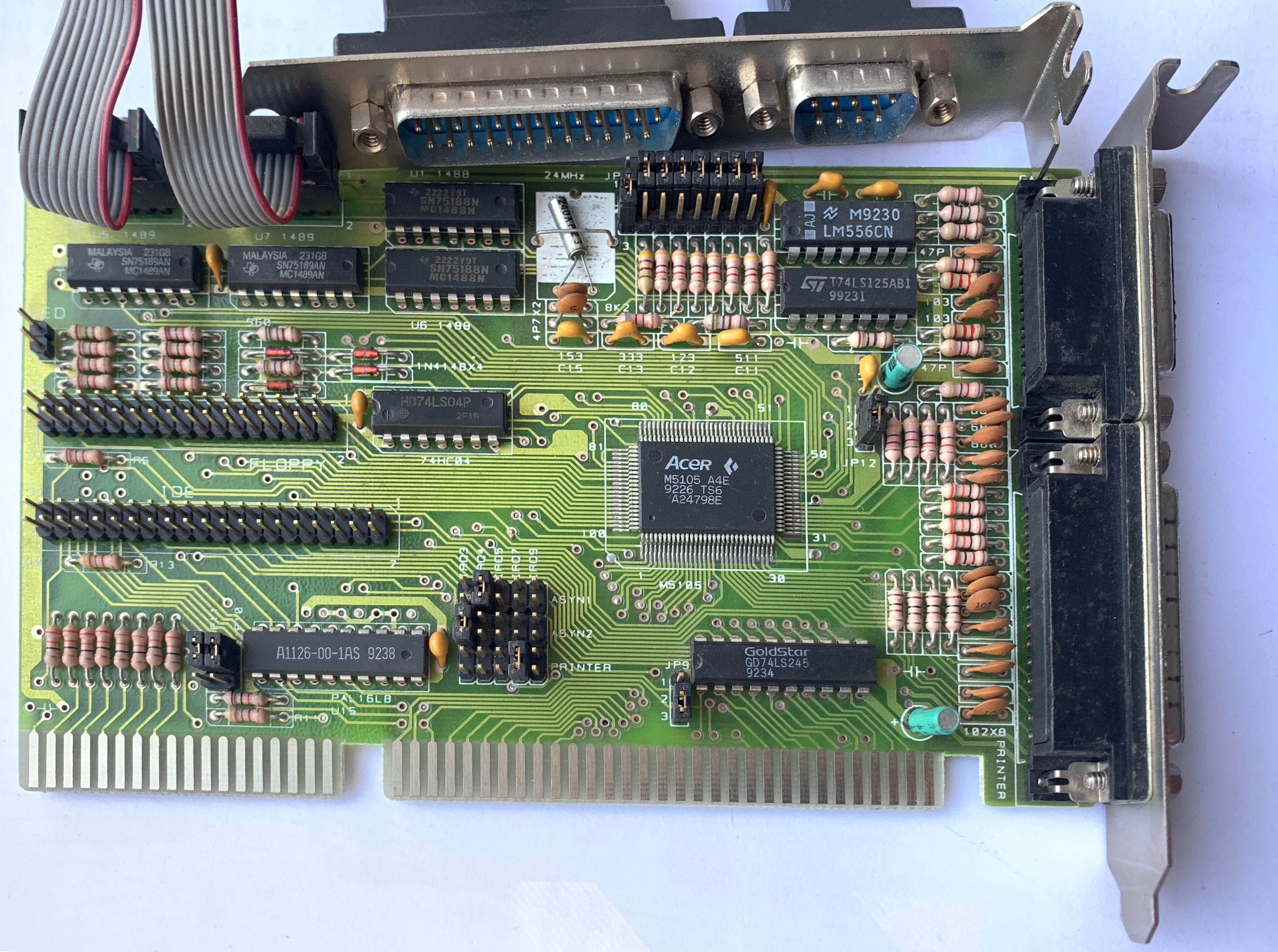

image1 Image 1 of 3 (Retronn aka Enigma)

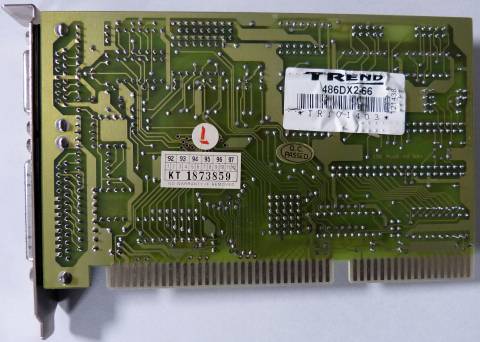

image2 Image 2 of 3 (Elke Wehmer)

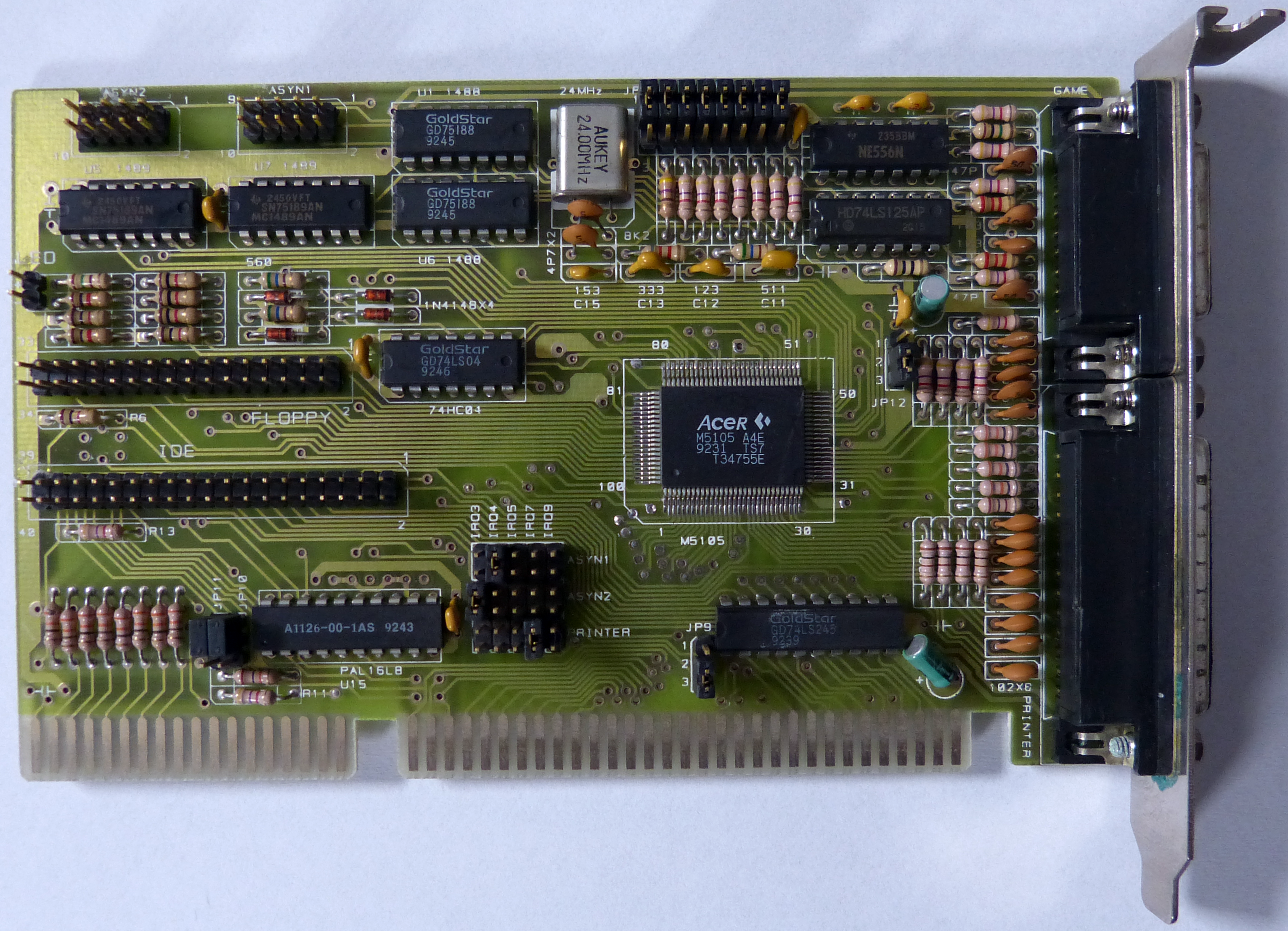

image3 Image 3 of 3 (Retronn aka Enigma)
