[Unknown] CS32-3DI
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Crystal CS4232-KQ Crystal CS4289-KQ
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM audio, CD-ROM interface, game port, line in, line out, microphone in, PC speaker in, speaker out, wavetable
Maximum Onboard Memory None
Floppy drives supported None
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-07T15:52:10Z
biosc No BIOS files available
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

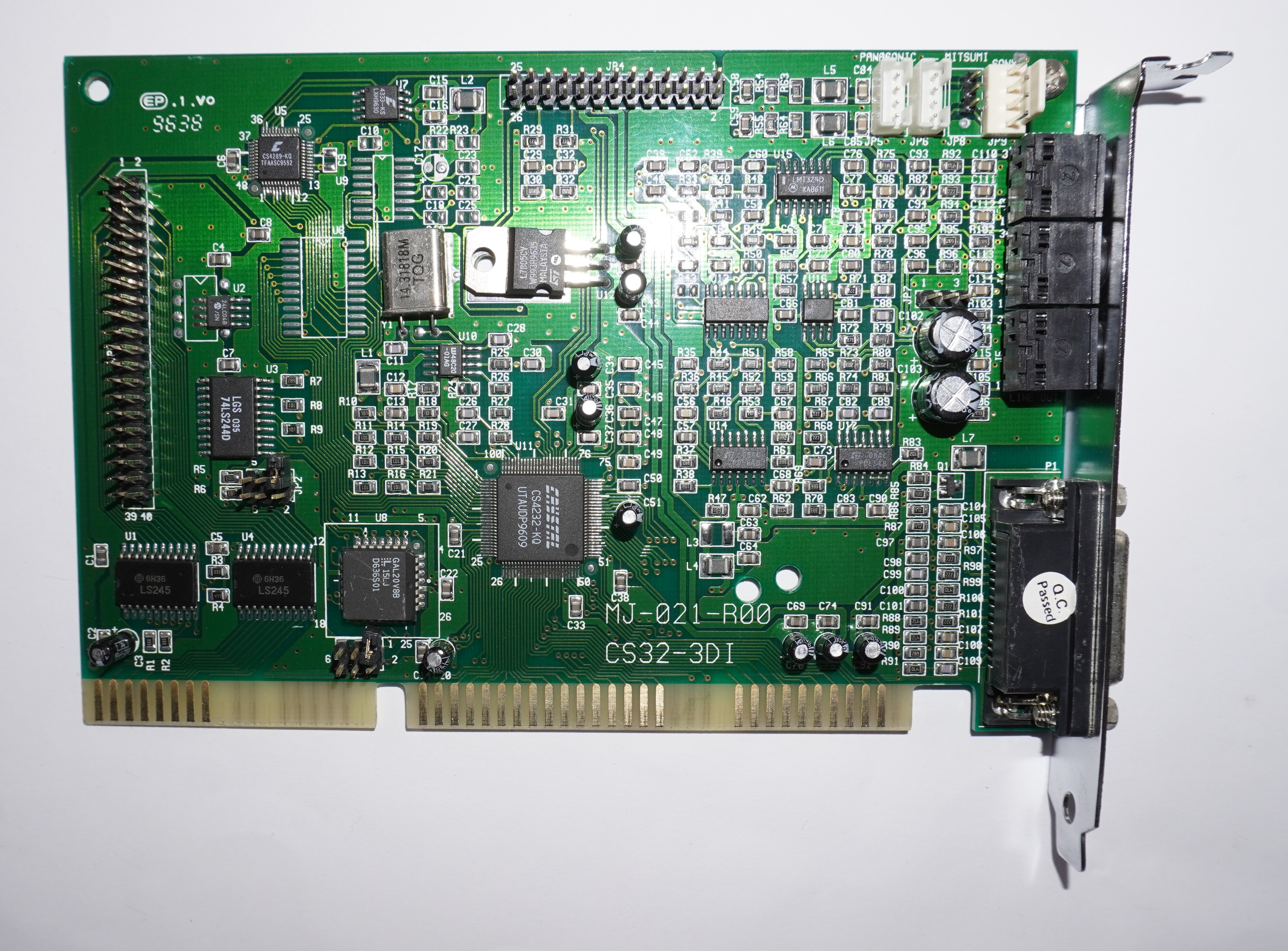

image1 Image 1 of 1 (Elke Wehmer)
