[Unknown] Composite Capture
Logs
typeType
Video capture
interfaceInterface
signalSignaling
PCIe 1.0
dimSlot height
1
datePCI ID
1080 036E 0878
dimDimensions
101 mm (width) x 66mm (length)
chip Chips and specs
-> Bridge Interface
AsMedia ASM1083 (PCIe to PCI Bridge for 3 Slots)
-> Video
Conexant Fusion 878A

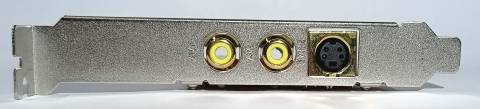

portintI/O ports
2x
  • RCA Jack
1x
  • 4-pin Mini-DIN
powerPower connectors
Empty
Last updated 2025-02-20T17:48:26Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.4.0
OS support
Windows 9x
Arch
x86
Size
10.5KB
Filename
Name
Version
5.3.8
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
302.2KB
Filename
Name
Version
N/A
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.4MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2013-06-18
File
Logs
Chip
Release date
1999-12-03
File
Logs
image1 Image 1 of 3 (Helen_Croft)
image2 Image 2 of 3 (Helen_Croft)
image3 Image 3 of 3 (Helen_Croft)
