ECS CI-91 (SMD)
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
H9NCI91
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
MTL
Data Bus 16-bit ISA
Card Size Half-length, full-height
Card Type Hard drive controller
Hard Drives supported Two IDE (AT/XT) drives
Floppy drives supported Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header, Game port
1x
  • 2x20 2.54mm pin header, ATA (PIO)
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
Last updated 2024-12-26T19:35:40Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs

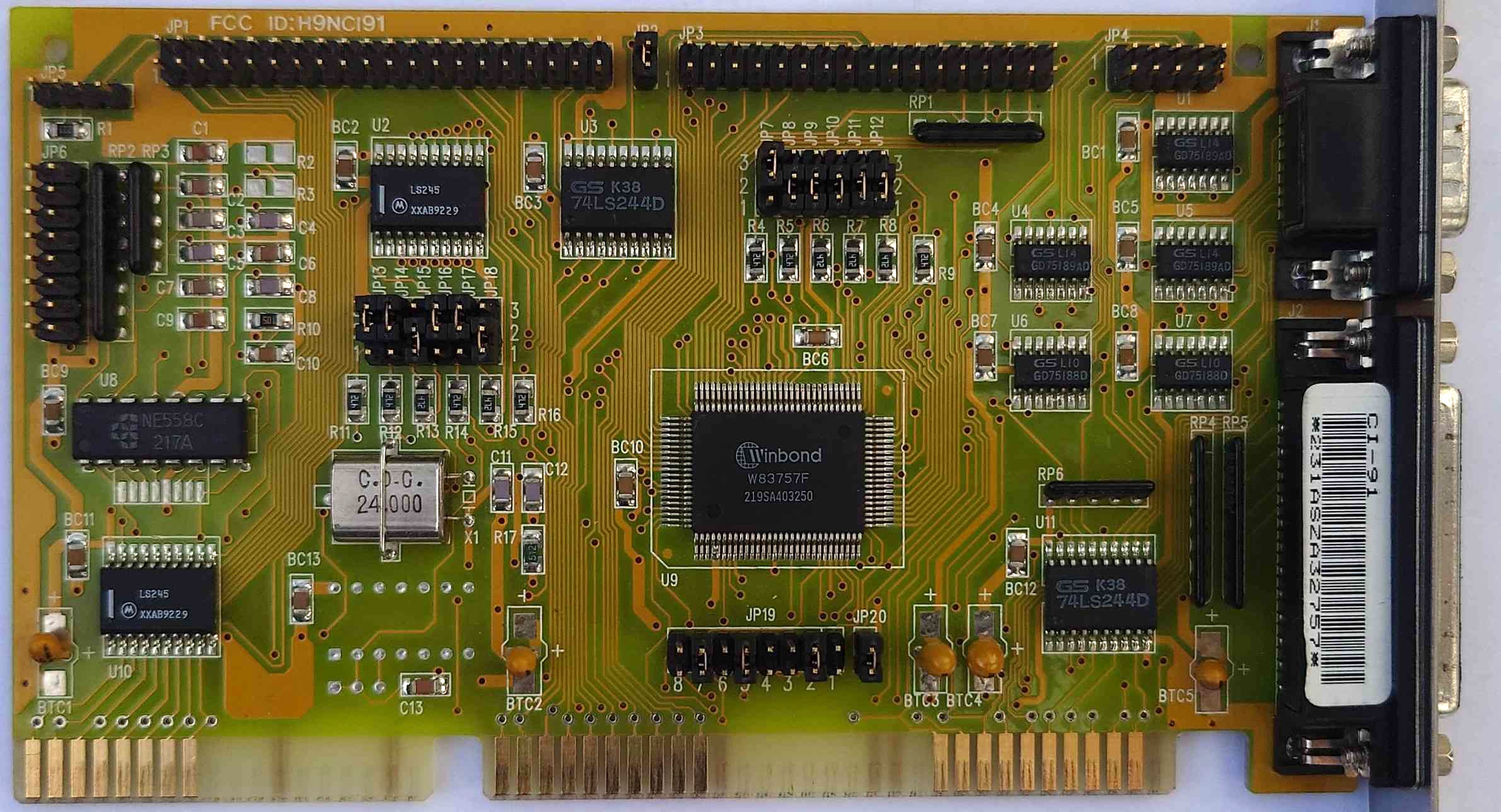

image1 Image 1 of 3 (Microhouse)

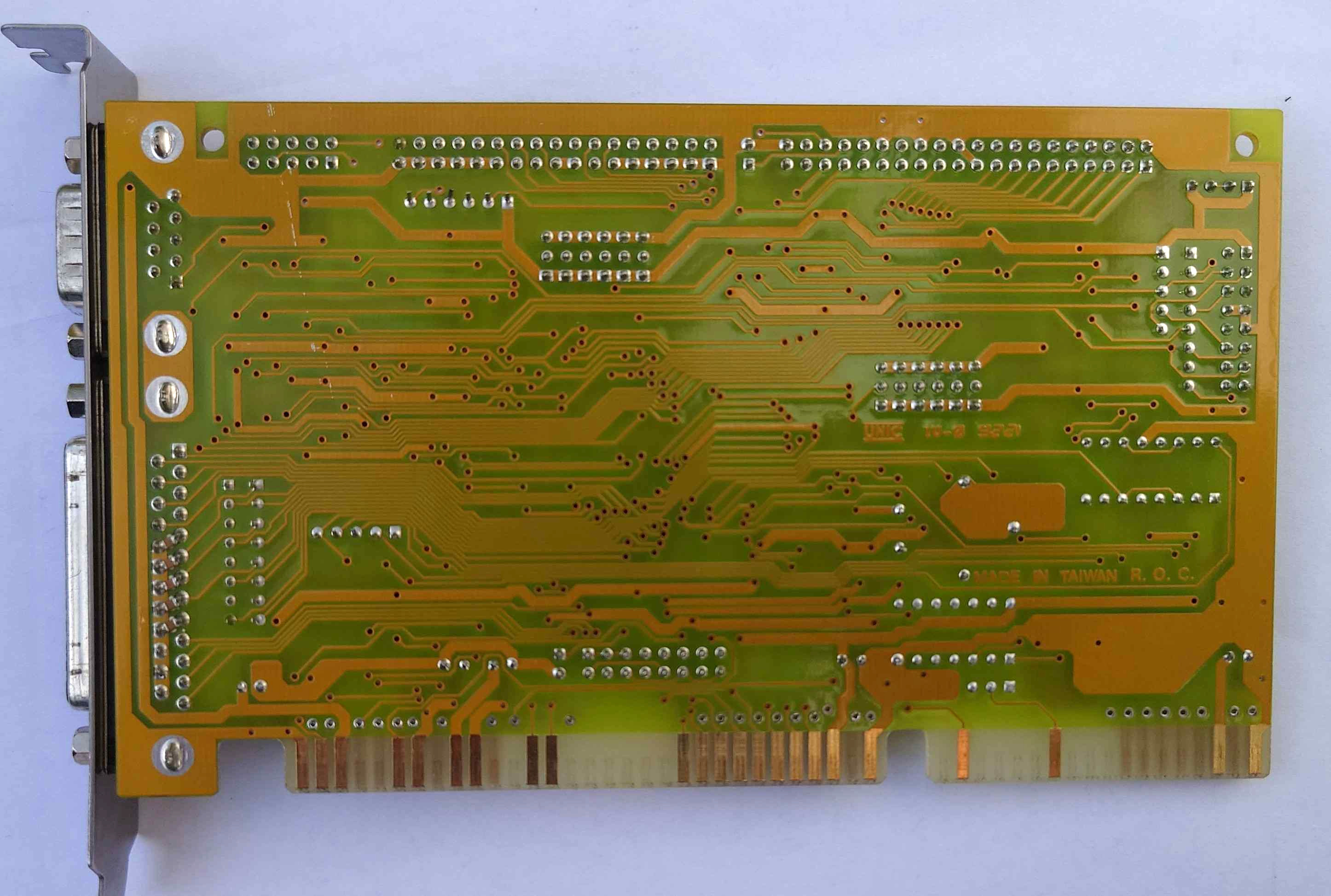

image2 Image 2 of 3 (perhenden)
image3 Image 3 of 3 (perhenden)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
