Union UTD74
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9660
ramRAM type
EDO
ramRAM size
4MB2MB
chip Chips and specs
-> Video
Trident ProVidia9685 Analog Devices AD724 (RGB to NTSC/PAL Encoder)
tag Also known as
  • Unknown 9685B1 P11
  • Unknown 9685B2 P12
portintI/O ports
1x
  • RCA Jack
1x
  • 4-pin Mini-DIN
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-22T02:27:40Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

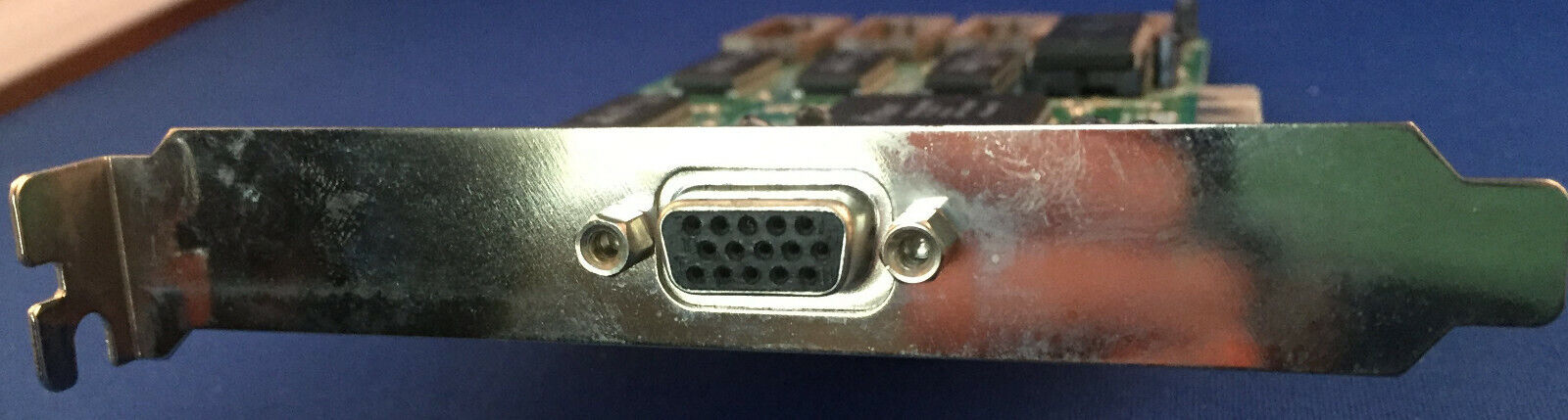

image1 Image 1 of 6 (pshipkov)

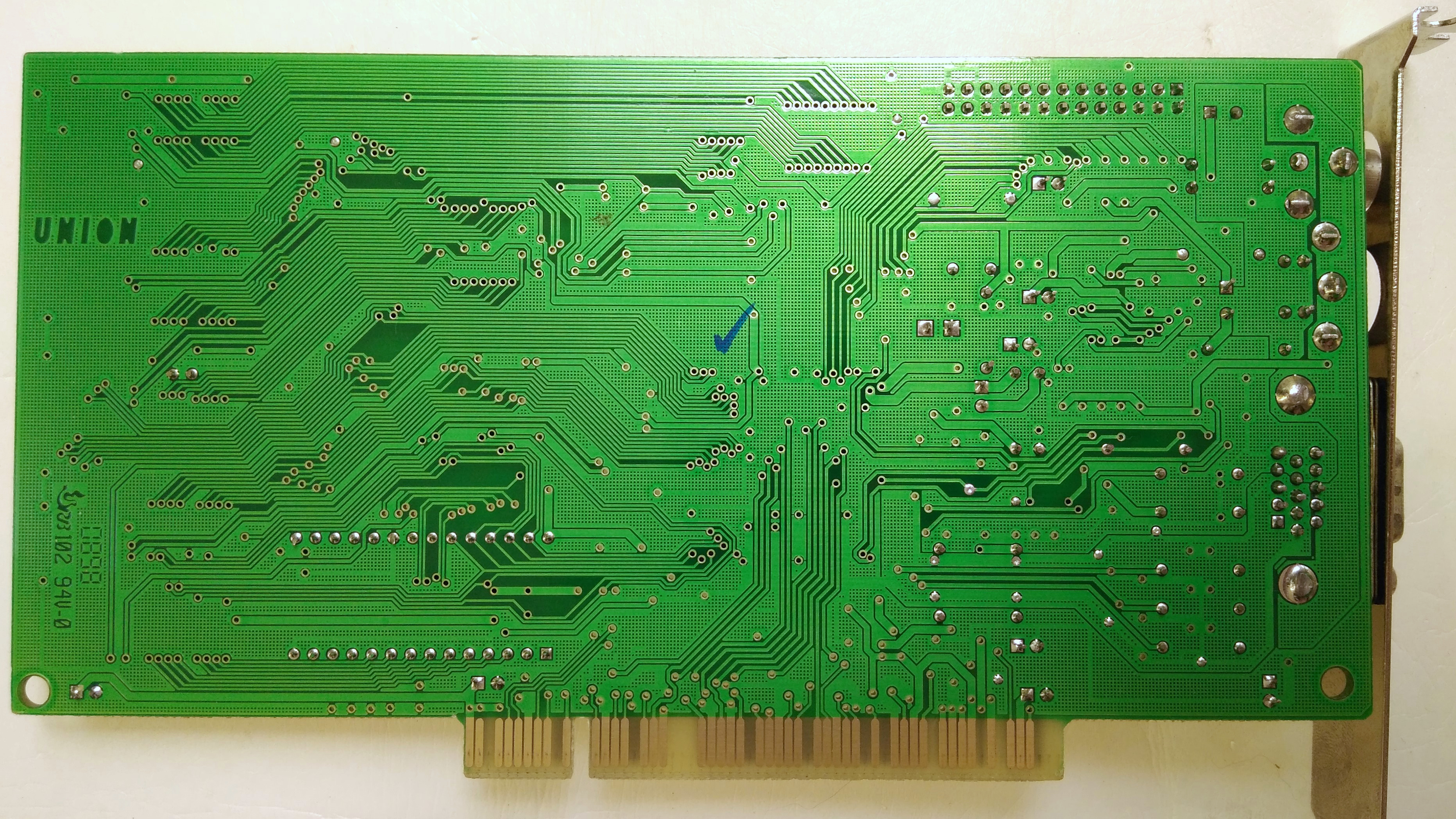

image2 Image 2 of 6 (Karbist)

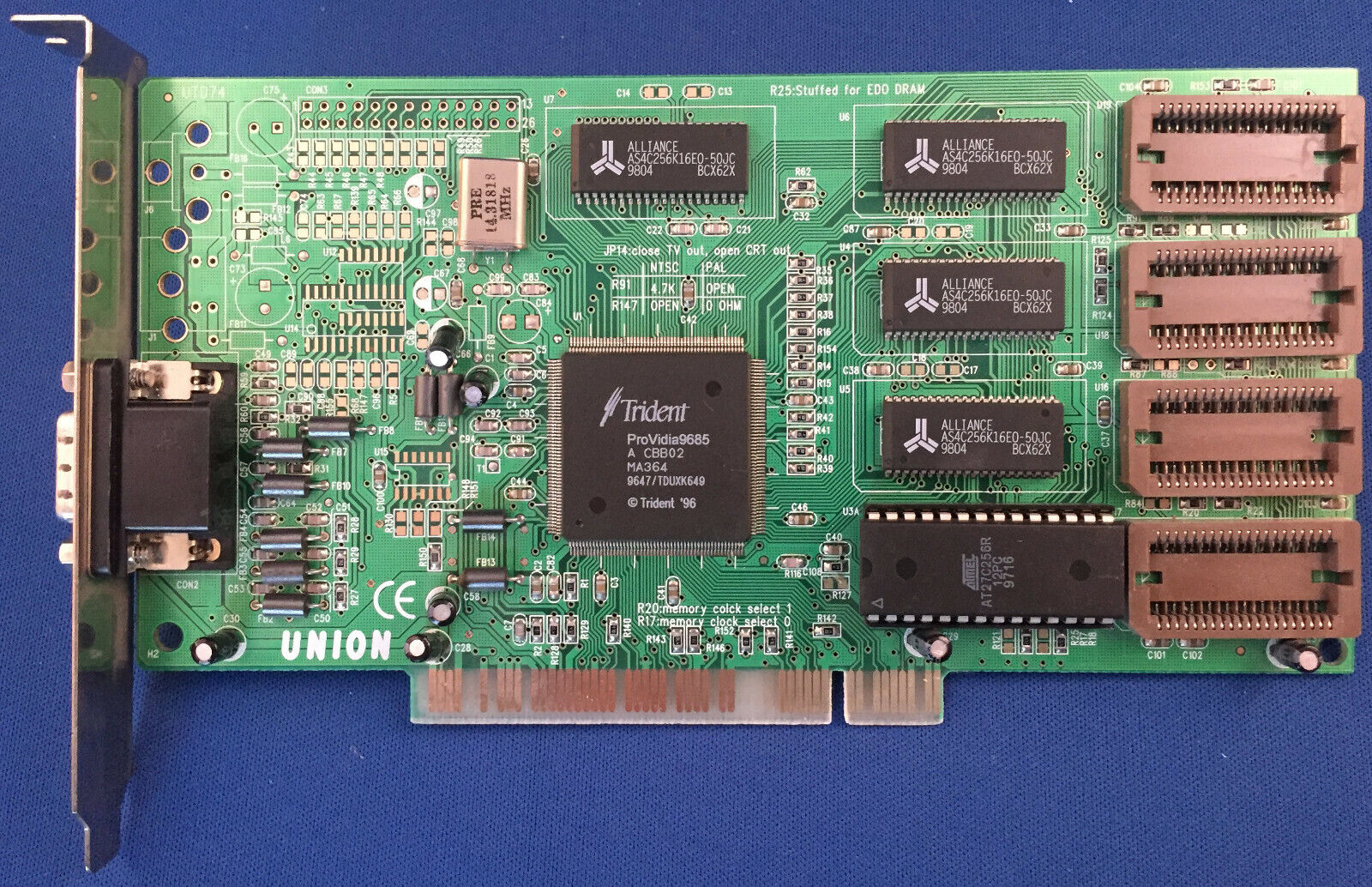

image3 Image 3 of 6 (recycledgoods)

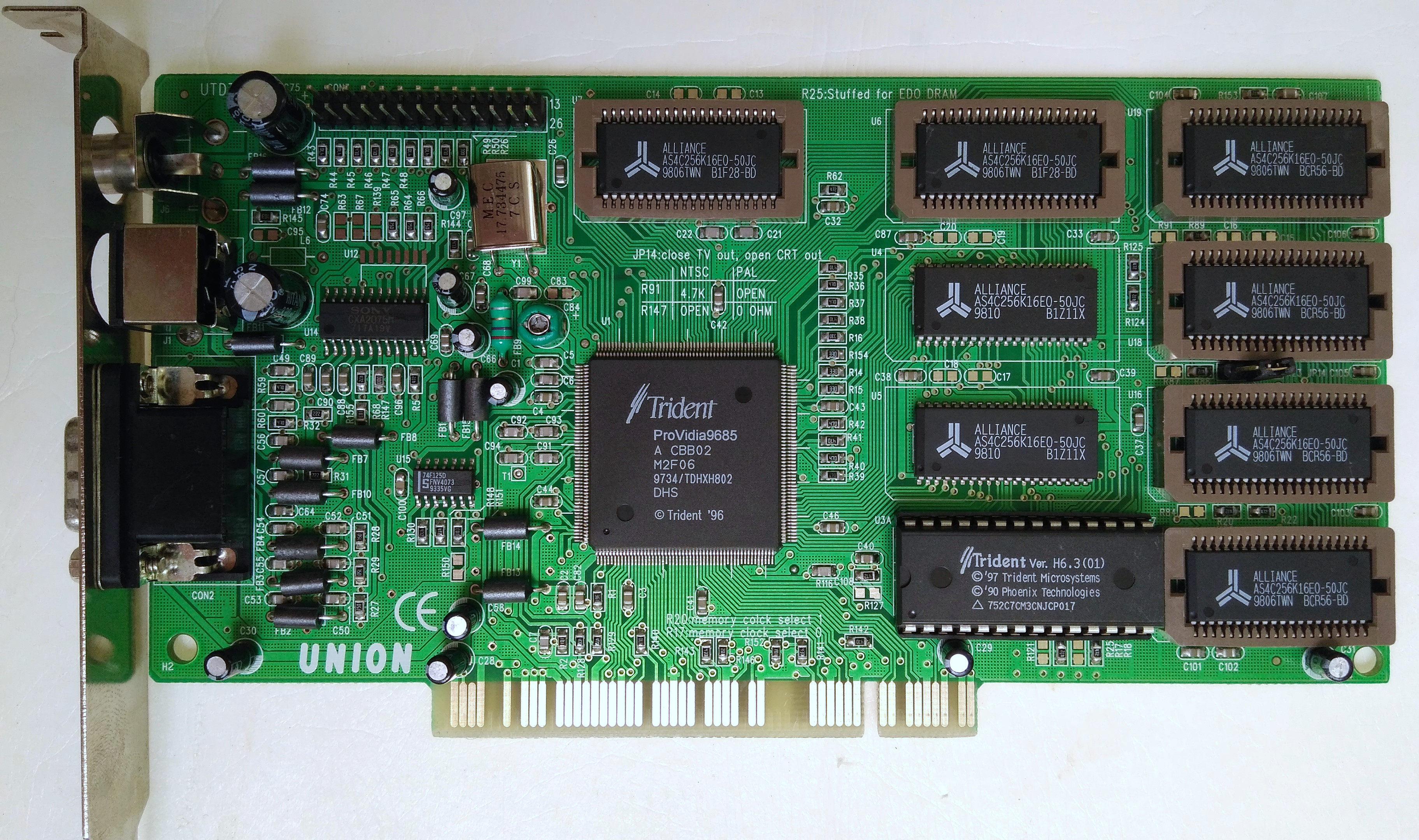

image4 Image 4 of 6 (Karbist)

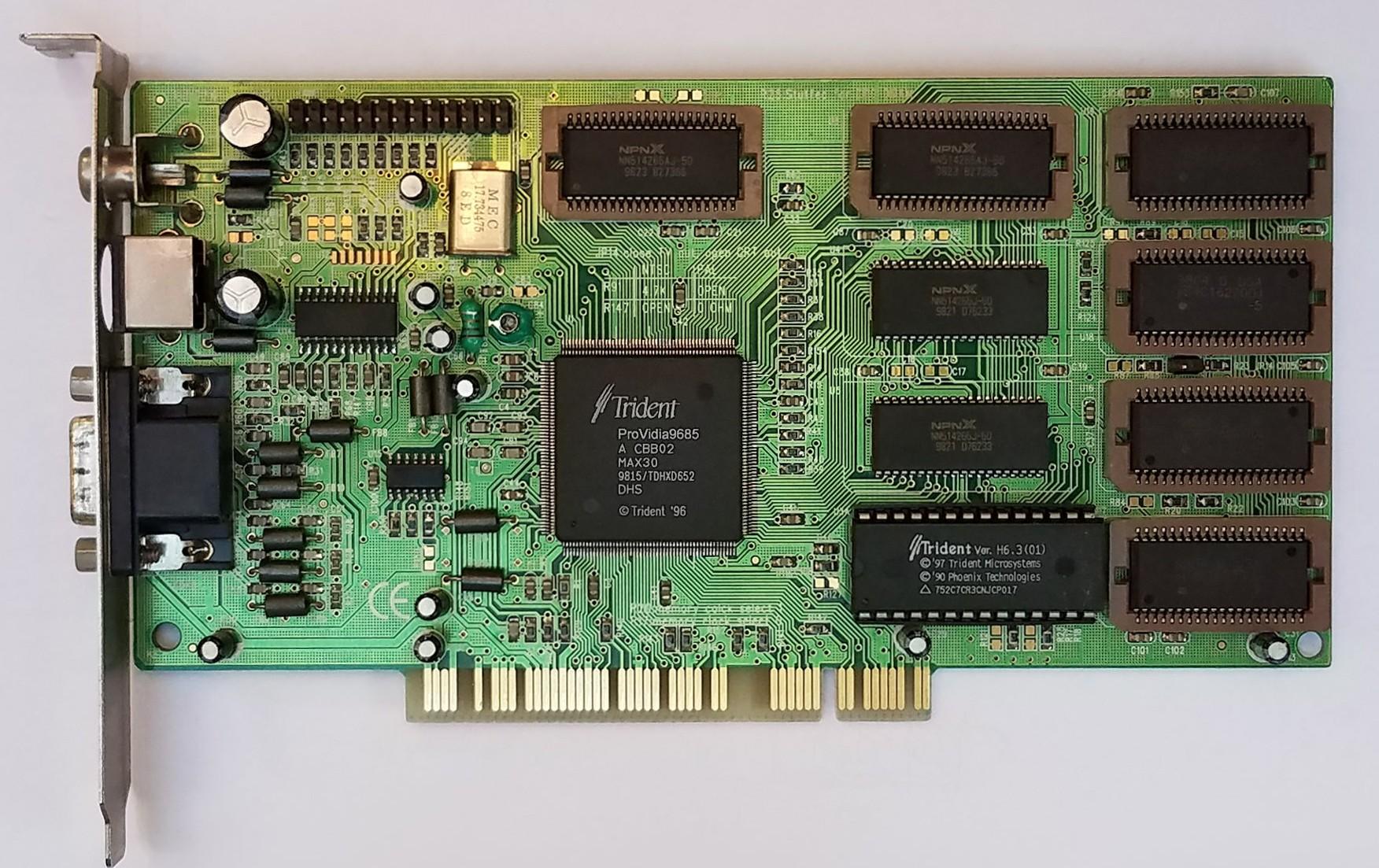

image5 Image 5 of 6 (recycledgoods)

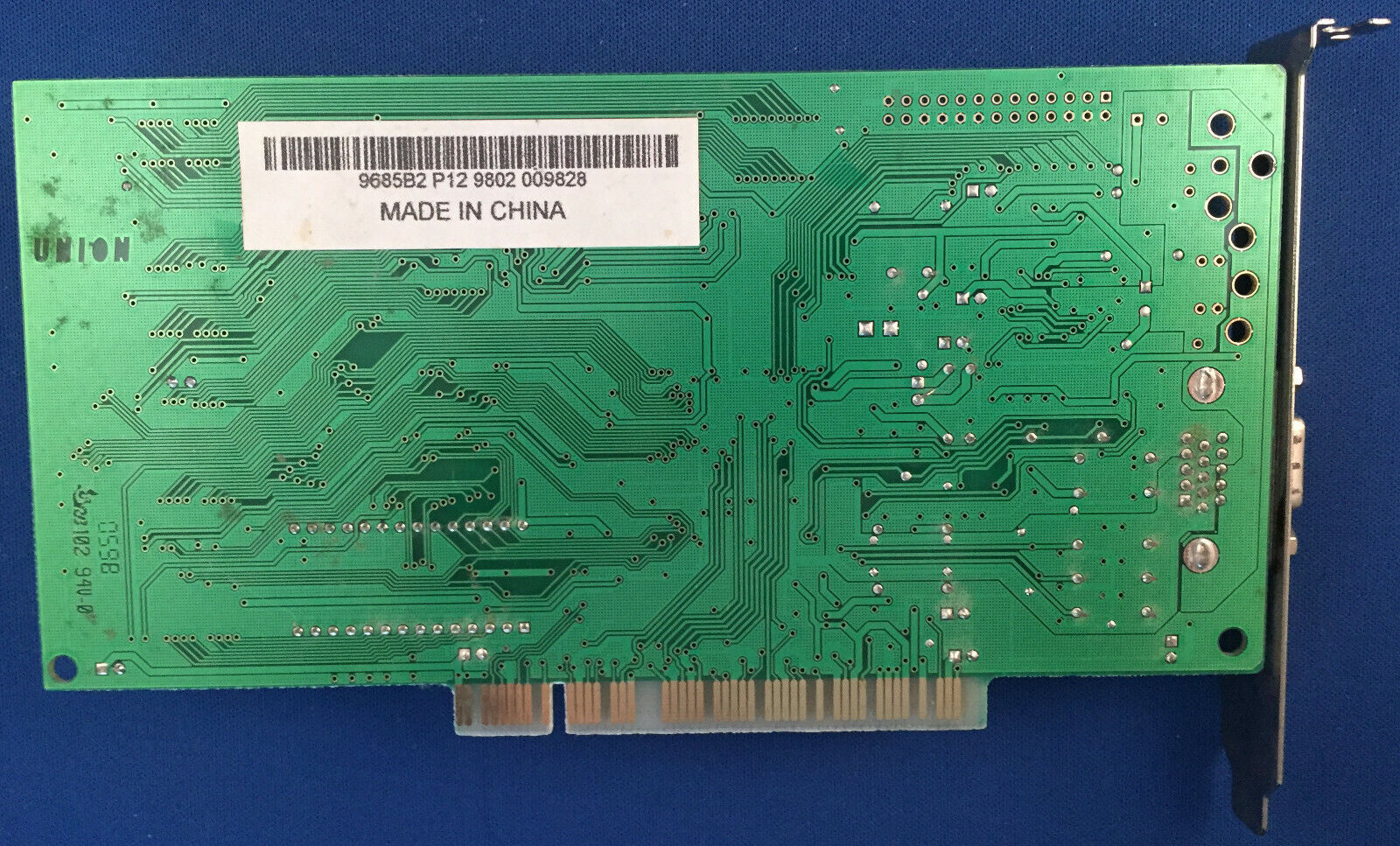

image6 Image 6 of 6 (recycledgoods)
