U.S. ROBOTICS SPORTSTER 14.4 INT
Logs
typeType
Modem
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
CJE-0320
chip Chips and specs
-> Modem
Rockwell R6680-17 (RC144ATF-P)
MTL
Chip Set U.S. Robotics
Data Bus 8-bit ISA
Card Type Fax, Modem (asynchronous), Voice
Fax Class Class I
I/O Options Speakerphone, Voice-mail, Voice View
Maximum Fax Rate 14.4Kbps
Maximum Data Rate 14.4Kbps
Fax Modulation Protocol Unidentified
Data Modulation Protocol Bell 103/212AITU-T V.21, V.22, V.22bis, V.23, V.25, V.32, V.32bis
Error Correction/Compression MNP5, V.42, V.42bis
tag Also known as
portintI/O ports
2x
  • RJ11
powerPower connectors
Empty
notes Notes

ICES code 550 6578 A

Last updated 2025-07-16T12:38:21Z
biosc No BIOS files available
drv No drivers available
doc No card documents available

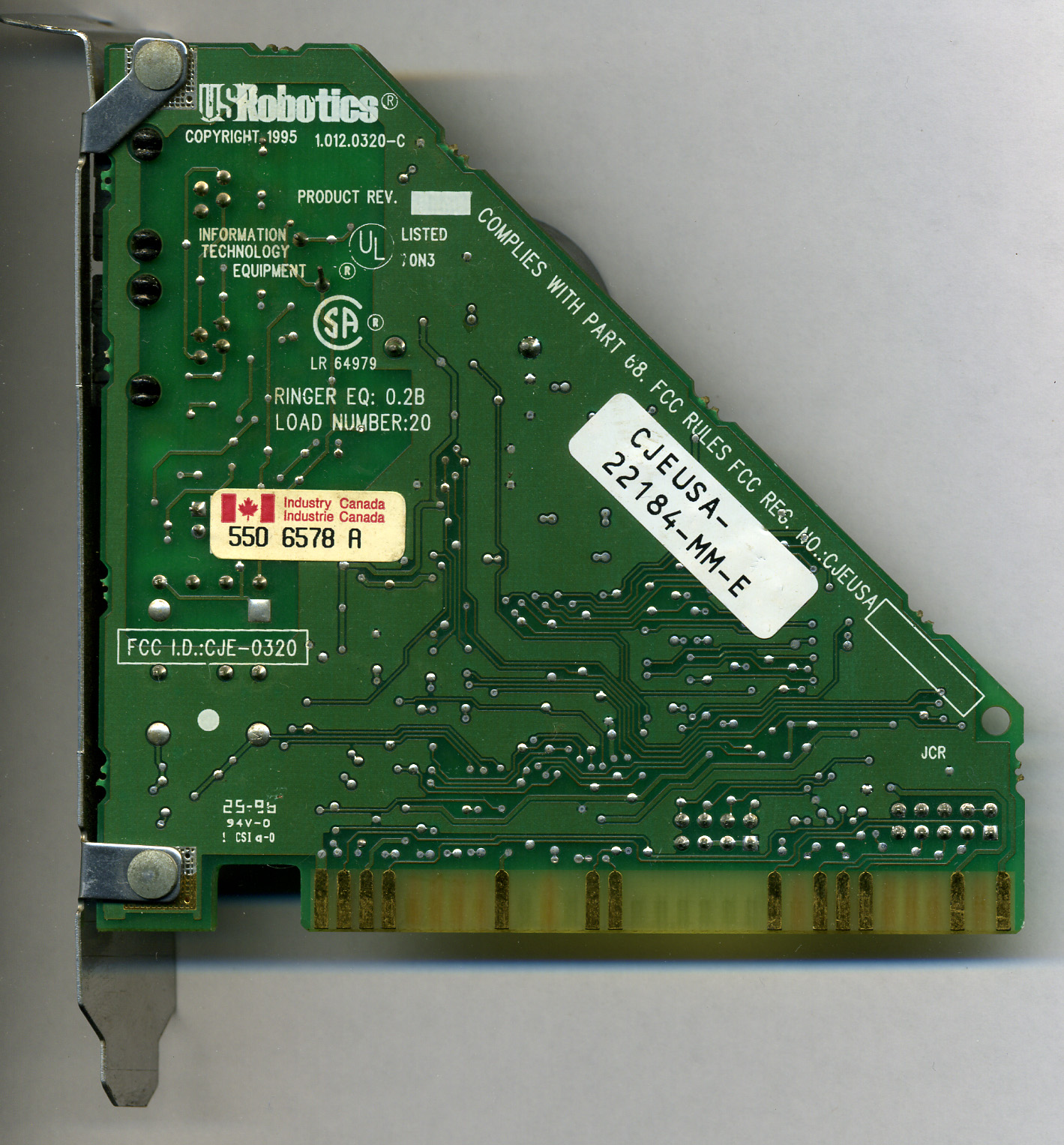

image1 Image 1 of 2 (Virtual Computer Antiques)
image2 Image 2 of 2 (Virtual Computer Antiques)
