Tyan S1366 Yukon
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit PCI
dimSlot height
1
datePCI ID
0640
fccFCC ID
KAOS1366

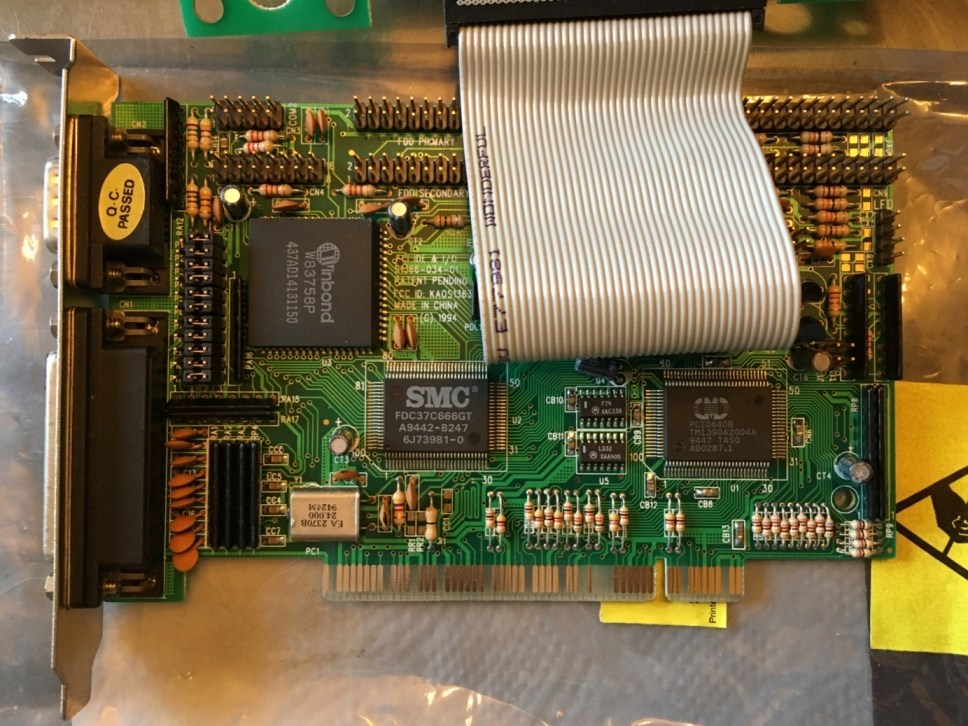

chip Chips and specs
-> IDE ctrl.
CMD PCI0640 (MDMA 1 IDE controller)
-> Signal transmitter/receiver
Winbond W83758P (I/O Coupler)
-> Super I/O
SMSC/SMC FDC37C666GT
MTL
Size: Half-length, full-height card
Data bus: 32-bit PCI
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
2x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
2x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
wrench No card specific known issues
  • Faulty IDE Controller

The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.

notes Notes

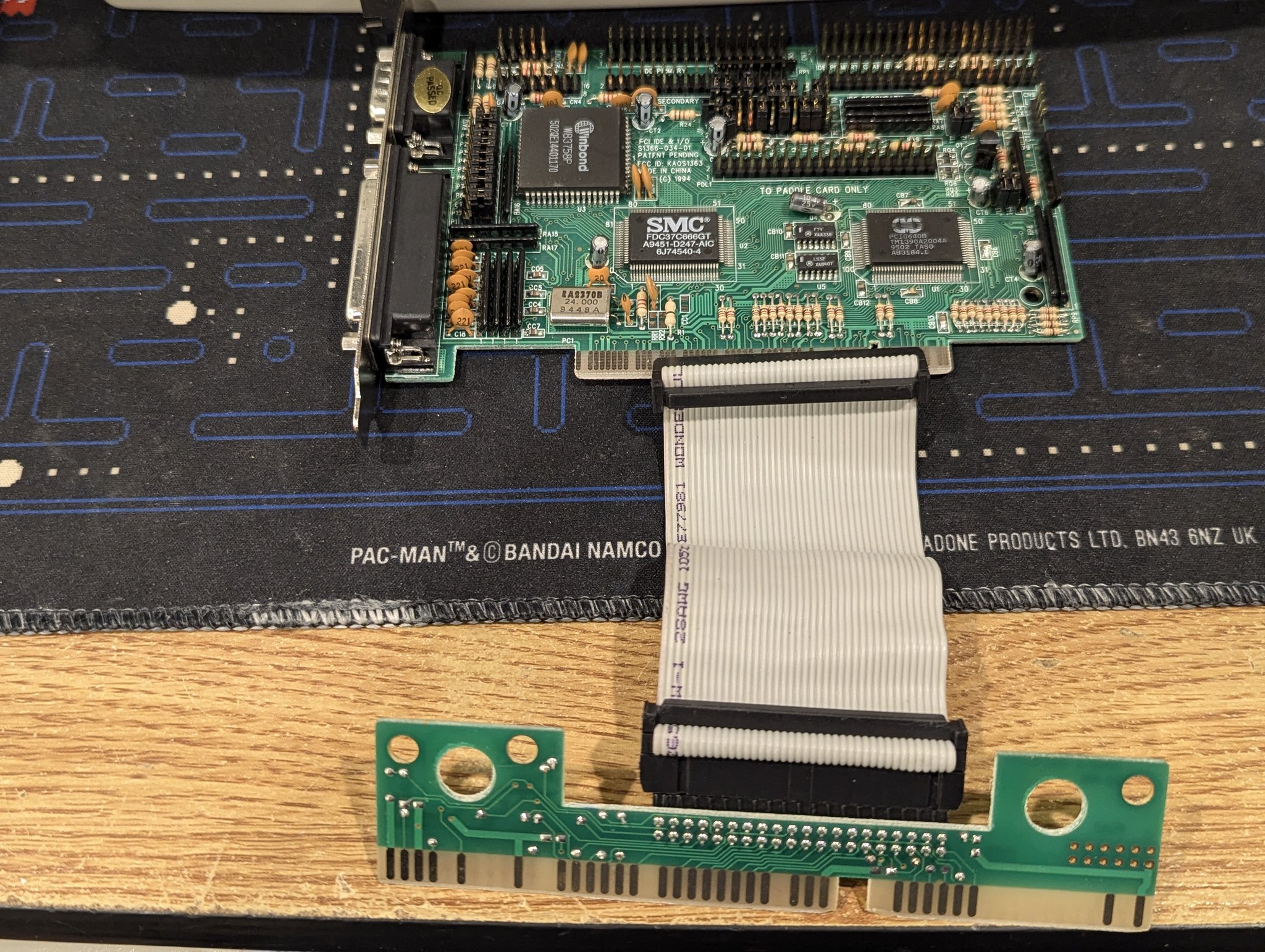

Uses a little risercard that plugs in an ISA slot to function properly

Last updated 2025-02-21T10:51:44Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x SCO Unix - OpenServer Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
Name
Version
1.04
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 1.x SCO Unix - OpenServer Windows 3.1x Windows NT 3.1
Arch
x86
Size
586.7KB
Filename
doc 3 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
1994-09-10
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-10-10
File
Logs
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Horun)
image3 Image 3 of 4 (Horun)
image4 Image 4 of 4 (RetroTechChris)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
