Turtle Beach PINNACLE
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
JMN-TBS-2002
dimDimensions
292mm (length) x 99mm (height)
chip Chips and specs
-> Audio
Philips NE5532 (Operational Amplifier)
MTL
Chip Set Motorola
Data Bus 16-bit ISA
Card Size Full-length, full-height card
Card Type Sound card
I/O Options CD-ROM interface, game/MIDI port, microphone in, line in, line out,Audio in – CD-ROM (2), auxiliary line in, daughter card connector
Maximum Onboard Memory 48MB
portintI/O ports
3x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-01T07:11:36Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.02
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
27.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
45.7KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
1997
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-08-03
File
Logs
Chip
Release date
2015-01
File
Logs
image1 Image 1 of 4 (Microhouse)

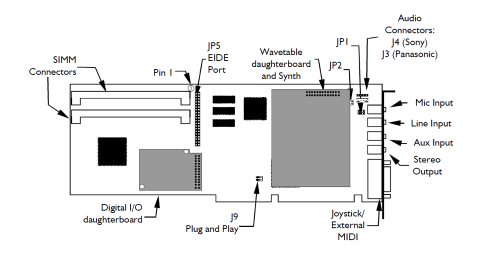

image2 Image 2 of 4 (limsup)

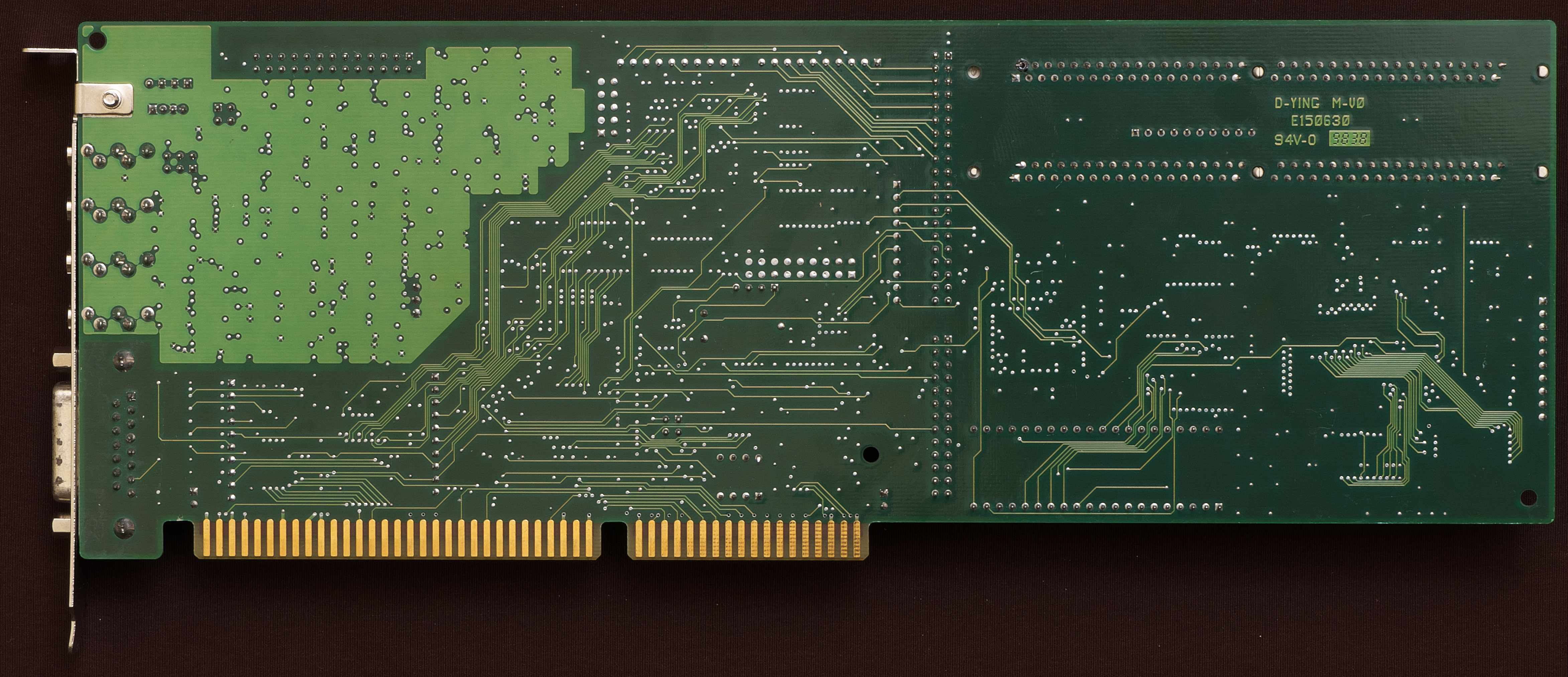

image3 Image 3 of 4 (limsup)

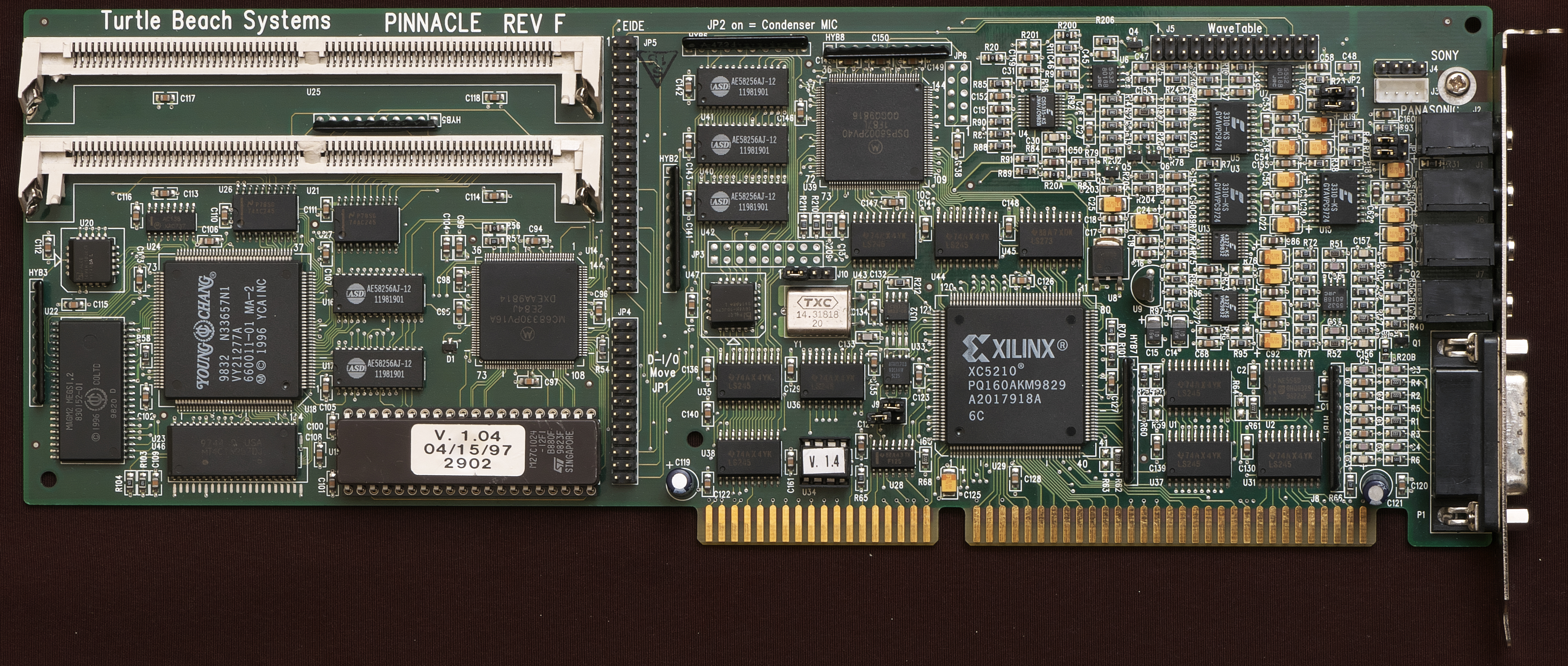

image4 Image 4 of 4 (limsup)
