Turtle Beach DAYTONA PCI
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
CA00
ramRAM type
SRAM
ramRAM size
32KB
chip Chips and specs
-> Audio
S3 86C617 (Sonic Vibes) Philips NE5532 (Operational Amplifier)
MTL
Chip Set Unidentified
Data Bus 32-bit PCI
Card Size Half-length, full-height card
Card Type Sound card
I/O Options CD-ROM interface, game/MIDI port, line in, auxiliary line in, Audio in – CD-ROM, line out, modem in
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
Last updated 2026-01-01T17:28:10Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.01.08
OS support
Windows 9x
Arch
x86
Size
6.5MB
Filename
Name
Version
v4.10.00.1102-1.01.03_12.17.97
OS support
MS-DOS Windows 9x Windows NT 4.0
Arch
x86
Size
56.6MB
Filename
Name
Version
4.03.1100-1.00.09
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
2.8MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-08-03
File
Logs
Chip
Release date
1997-03
File
Logs
Chip
Release date
2015-01
File
Logs

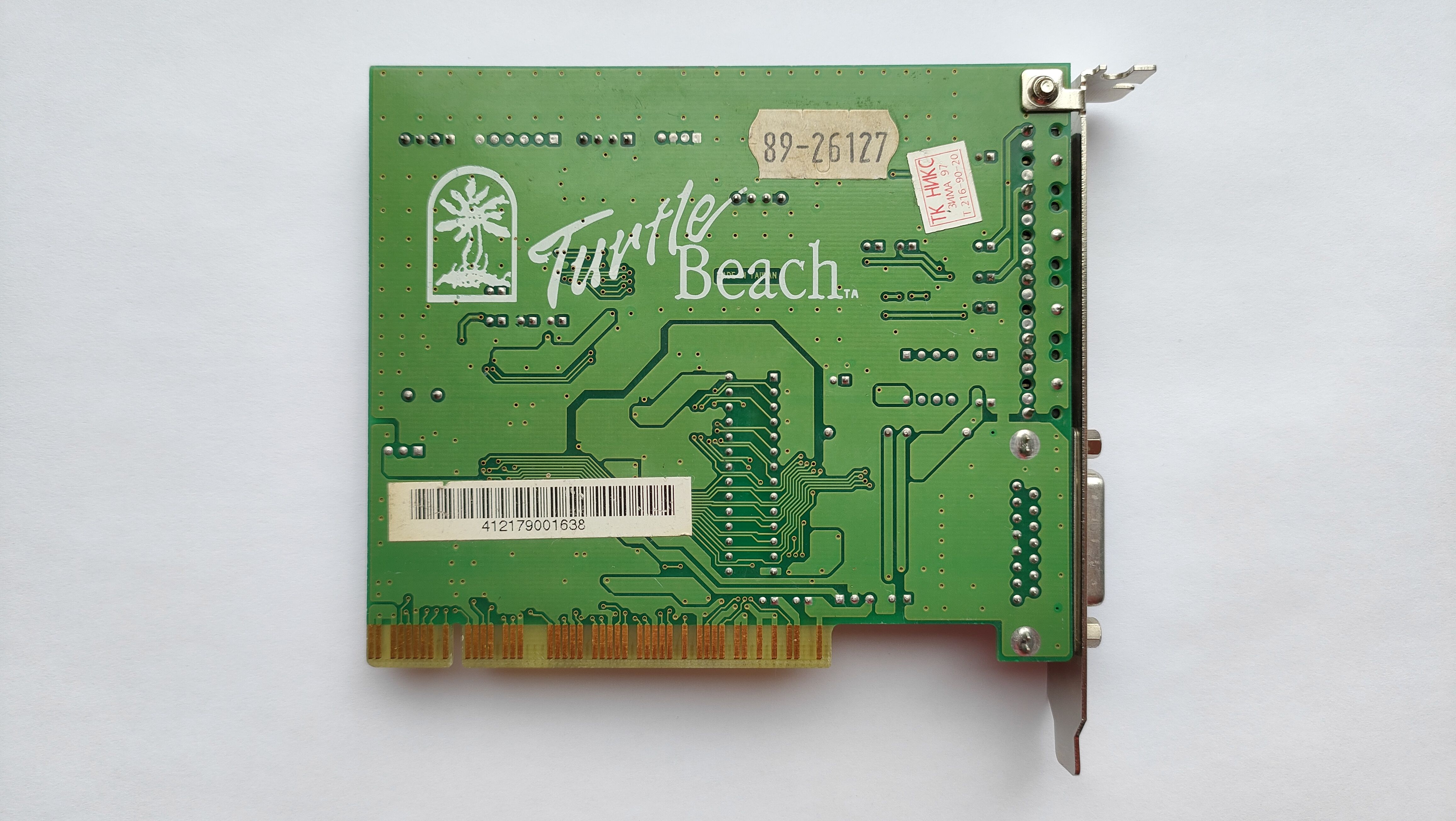

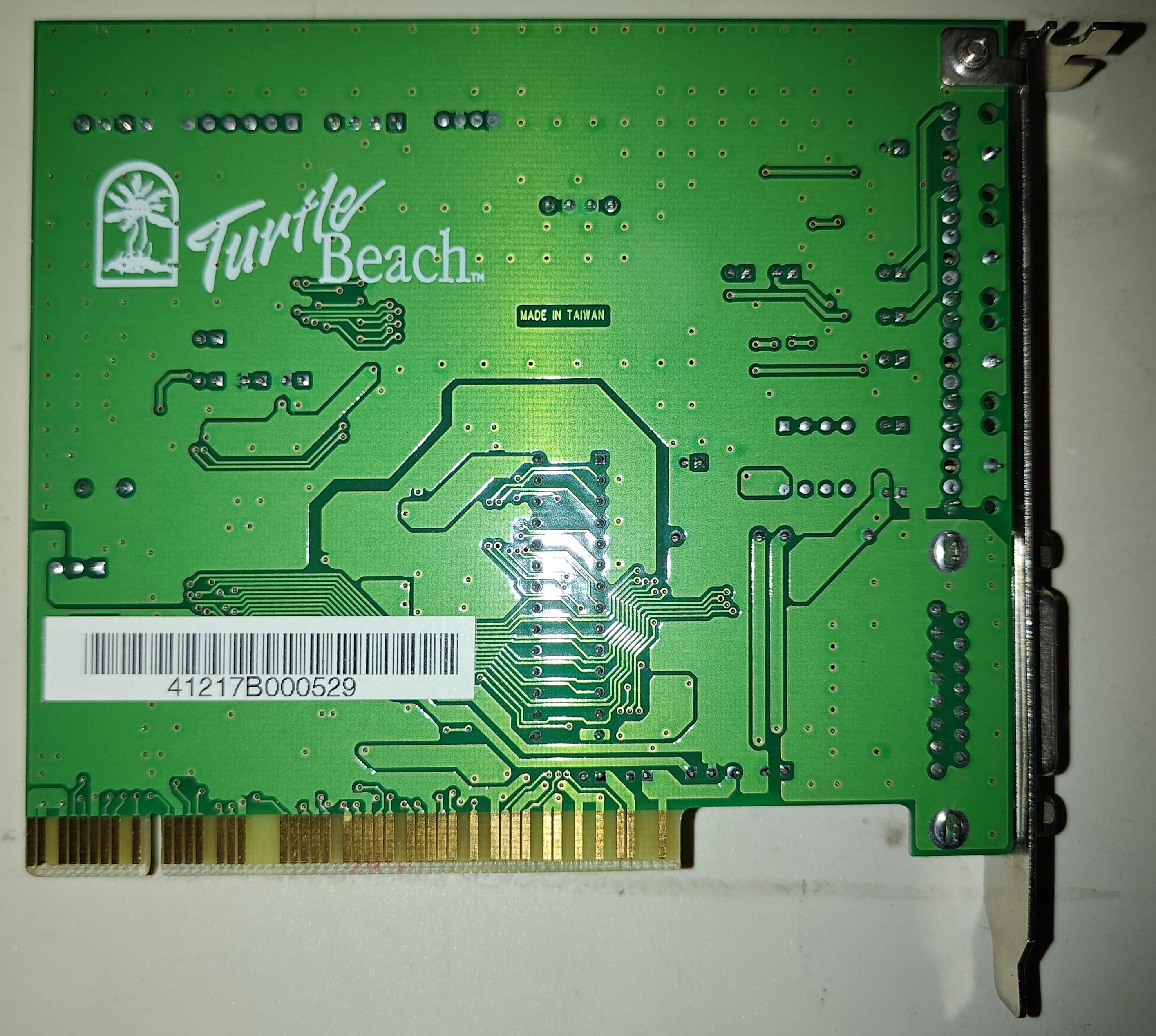

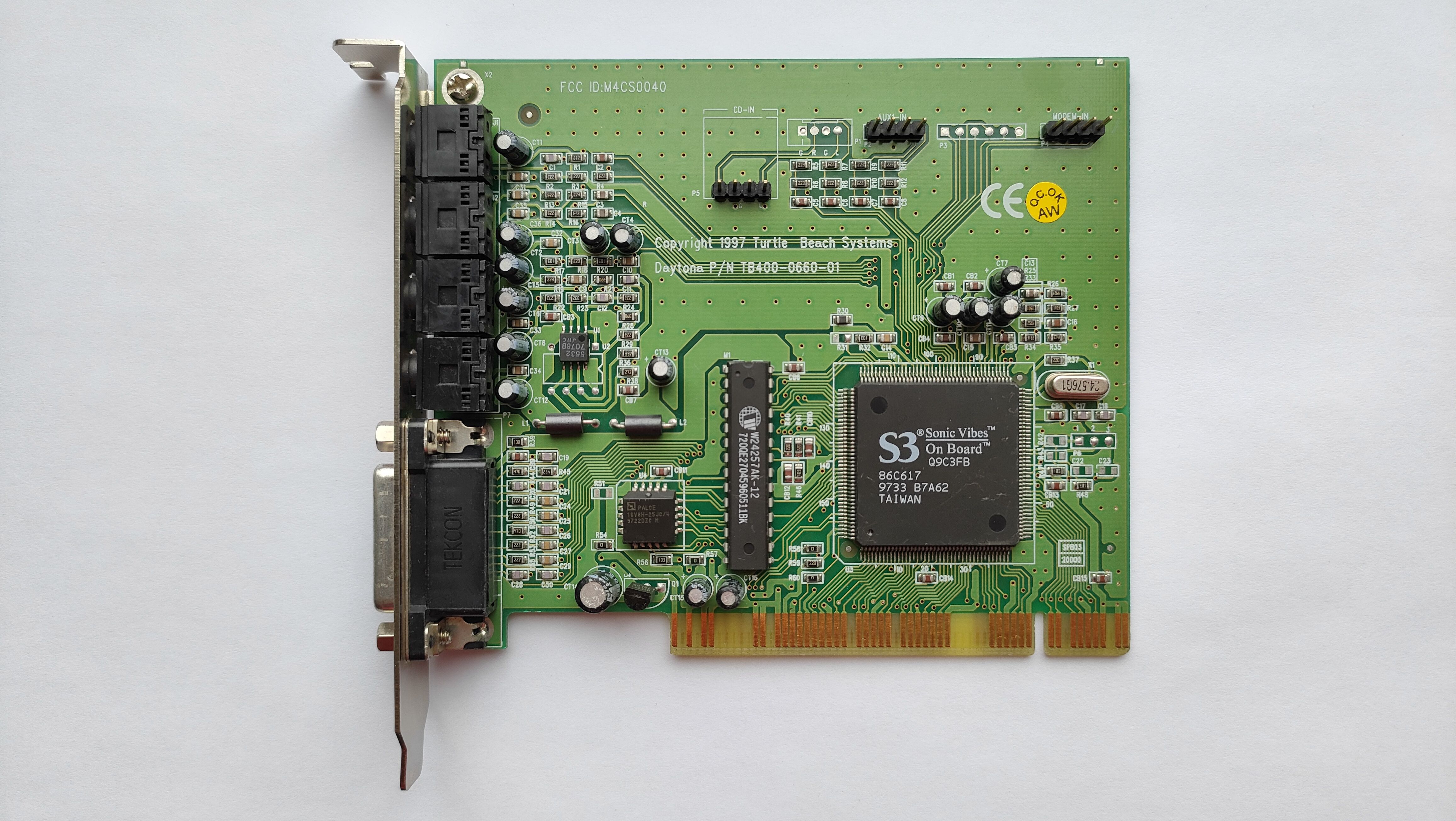

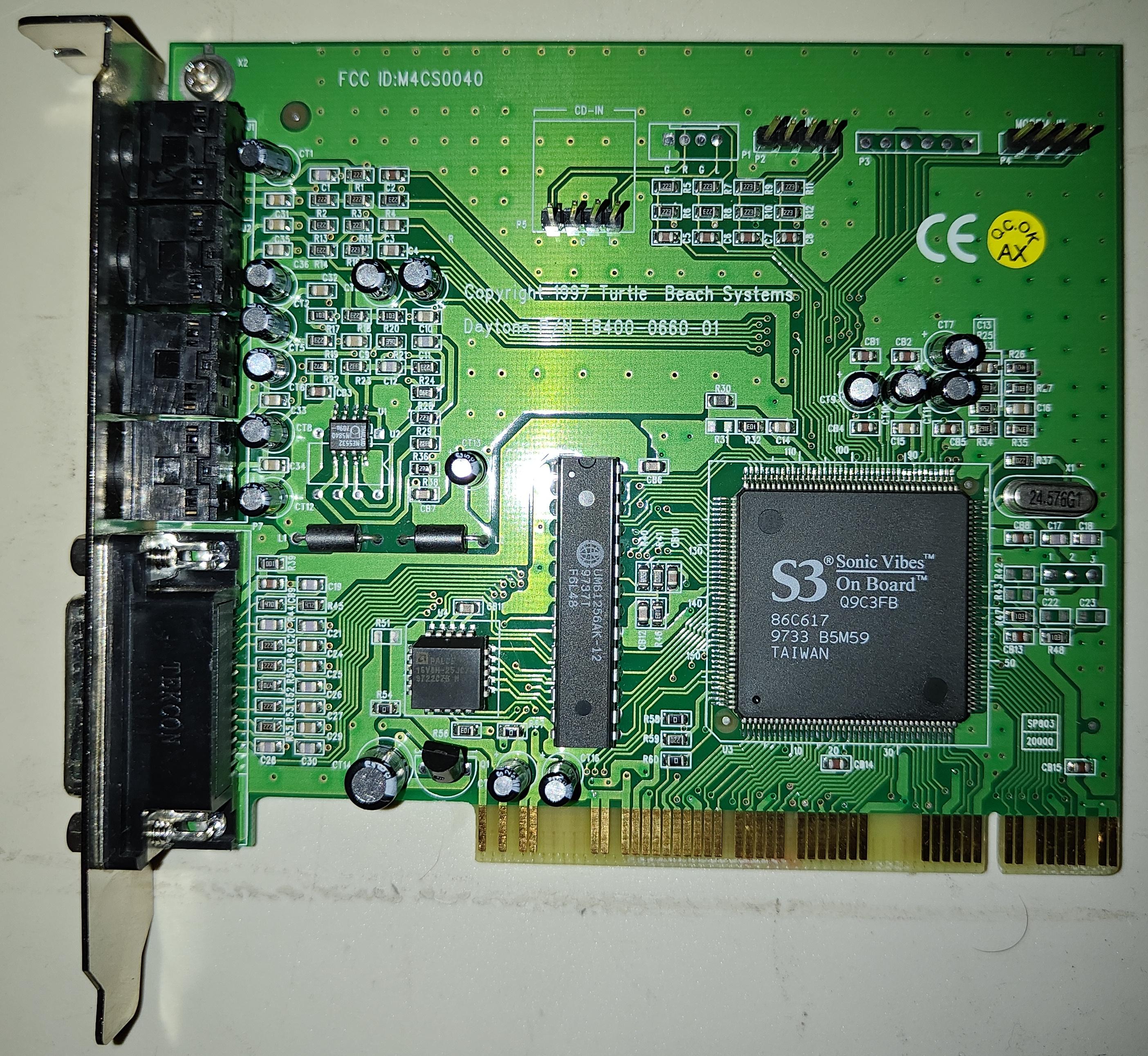

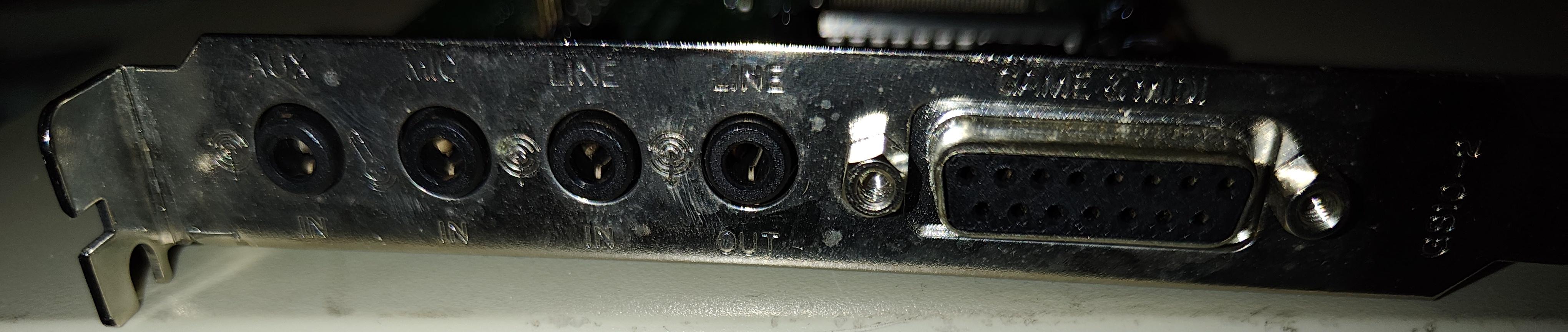

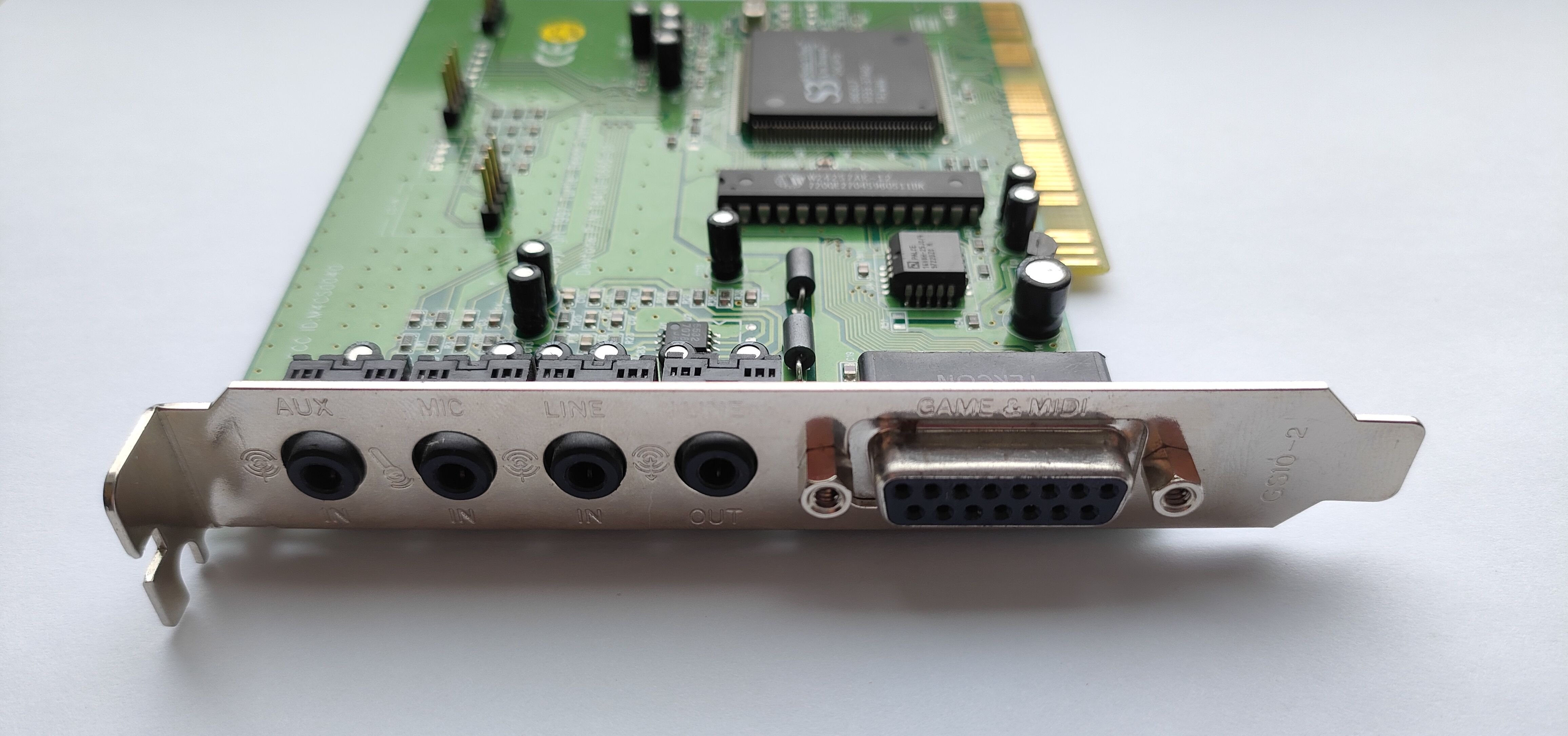

image1 Image 1 of 7 (evasive)
image2 Image 2 of 7 (crizalis)
image3 Image 3 of 7 (kothnaaken)
image4 Image 4 of 7 (crizalis)
image5 Image 5 of 7 (kothnaaken)
image6 Image 6 of 7 (crizalis)
image7 Image 7 of 7 (kothnaaken)
