Trident 7137 REV H1
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HNG890CL-BBD1TIA1
ramRAM type
DRAM
ramRAM size
512KB1MB256KB
chip Chips and specs
-> RAMDAC
Trident TKD8001
-> Video
Trident TVGA8900D
MTL
Highest Resolution Supported 1024 x 768
  • Memory Supported: 256kB, 512kB
tag Also known as
  • Unknown TRIDENT 8900D MKIIA VGA
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-09T18:24:32Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
07/12/93 C4.3
Note
odd-even split
File
Logs
Version
01/28/94 C4.5
Note
zip file with odd, even, odd/even@4000h, and merged ROMs
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
07/12/93 C4.3
Note
File
Logs
Version
01/28/94 C4.5
Note
zip file with odd, even, odd/even@4000h, and merged ROMs
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-02
File
Logs

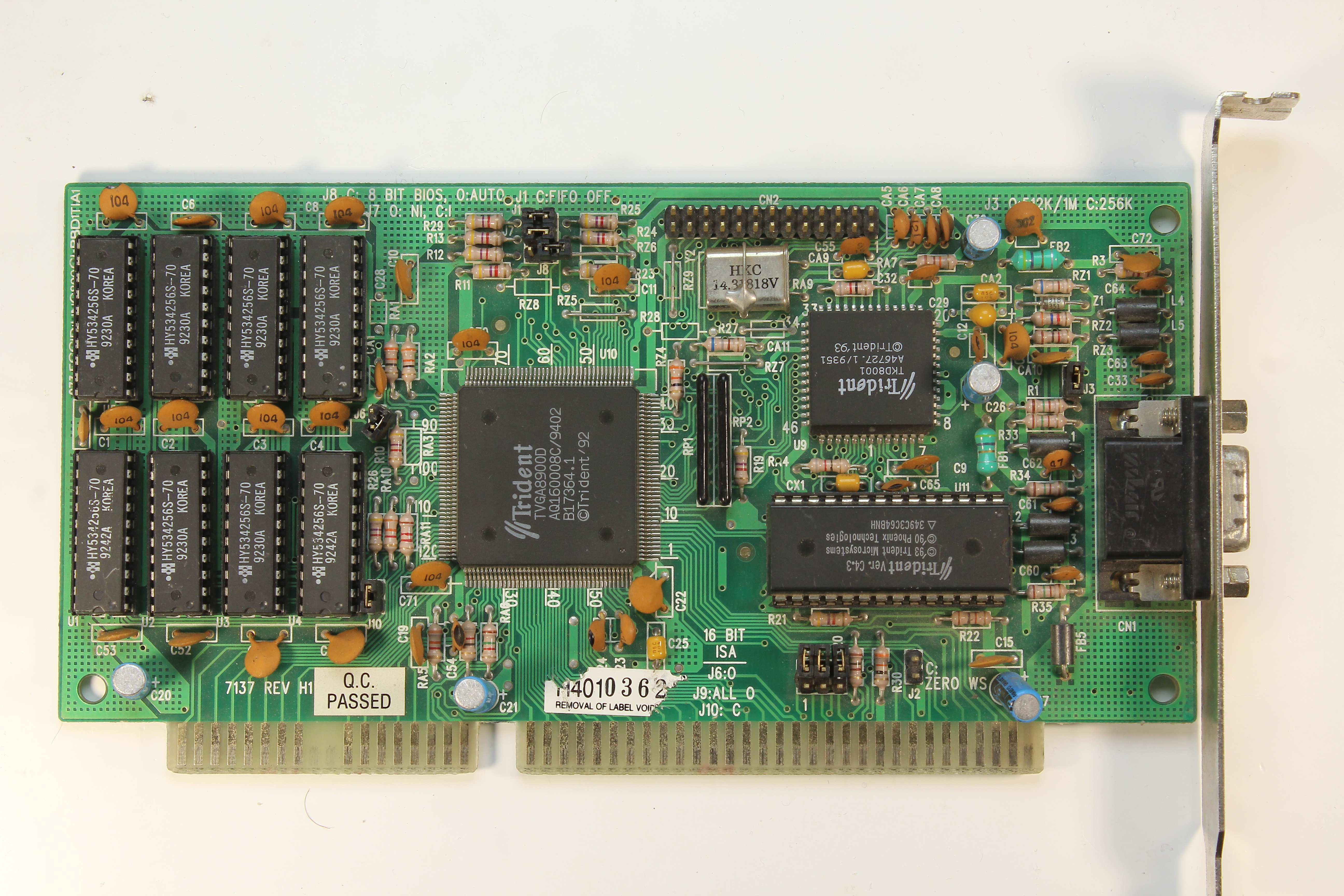

image1 Image 1 of 3 (Microhouse)

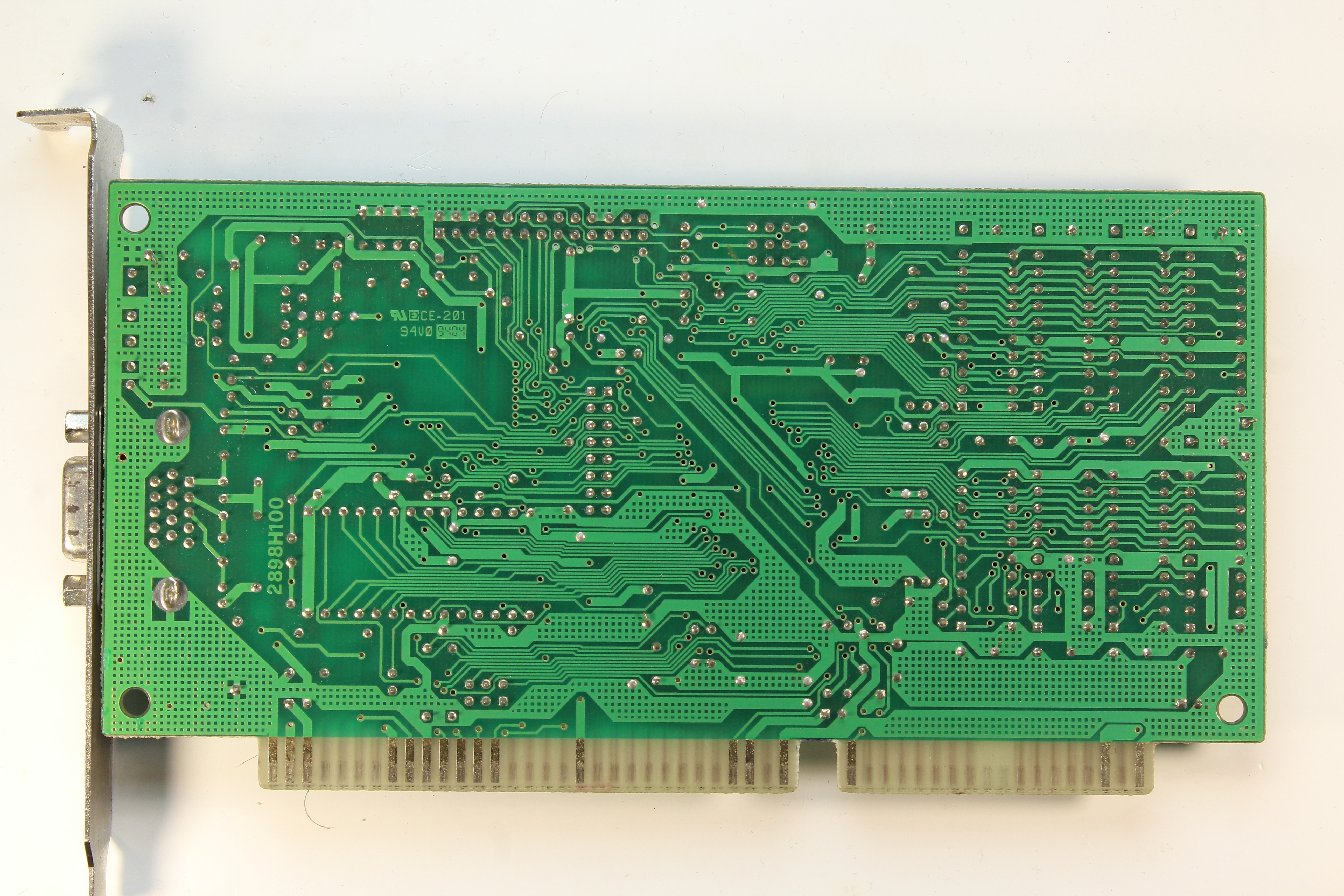

image2 Image 2 of 3 (computerguy096)

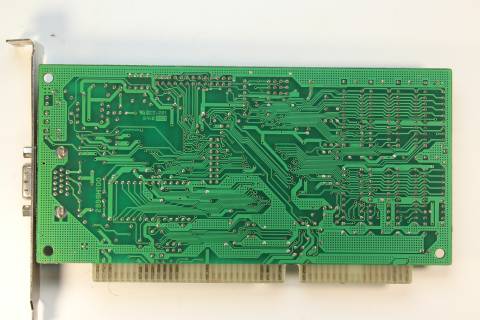

image3 Image 3 of 3 (computerguy096)
