TK TK-85C408-D03A
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HBQUMC408D03A
ramRAM size
1MB
chip Chips and specs
-> Clock Synth / PLL
UMC UM9502
-> RAMDAC
UMC UM70C178
-> Video
UMC UM85C408
MTL
Category Video
Memory Type DRAM
Data Bus Type 16-bit ISA
Video Processor UMC
Video Types Supported XVGA
Maximum Onboard Memory 1024KB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-08-07T16:33:13Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.0 Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Name
Version
1.0
OS support
Linux (Kernel version 2.2.x) Linux (Kernel version 2.4.x)
Arch
x86
Size
2.5MB
Filename
doc No card documents available

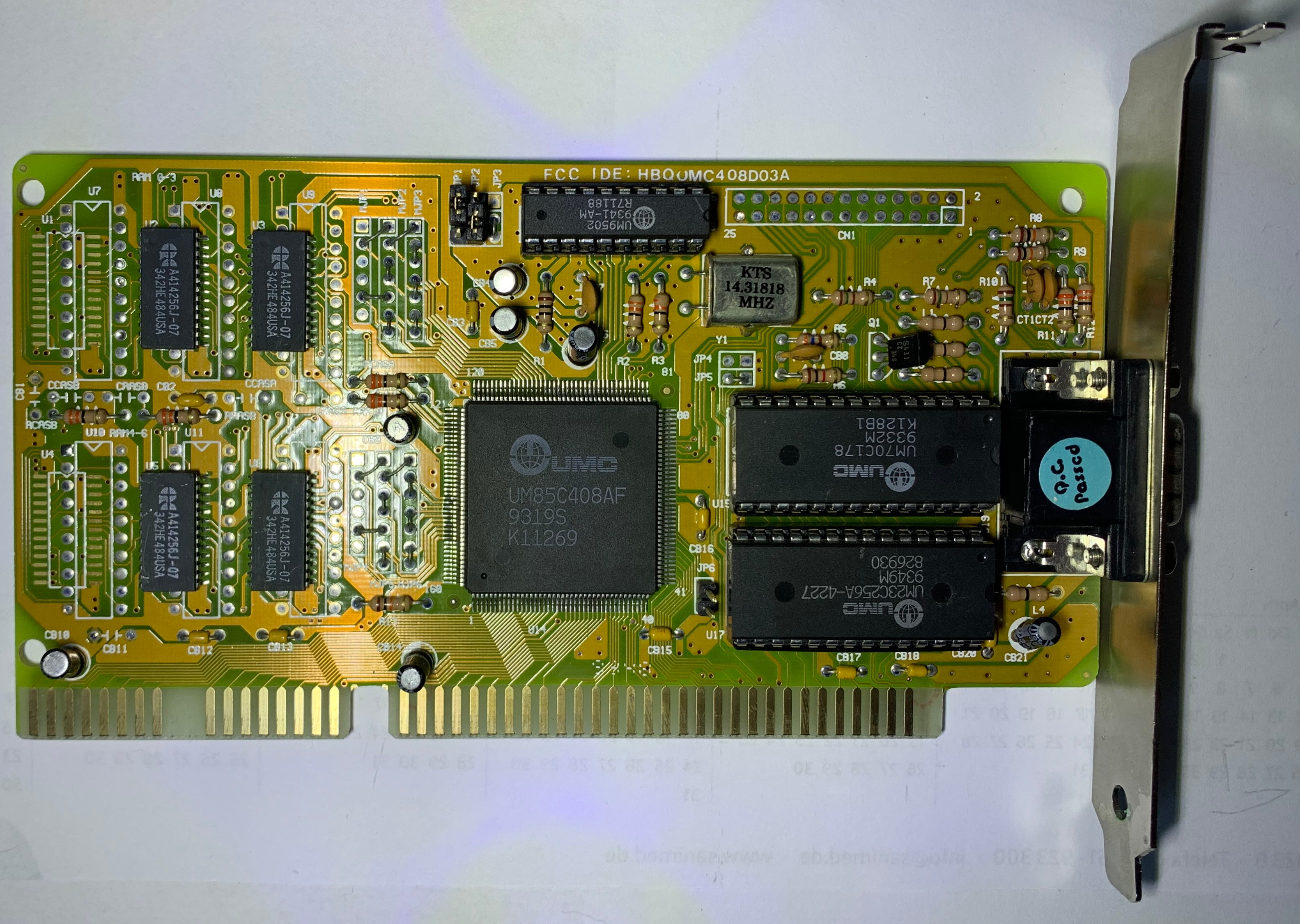

image1 Image 1 of 4 (CircusCat)

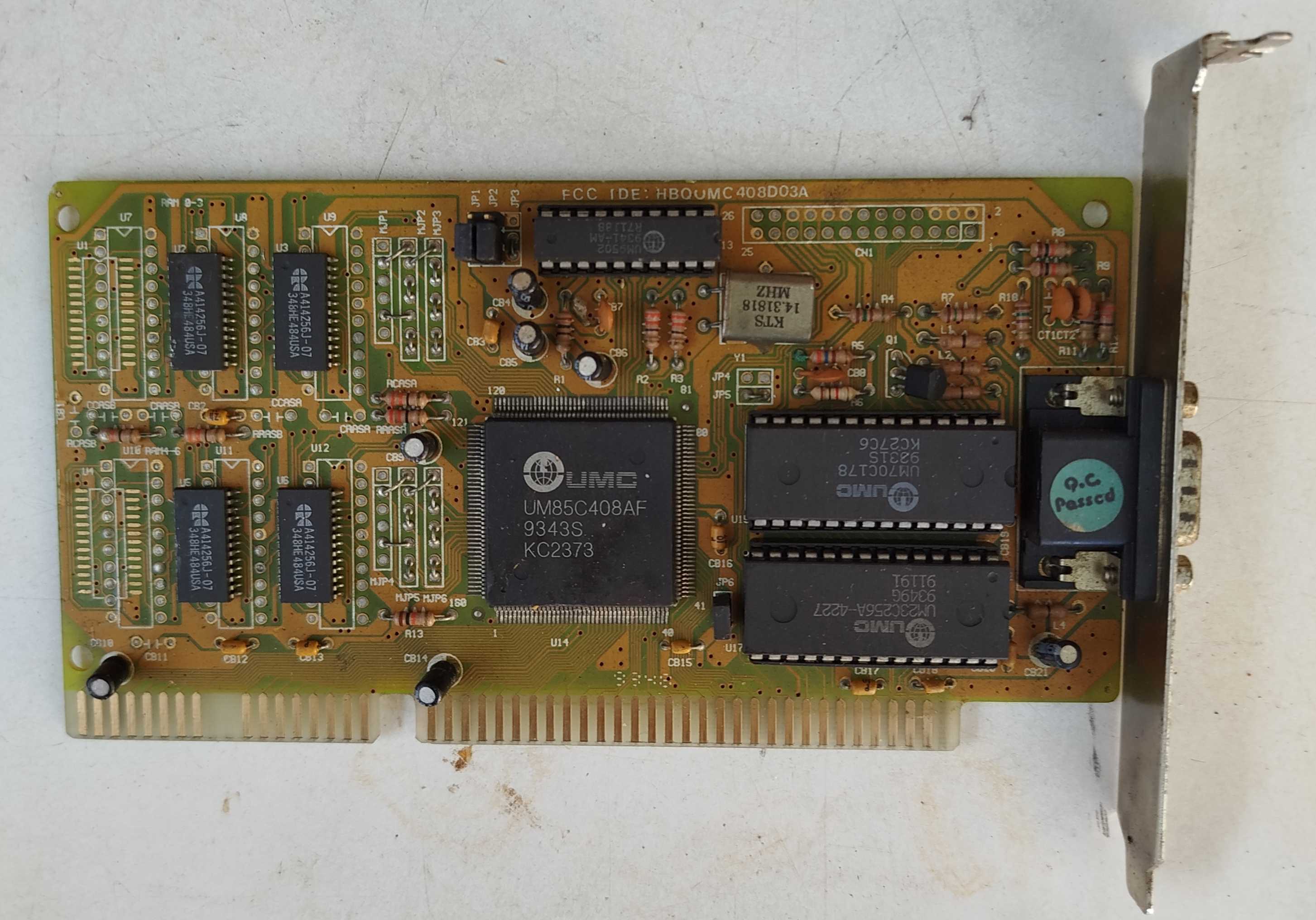

image2 Image 2 of 4 (Elke Wehmer)

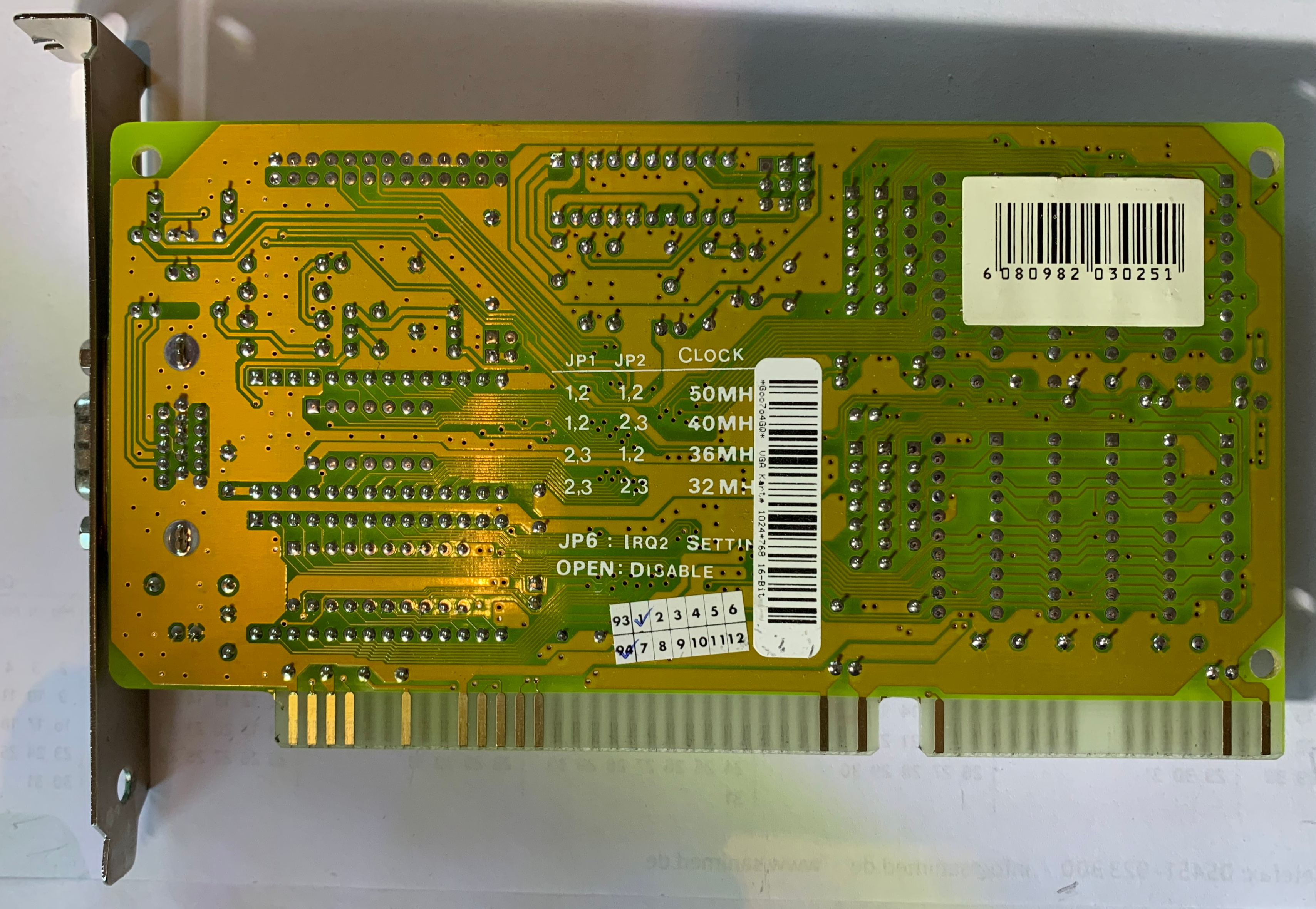

image3 Image 3 of 4 (CircusCat)

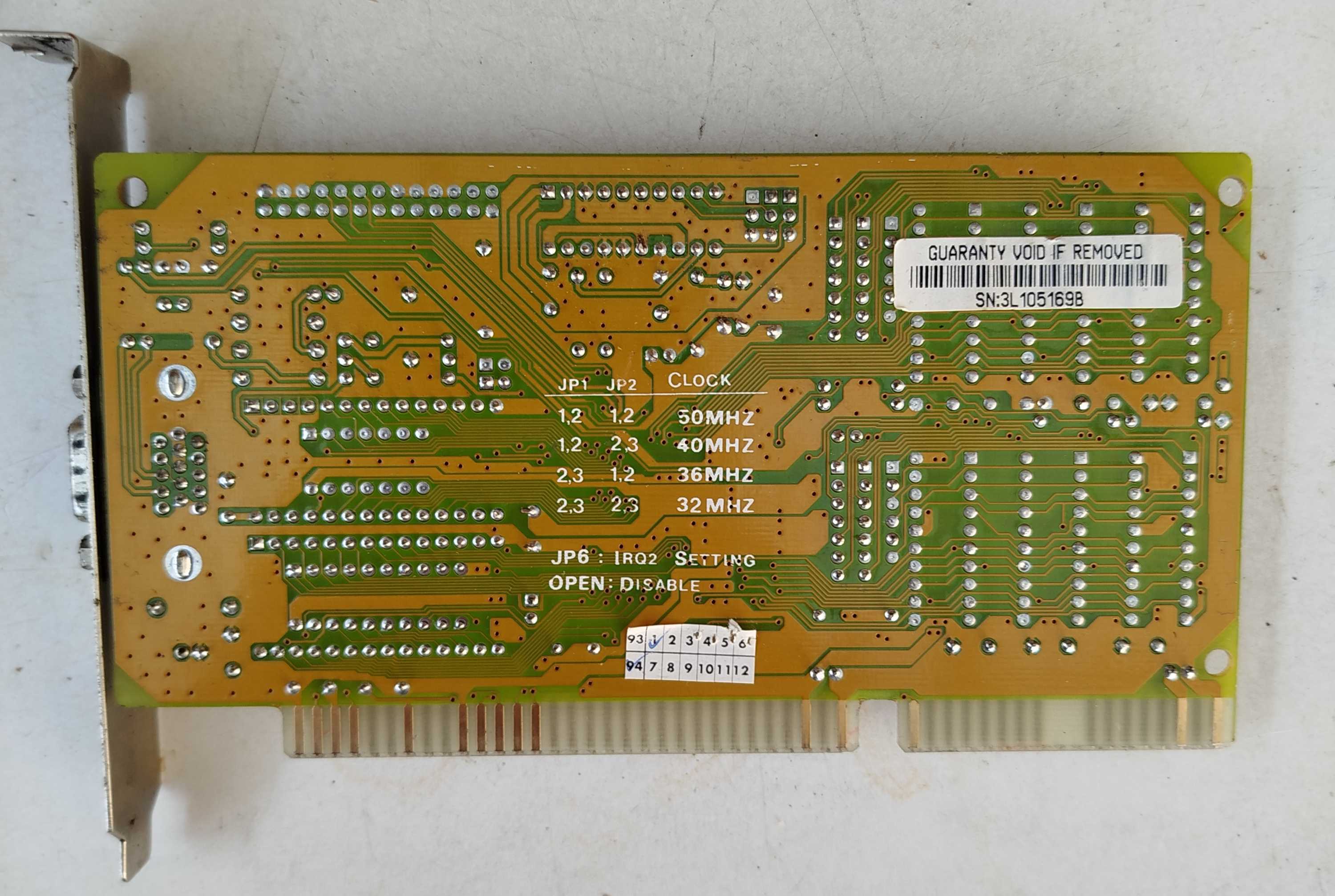

image4 Image 4 of 4 (Elke Wehmer)
