Texas Instruments ASSY2566755
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
1MB
chip Chips and specs
-> Processor
Texas Instruments TMS34010
-> RAMDAC
Brooktree Bt477 (RAMDAC)
-> Video
Headland HT208/C Texas Instruments TMP34092PQL-64 (VGA Interface)
MTL
Data Bus 16-bit ISA
Card Type Video card
Video Chip Set Advance Micro Technology
Maximum Video Memory 1MB RAM (location unidentified)
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
tag Also known as
portintI/O ports
1x
  • DE-15
powerPower connectors
Empty
notes Notes

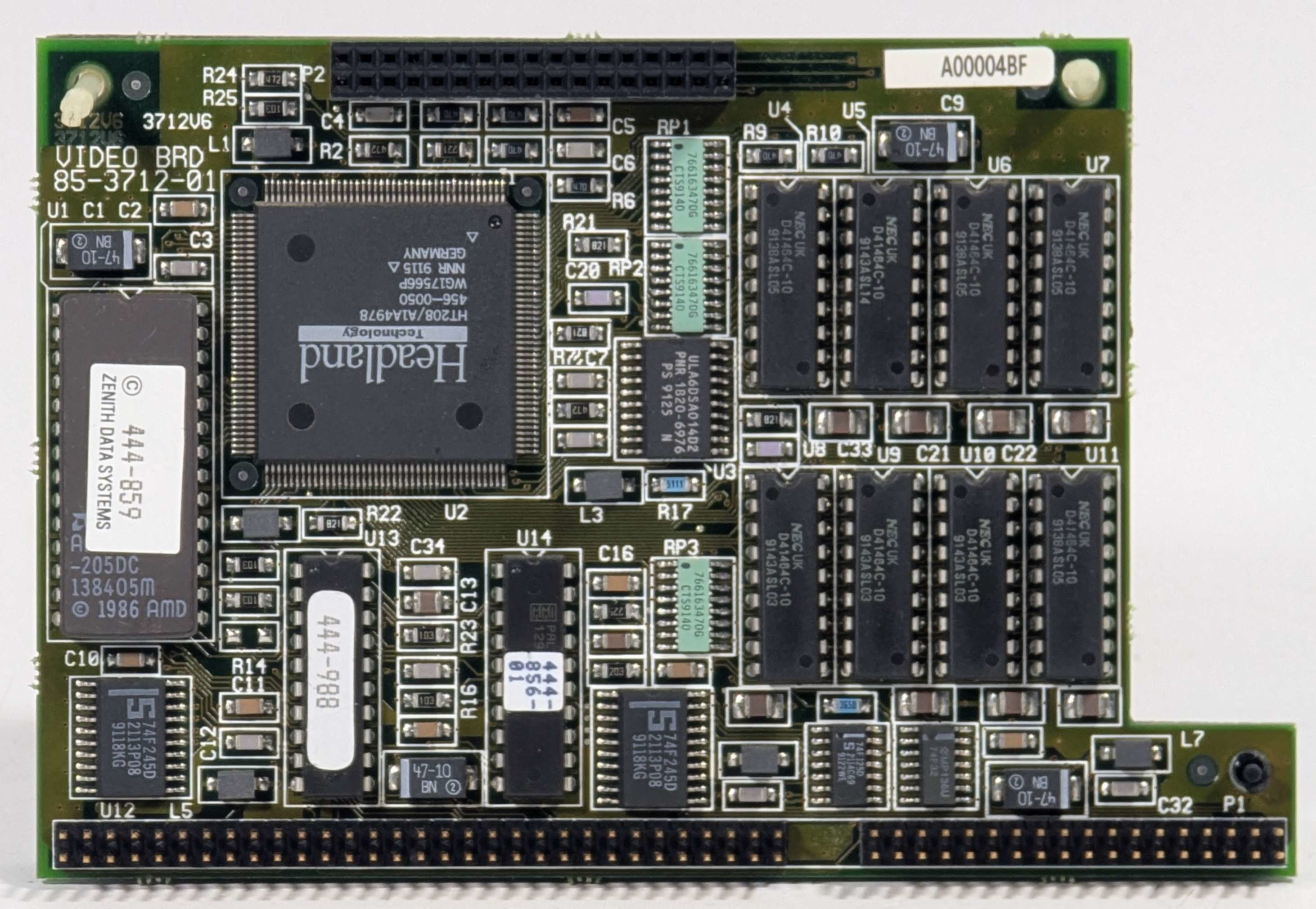

From a ZDS system. Daughterboard has an HT208 chip.

Last updated 2025-06-29T14:57:45Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1986
File
Logs

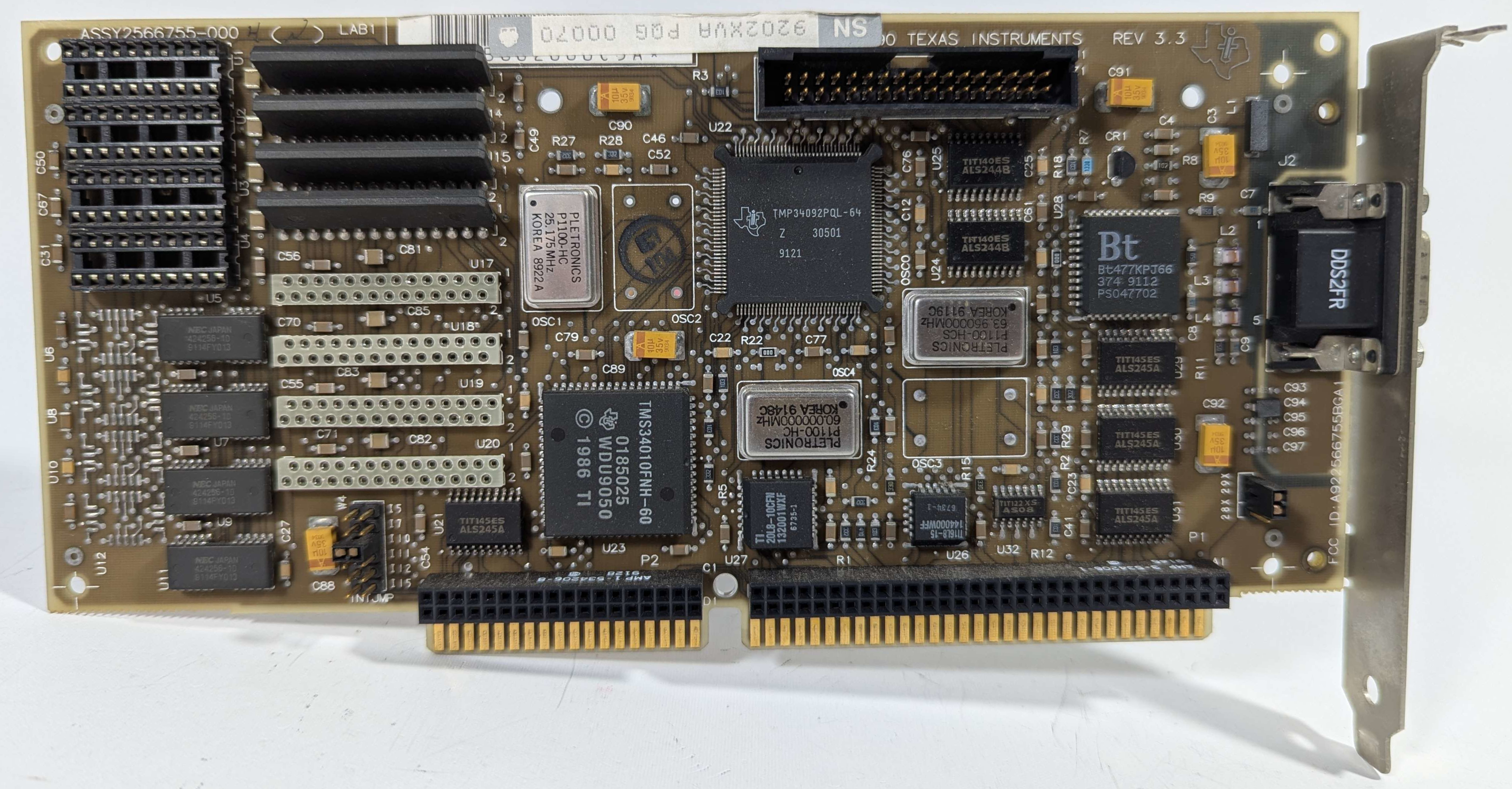

image1 Image 1 of 4 (Andrew Spode)

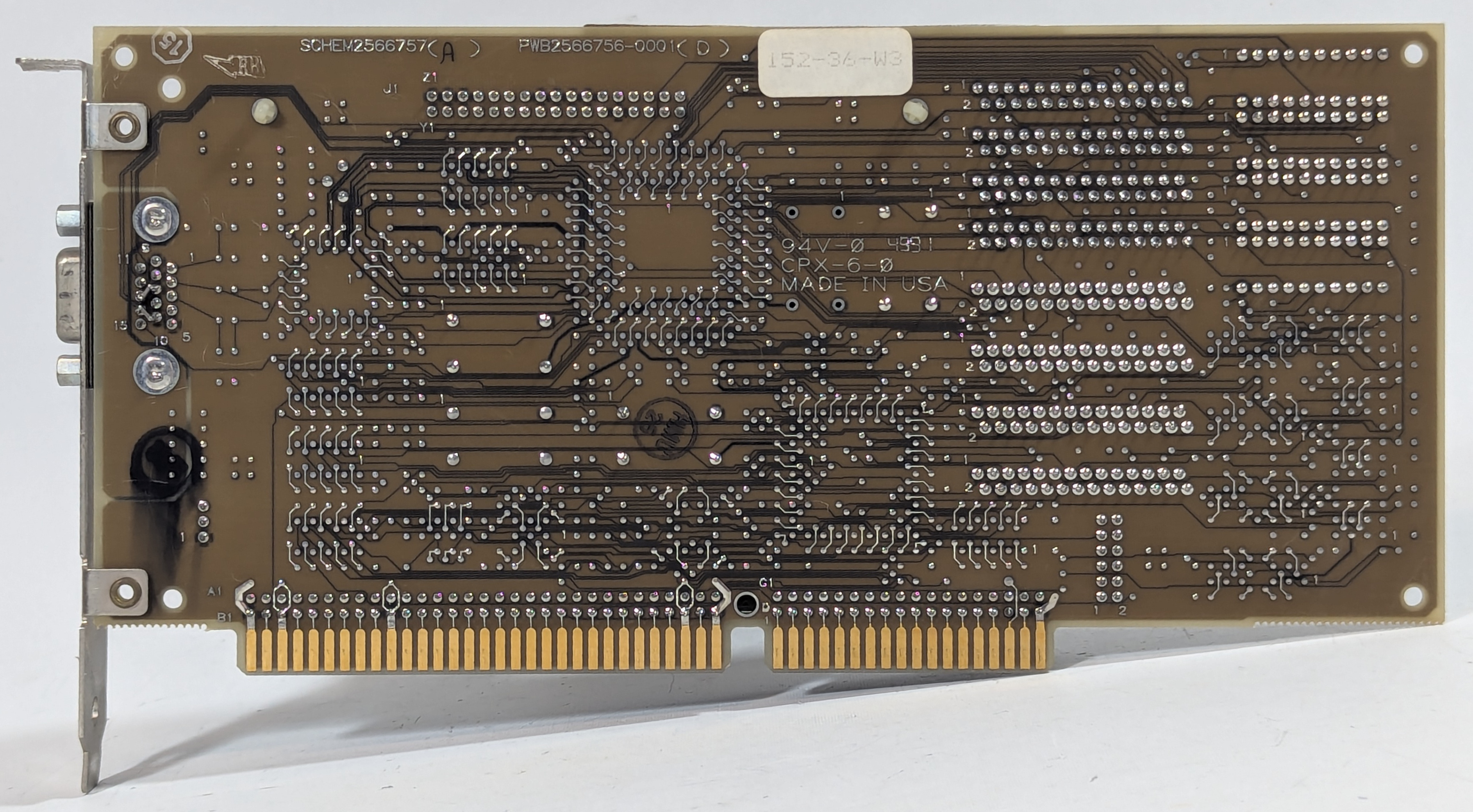

image2 Image 2 of 4 (Andrew Spode)

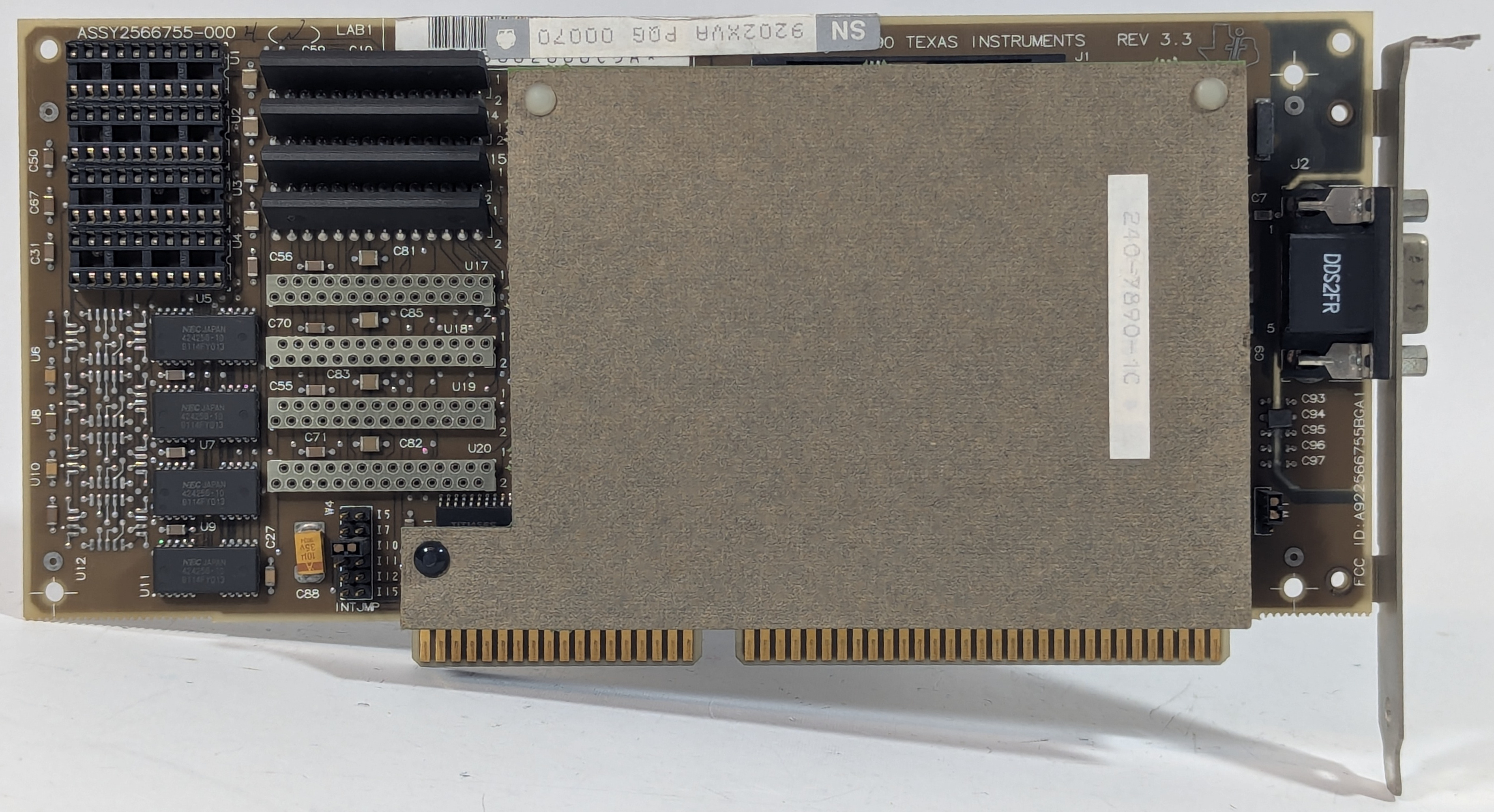

image3 Image 3 of 4 (Andrew Spode)
image4 Image 4 of 4 (Andrew Spode)
