Terratec Promedia Base 64 ISA
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Analog Devices AD1816A (SoundPort "Yellow Coral")
MTL
Chip Set Analog Devices
Data Bus 16-bit ISA
Card Size Half-length, half-height card
Card Type Sound card
I/O Options Wavetable connector, audio in - CD-ROM (3), line out (2), line in (2), microphone in (2), game/MIDI port
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-02T18:50:20Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
114.1KB
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
2.02c
OS support
Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
110.1KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

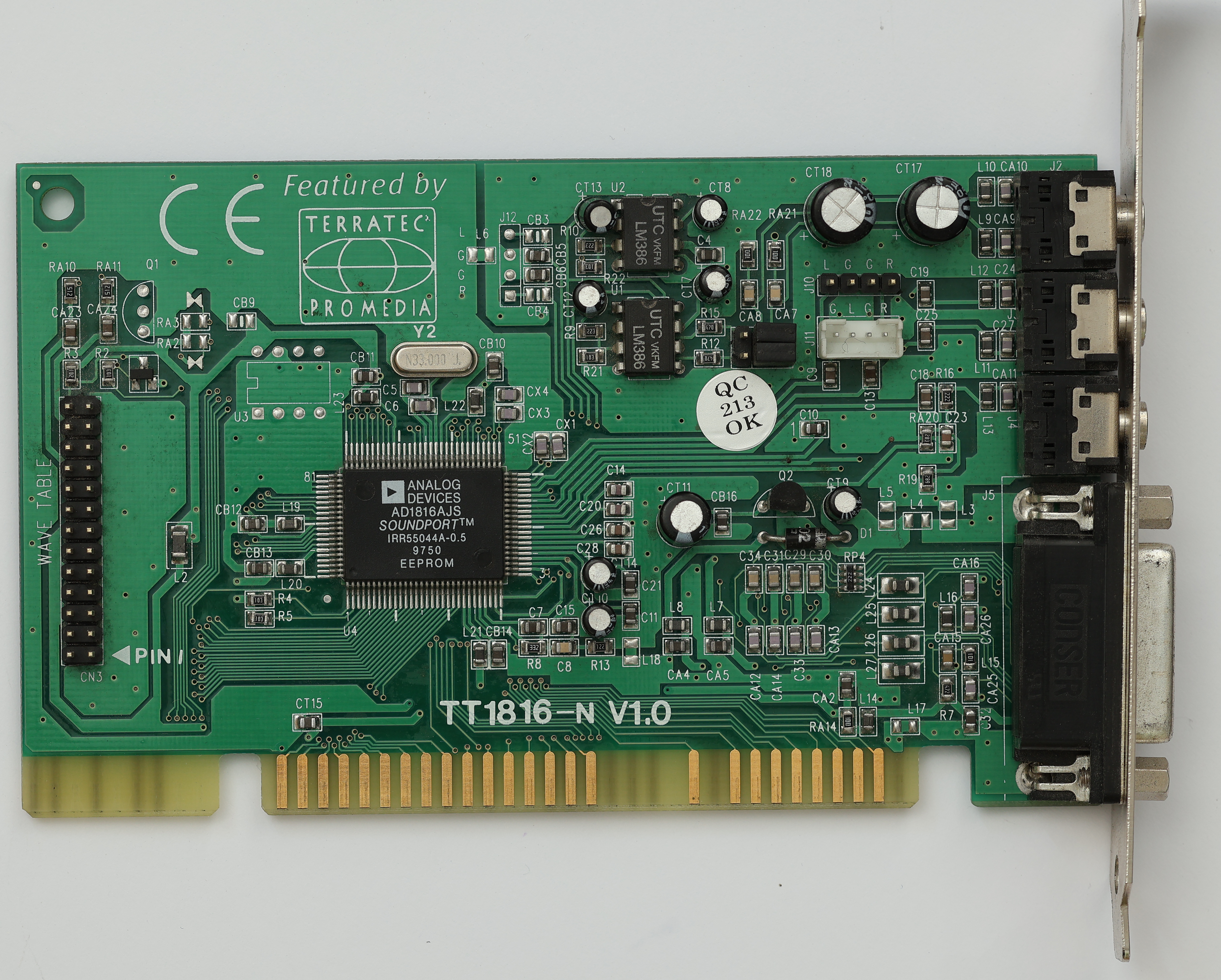

image1 Image 1 of 2 (Hias1000)
image2 Image 2 of 2 (Hias1000)
