Tempustech VMAX MIO116
Logs
Type
Floppy controller
Multi I/O
IDE controller
Interface
Signaling
16-bit ISA
Slot height1
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Data Bus | 16-bit ISA |
| Card Size | Half-length, full-height card |
| Card Type | Hard drive controller card |
| Hard Drives supported | Four EIDE drives |
| Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Also known as
- Tempustech VMAX MIO116-5V
I/O ports
1x
- 2x17 2.54mm pin header, FDD
2x
- 2x20 2.54mm pin header
1x
- DB-25, ECP/EPP
1x
- 2x13 2.54mm pin header, ECP/EPP
1x
- DE-9, RS-232
3x
- 2x5 2.54mm pin header, RS-232
Power connectorsEmpty
Notes
The MIO116-5V has two additional features. 1) One of the serial ports can be configured as RS232, RS422 or RS485. 2) The board operates on +5V DC only (it generates its own +12V DC).
Last updated 2025-06-20T14:34:11Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

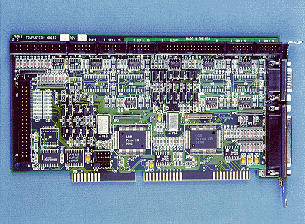

Image 1 of 1 (Tempustech)
