TeleVideo (TVS) TeleWave Q32/3D
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
OPTi 82C931 (OPTIFM) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) AdMOS QS1000 (Wavetable Synthesizer)
-> ROM
AdMOS QS1001A (4Mbit Sample ROM)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Card Type Sound card
I/O Options Speaker/Line out, Line in, Microphone jack, CD audio in, CD-ROM interface, Game/MIDI port, Telephony, MPEG
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
3x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T22:39:19Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-08-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs
image1 Image 1 of 4 (Microhouse)

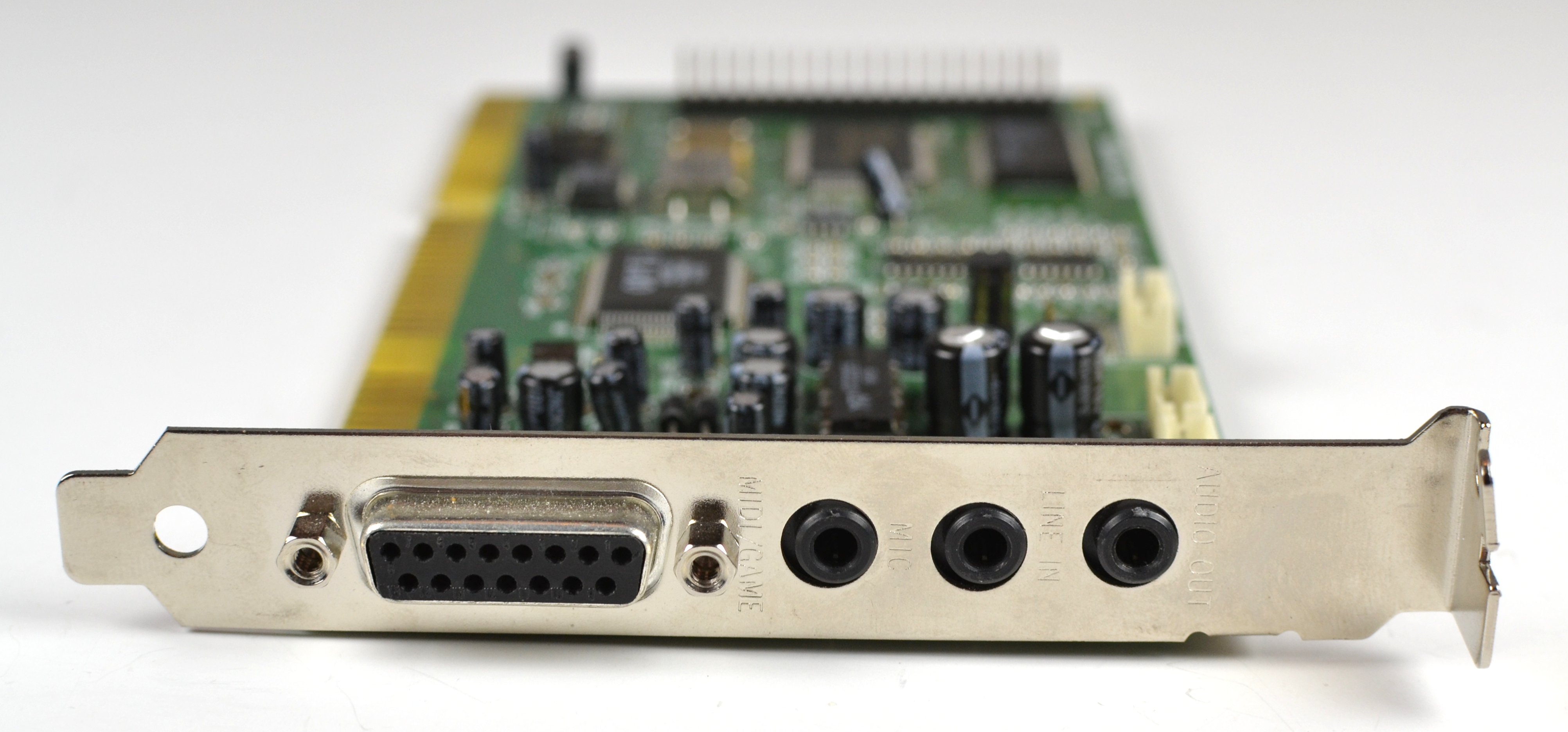

image2 Image 2 of 4 (PancakePuppy)

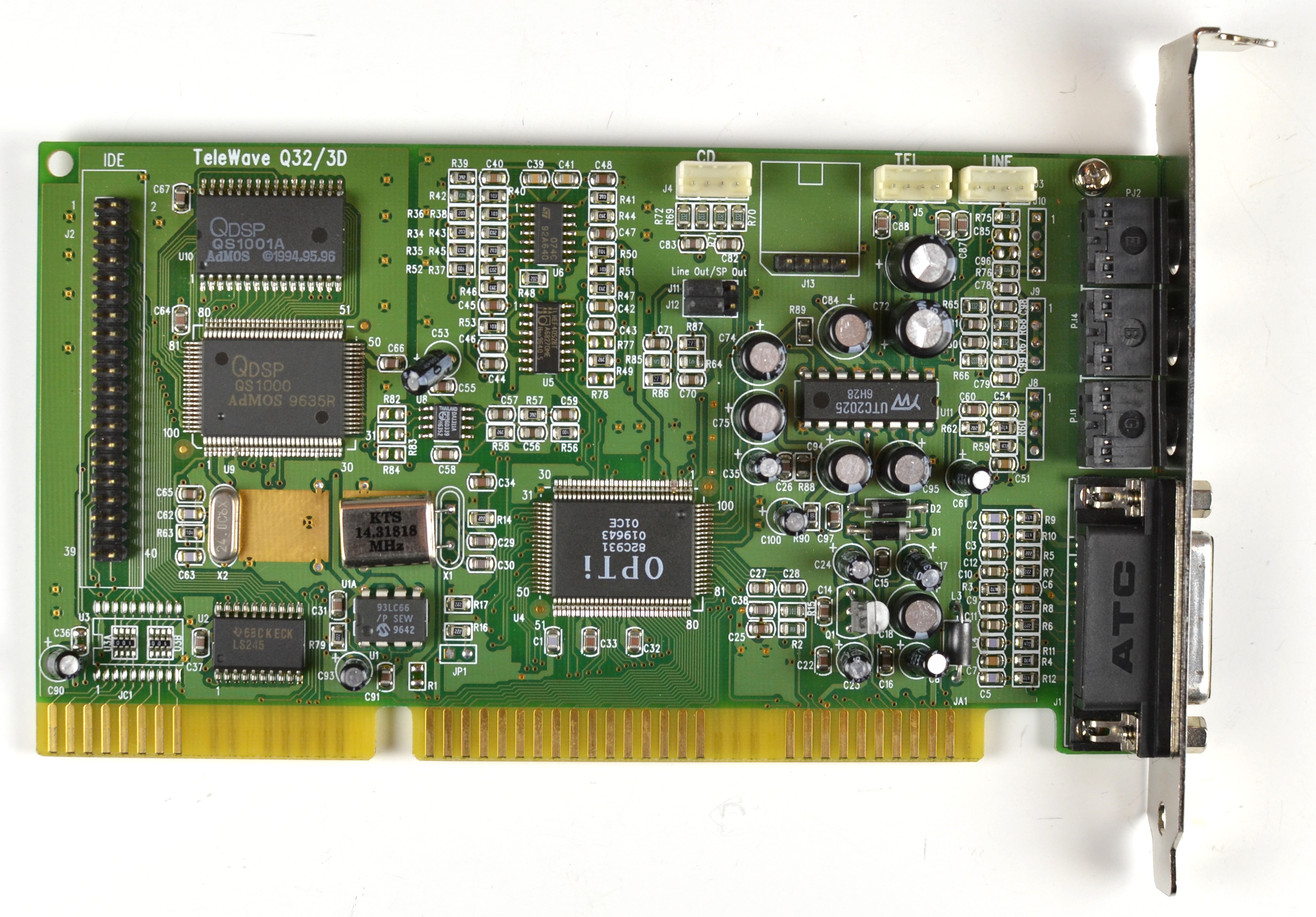

image3 Image 3 of 4 (PancakePuppy)

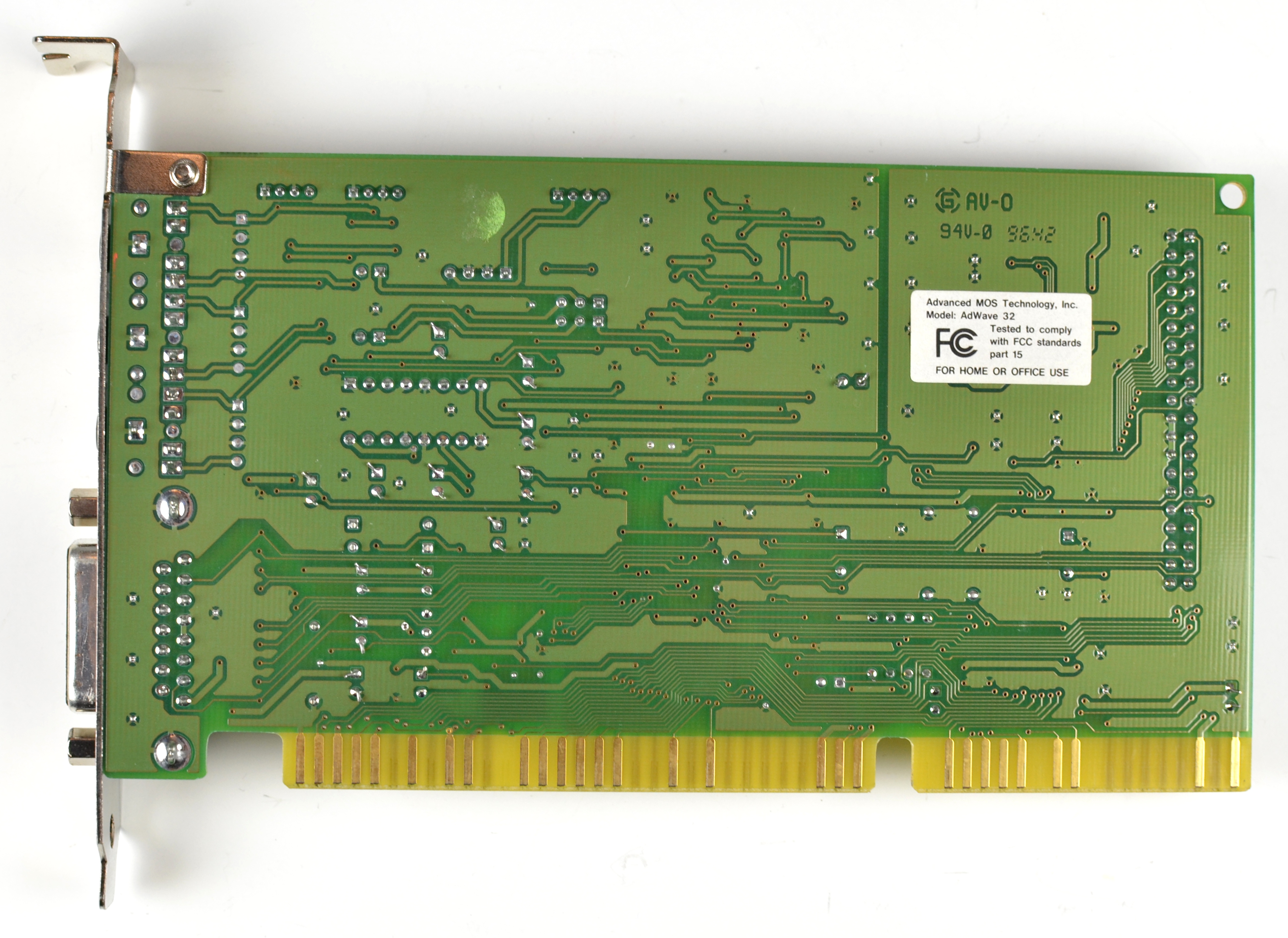

image4 Image 4 of 4 (PancakePuppy)
