Tekram DC-880B
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
ramRAM type
30-pin SIMM
ramRAM size
16MB
chip Chips and specs
-> Processor
Intel 80186-16 (N80C186-16)
-> SCSI ctrl.
NCR NC53CF94 Tekram TRM8808
MTL
Size: Full-length, half-height card
Data bus: 32-bit VL-Bus
HadProblem
Hard drive supported: Up to seven SCSI drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB, or 2.88MB drives
Microarchitecture
CPUID
Process node
Core
Bus speed 16MHz
Frequency 16MHz
Multiplier 1x
Power
Voltage 5V
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x25 2.54mm pin header
1x

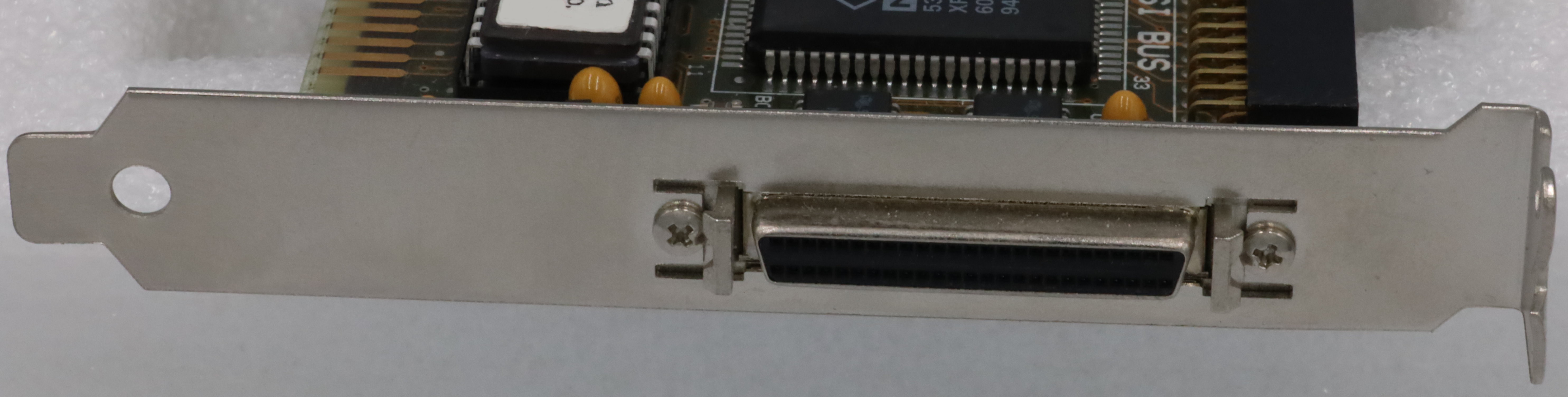

  • SCSI HD50
powerPower connectors
Empty
Last updated 2025-07-11T08:12:55Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V1.23
Note
Tekram DC-880B
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1992-09
File
Logs
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Carsten Braeuer)
image3 Image 3 of 4 (Carsten Braeuer)
image4 Image 4 of 4 (Carsten Braeuer)
