Tekram DC-820
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
32-bit EISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
30-pin SIMM
ramRAM size
16MB
chip Chips and specs
-> Bridge Interface
Intel 82355 (Bus Master Interface Controller)
-> Floppy ctrl.
National Semiconductor PC8477 (Floppy controller)
-> Processor
Intel 80186-16 (N80C186-16)
-> SCSI ctrl.
QLogic FAS216
MTL
Size: Full-length, full-height card
Data bus: 32-bit, EISA
HadProblem
Hard drive supported: Up to seven SCSI devices
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
Microarchitecture
CPUID
Process node
Core
Bus speed 16MHz
Frequency 16MHz
Multiplier 1x
Power
Voltage 5V
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
Empty
Last updated 2024-12-26T16:43:54Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-09
File
Logs
Chip
Release date
1994-05
File
Logs
Chip
Release date
1996-10-04
File
Logs
Chip
Release date
1990-02
File
Logs
Chip
Release date
1993-08
File
Logs
image1 Image 1 of 4 (Microhouse)

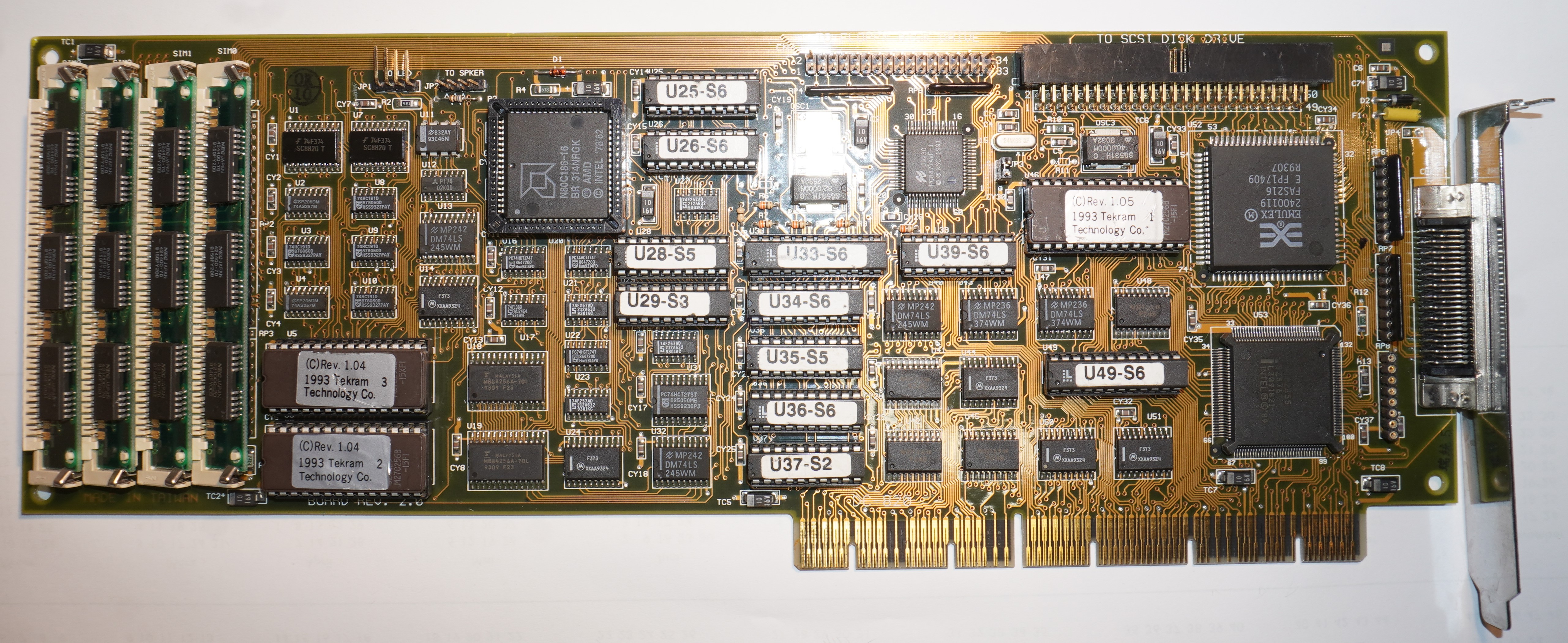

image2 Image 2 of 4 (Elke Wehmer)

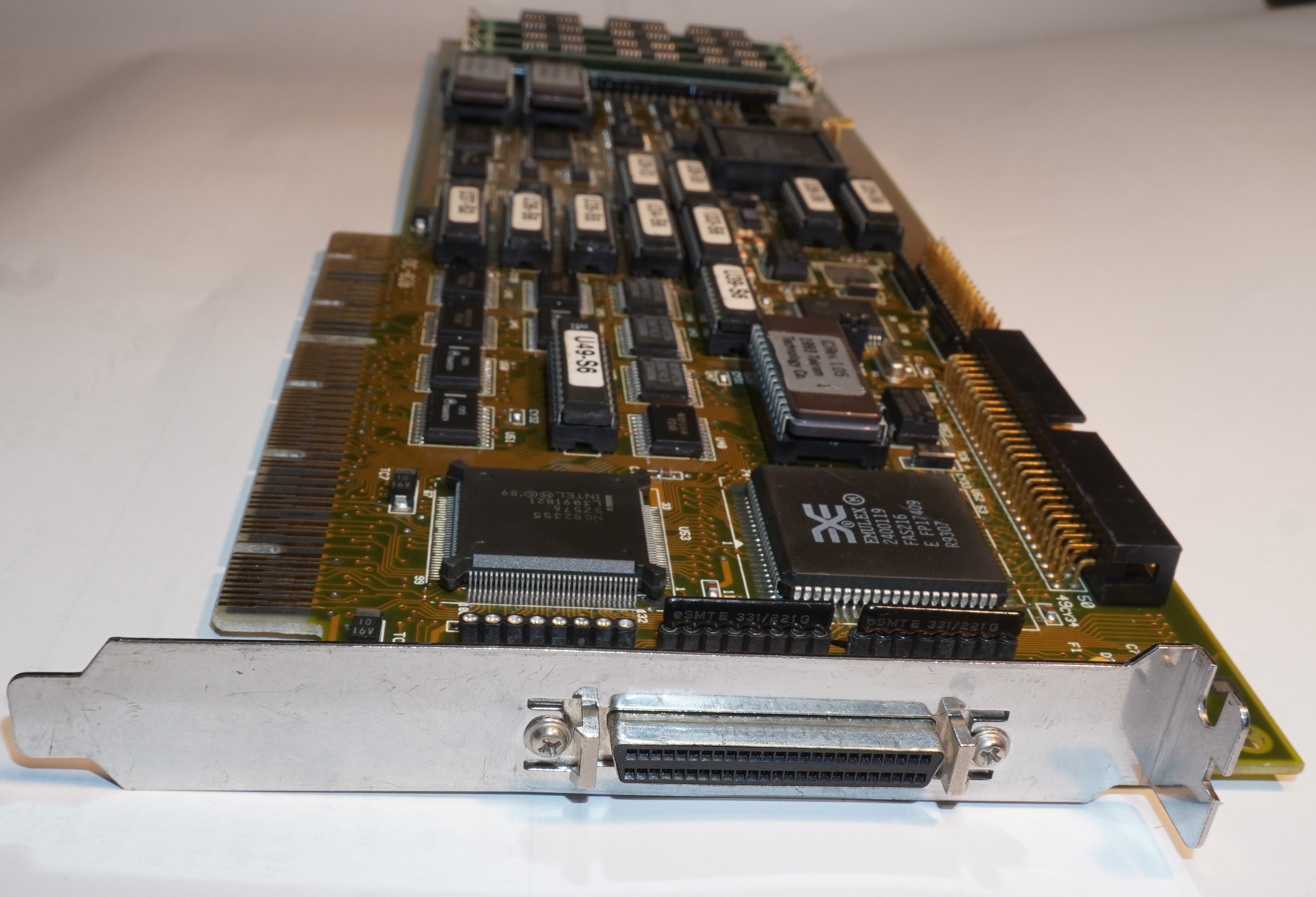

image3 Image 3 of 4 (Elke Wehmer)

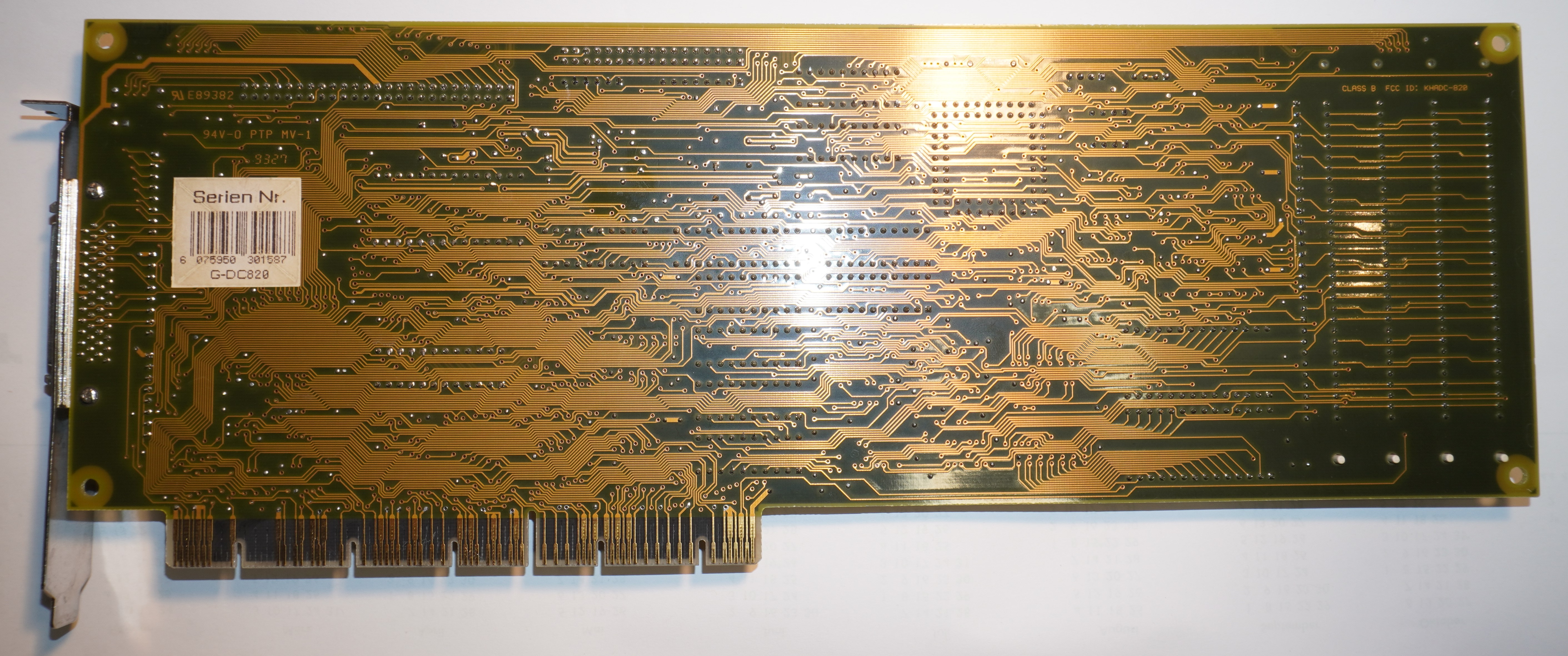

image4 Image 4 of 4 (Elke Wehmer)
