Tandon GATE ARRAY DISC CONTROLLER MARK 4
Logs
typeType
ESDI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Disk Legacy MFM/RLL
Sunol DC1001 (MFM/RLL Disk Controller) Sunol RB1002 (RAM Buffer/Controller)
-> Miscellaneous
OKI M73H002
MTL
Function Location
HadProblem
4-pin connector-external LED CN1
20-pin data cable connector-drive 0 CN3
20-pin data cable connector-drive 1 CN2
34-pin control cable connector-hard drive CN4
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header
2x
  • 2x10 2.54mm pin header
powerPower connectors
Empty
notes Notes

From a Tandon TM 7521 PC

Last updated 2025-09-27T15:33:48Z
biosc No BIOS files available
drv No drivers available
doc No card documents available

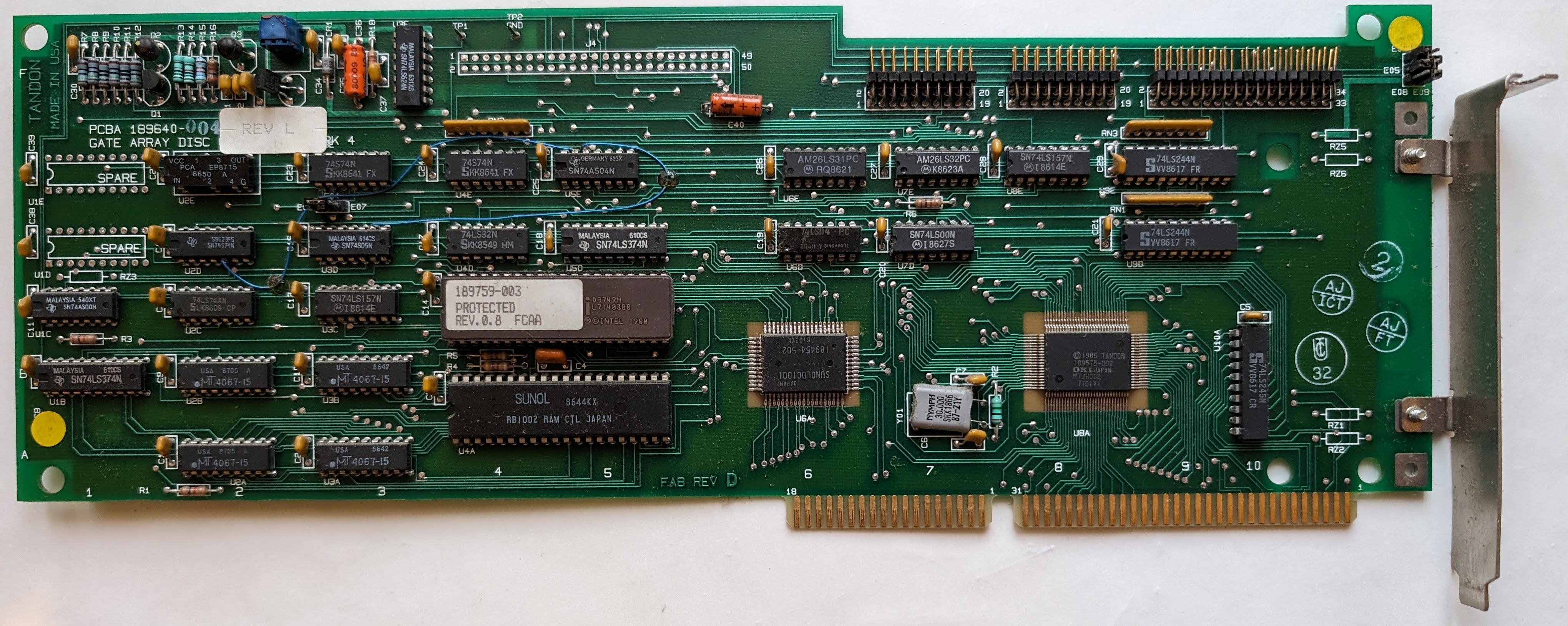

image1 Image 1 of 2 (davidg)

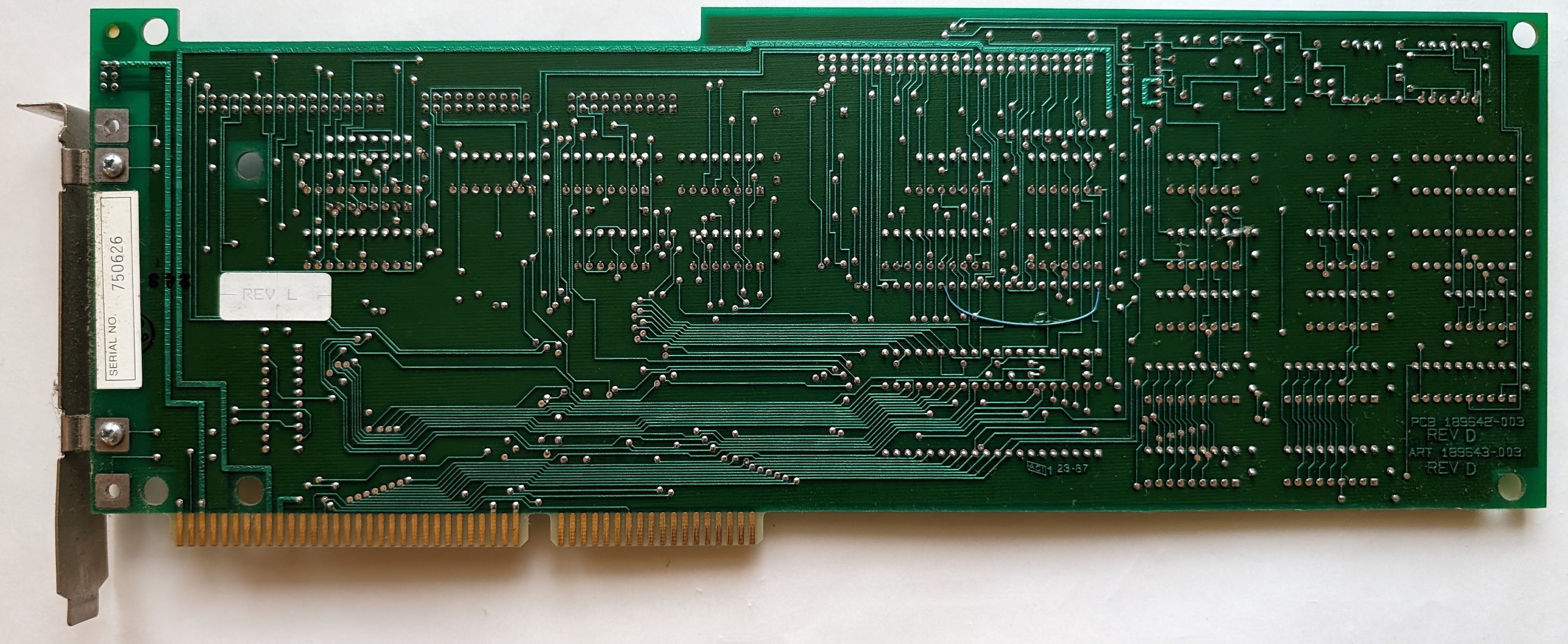

image2 Image 2 of 2 (davidg)
