Taicom MR336PVS
Interface
Signaling
PCI IDEmpty
FCC IDFELMR56PVS
Chips and specs
-> Modem
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 8-bit ISA |
| Card Type | Modem/Fax (asynchronous) |
| Fax Class | Class I |
| I/O Options | None |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 33.6Kbps |
| Fax Modulation Protocol | ITU-T V.17, V.21CH2, V.27ter, V.29 |
| Data Modulation Protocol | Bell 103A/212AITU-T V.21, V.22, V.23, V.22bis, V.32, V.32bis, V.34 |
| Error Correction/Compression | ITU-T V.42, V.42bis, MNP5 |
I/O ports
Power connectorsEmpty
Notes
Shares PCB and FCC ID with several other Acer/AOpen modems.
Last updated 2024-09-05T12:57:09Z
No BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.1
OS support
Windows 9x
Windows NT 4.0
Arch
x86
Size
535.7KB
Filename
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-03-07
File
Logs

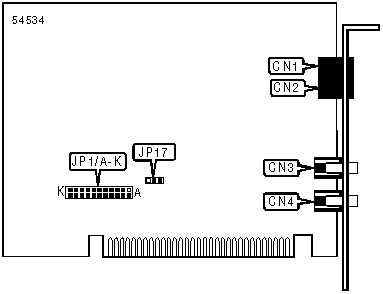

Image 1 of 3 (Microhouse)

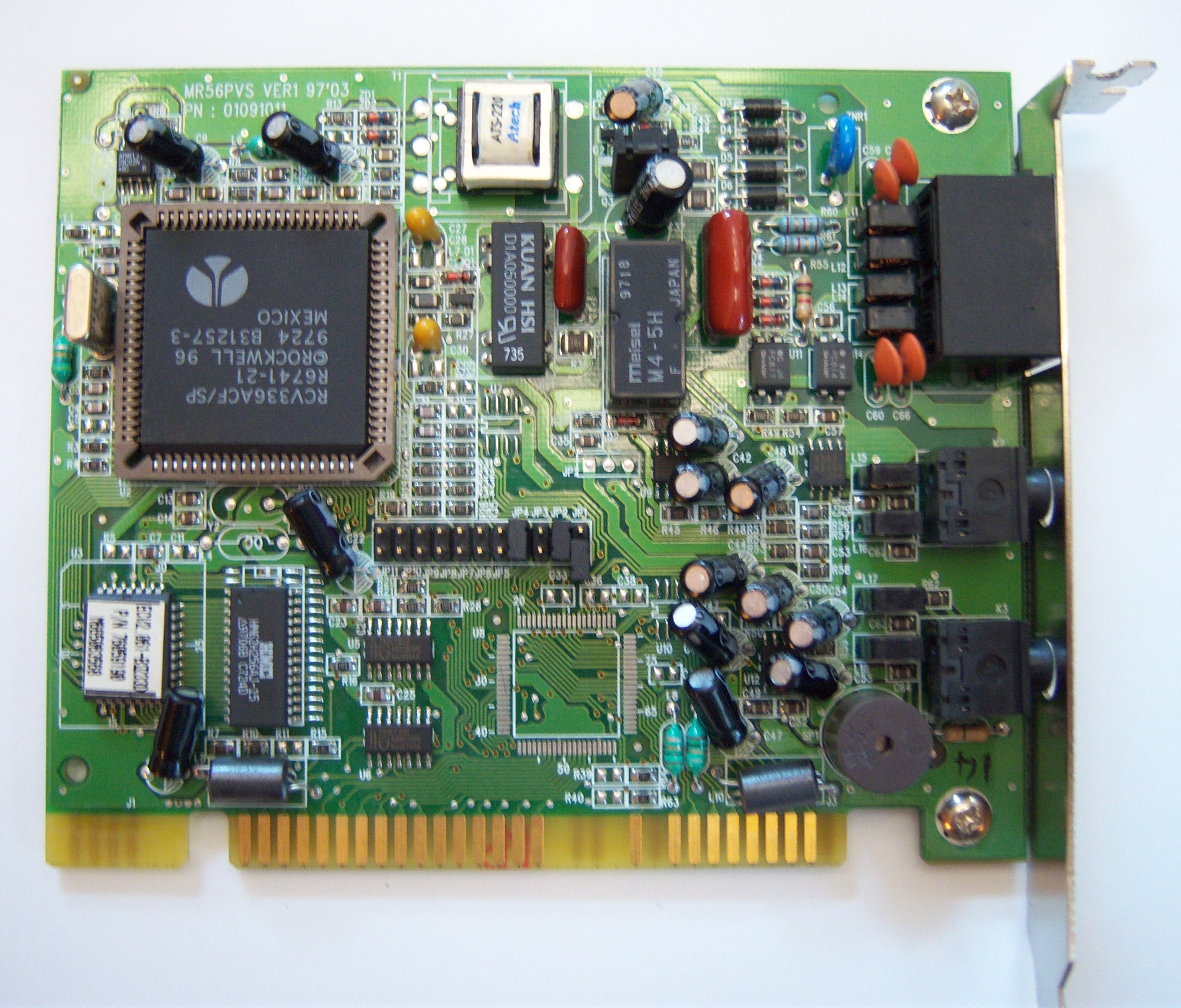

Image 2 of 3 (M.Jo)

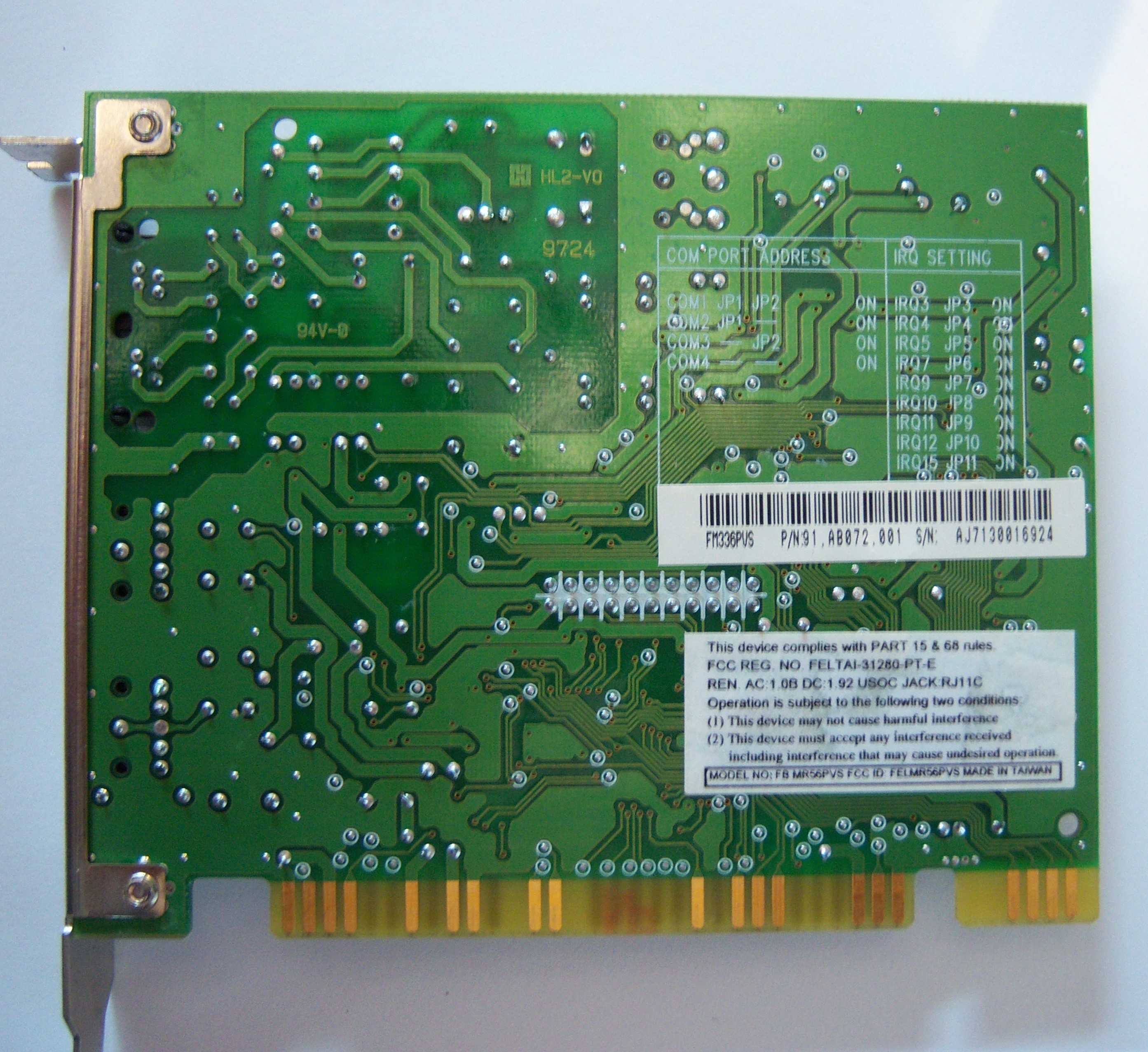

Image 3 of 3 (M.Jo)
