SWEEX PCI-IOFW873-2
Logs
typeType
Firewire controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
00E7
dimDimensions
120 mm (width) x 50mm (length)
chip Chips and specs
-> FireWire ctrl.
NEC uPD72873 (2 port FireWire 400 PCI ctrl.)
tag Also known as
portintI/O ports
3x
  • IEEE-1394 (6-pin)
powerPower connectors
1x
wrench Known issues
  • More ports than controller supports

This card has more ports than the controlller chip(s) used can support.

Some ports share the same signals and can not be connected at the same time or all of the affected ports stop working,
most of the time nothing will break and disconnecting a device will make the other affected port work again.

Most of the time this issue shares an internal port and one of the external ports (first/last).

Last updated 2025-06-01T20:58:14Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2002-04
File
Logs

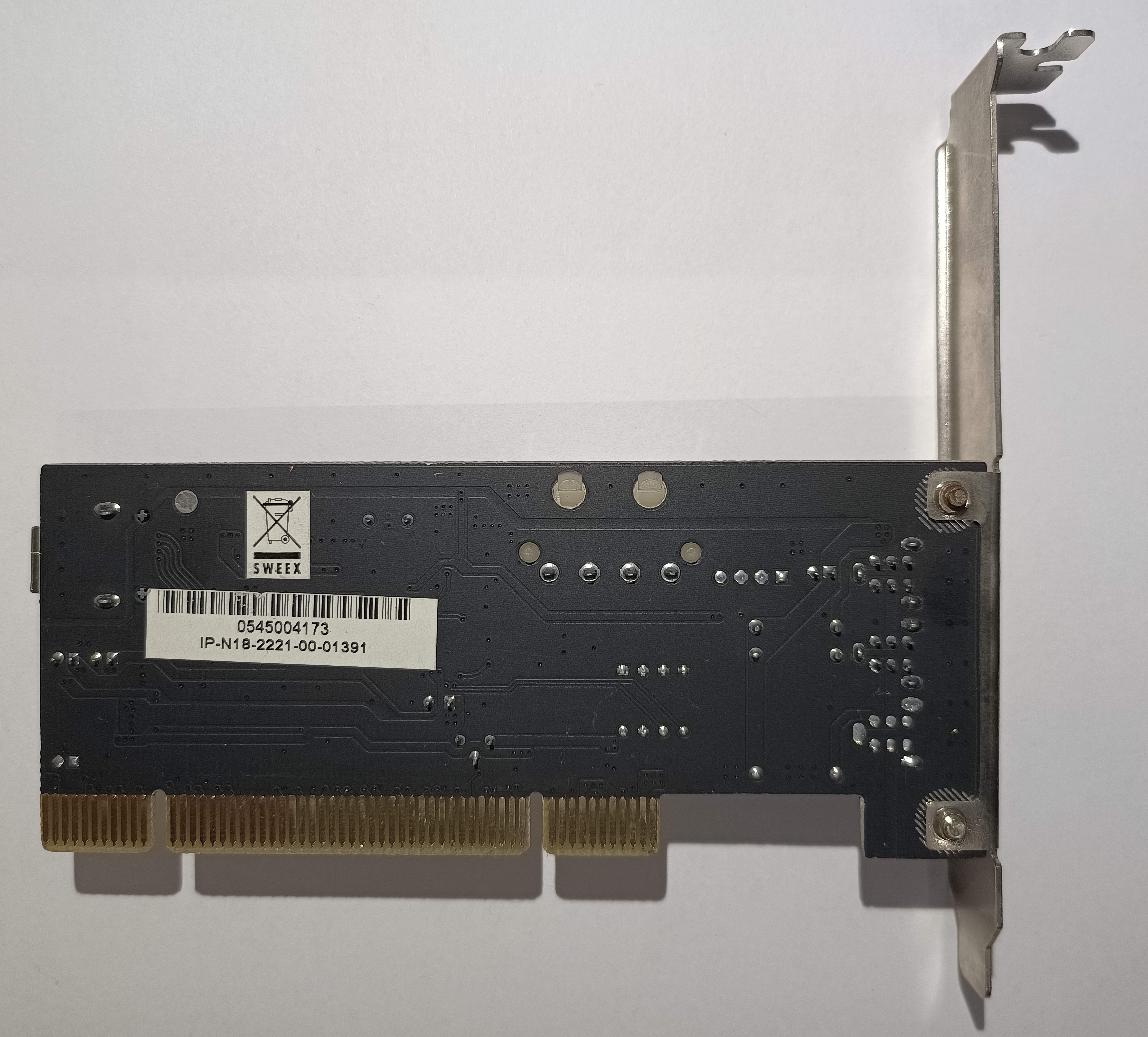

image1 Image 1 of 3 (Helen_Croft)

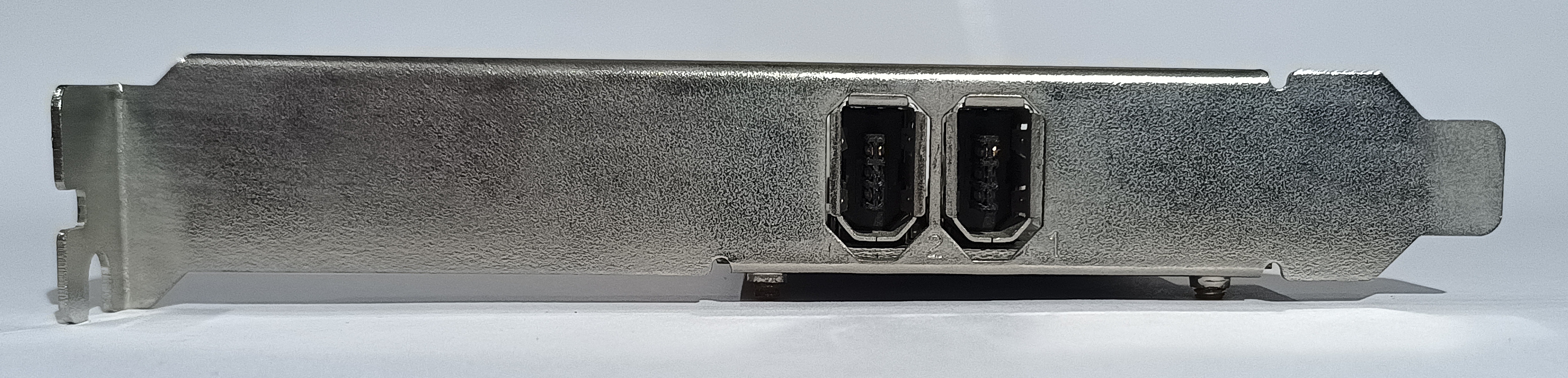

image2 Image 2 of 3 (Helen_Croft)
image3 Image 3 of 3 (Helen_Croft)
