SVEC FD0490-B
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
UMC UM9090 UMC UM9091
MTL
Boot ROM Not available
Data Bus 16-bit ISA
NIC Type Ethernet
Topology Linear Bus
Wiring Type AUI Transceiver via DB-15 portRG-58A/U 50ohm coaxial
Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
  • SVEC Ether Board 16 V1.31 / 200-5009A / 000-0490B-000 G
portintI/O ports
1x
  • DA-15
1x
  • BNC 50-ohms
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2026-01-10T19:03:32Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Note
SVEC(4-Dimension) Quick Boot ROM V7.0
File
Logs
drv No drivers available
doc No card documents available
image1 Image 1 of 2 (sharkcz)

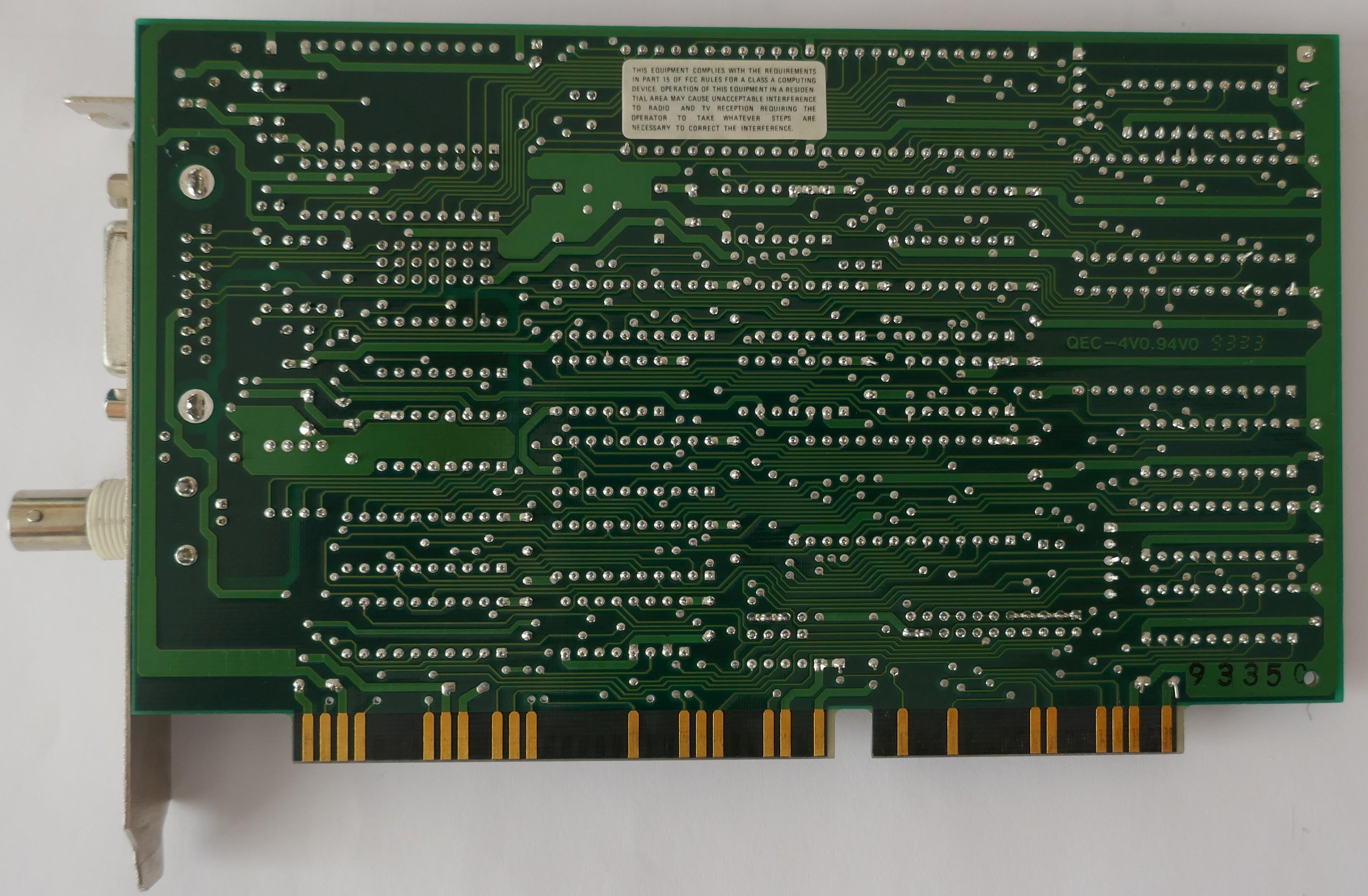

image2 Image 2 of 2 (sharkcz)
