STB Systems DVD Theater
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0001
ramRAM type
RDRAM
ramRAM size
4MB
dimDimensions
178 mm (width) x 100mm (length)
chip Chips and specs
-> Video
Chromatic GM90C711 (mPact! R/3000 and R/3600)
MTL
Chip Set SIS
Data Bus 32-bit PCI
Card Size Full-length, full-height card
Card Type DVD drive controller
Maximum Resolution 1024 x 1280
Maximum Onboard Memory 4MB
tag Also known as
portintI/O ports
1x
  • 2x20 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 2x3 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-16T07:49:57Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.6
OS support
Windows 9x
Arch
Size
4.9MB
Filename
Name
Version
1.4
OS support
Windows 9x
Arch
Size
20MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

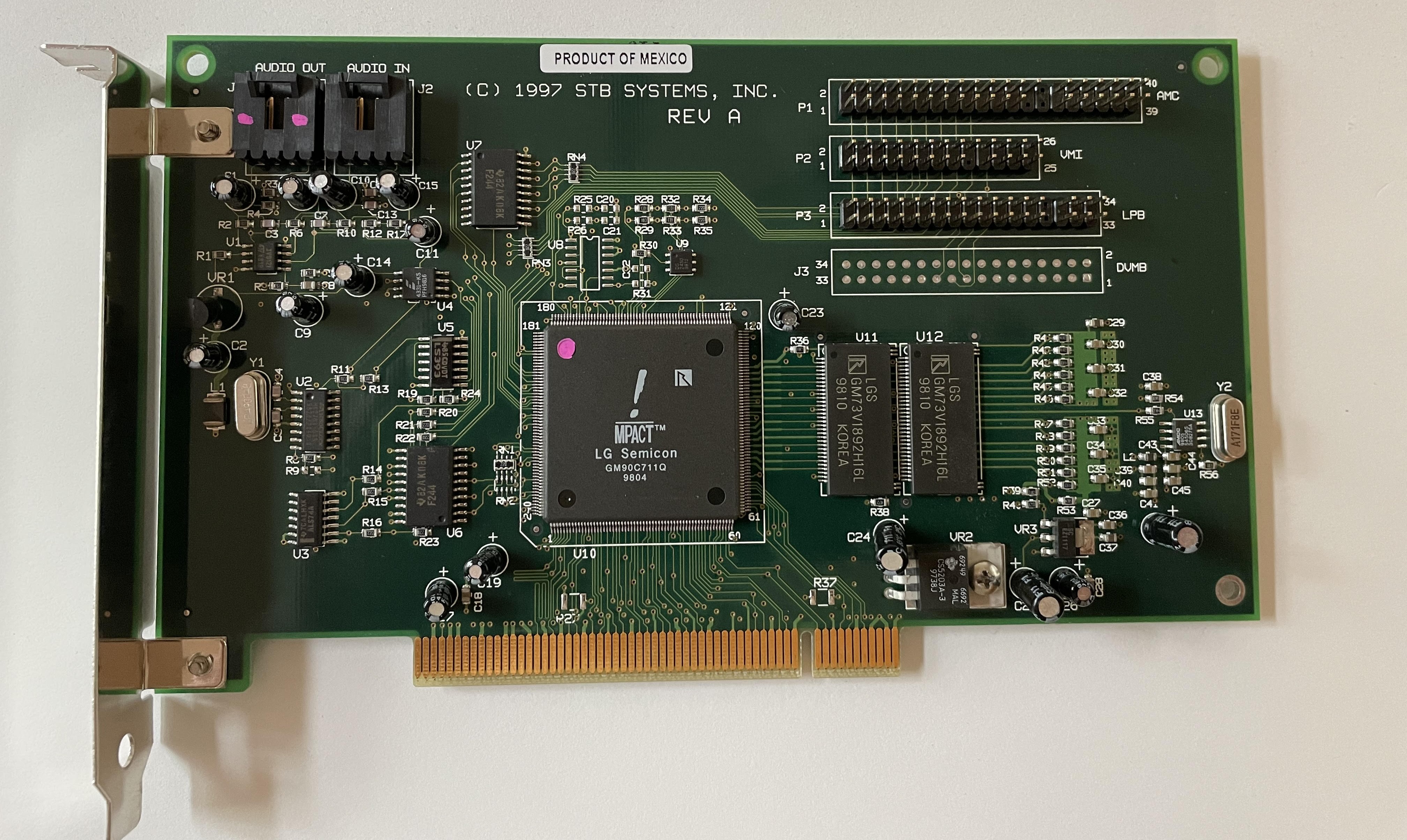

image1 Image 1 of 2 (M.Jo)

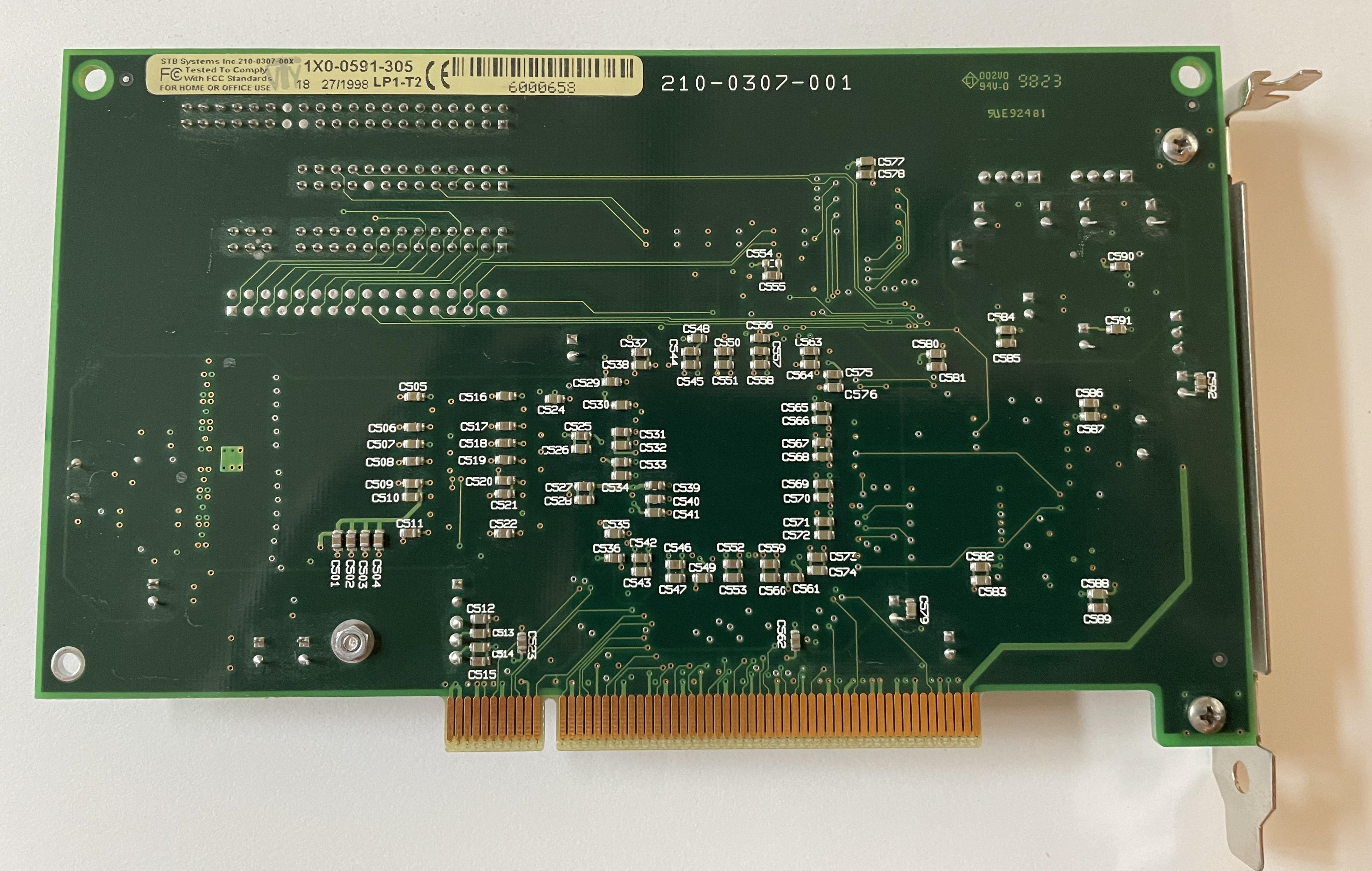

image2 Image 2 of 2 (M.Jo)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
