SPEA / Video Seven V7 MIRAGE VL R2.1
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
2MB
chip Chips and specs
-> RAMDAC
AT&T 20C490
-> Video
S3 86C805-P
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA local bus
Video Processor S3
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-11-07T11:24:13Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41
OS support
Windows 3.1x
Arch
x86
Size
445.7KB
Filename
doc No card documents available

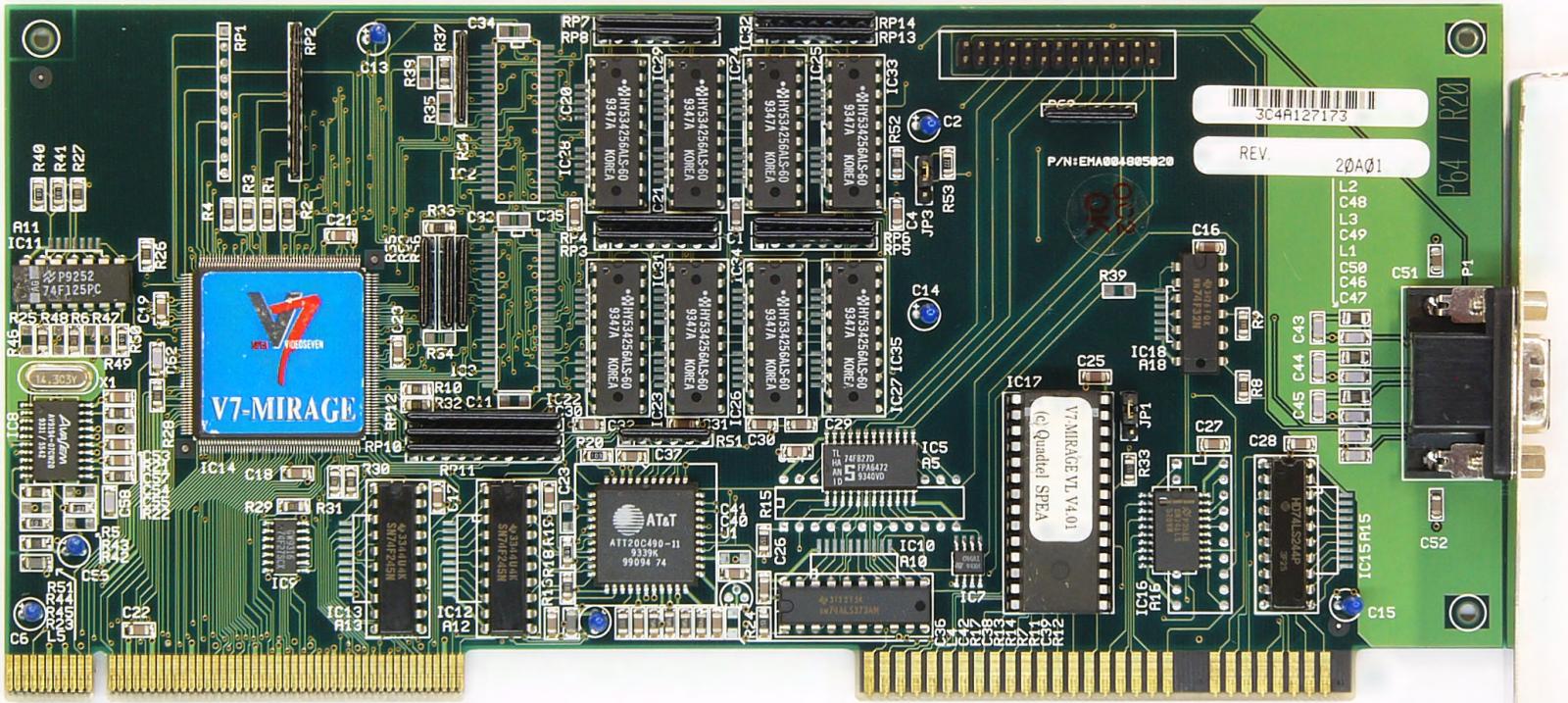

image1 Image 1 of 2 (Palcal)

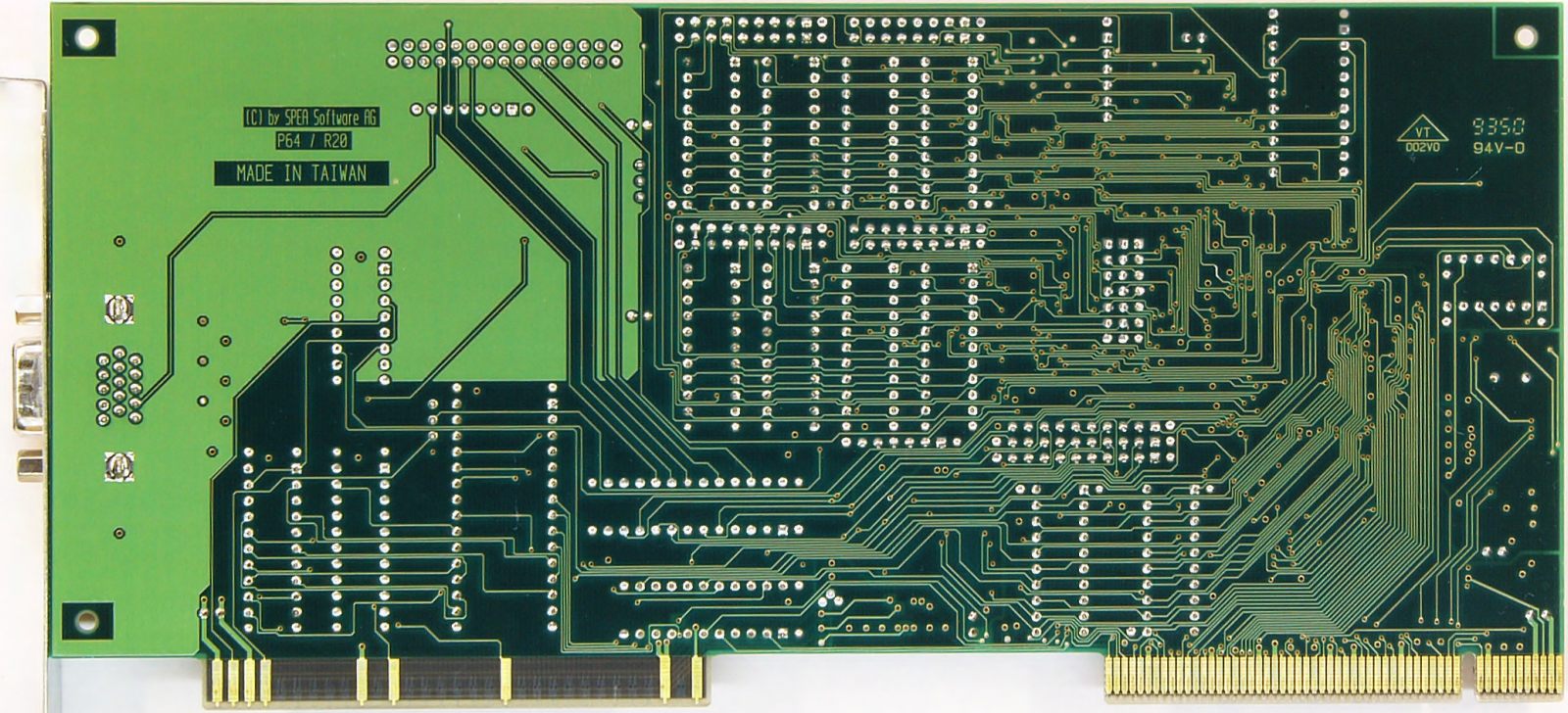

image2 Image 2 of 2 (Palcal)
