SPEA / Video Seven V7-Mirage P64 VL
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
8811 8813 8810
fccFCC ID
KBBMIRP64PVLB
ramRAM size
2MB
chip Chips and specs
-> Video
S3 86C764X (Trio64)
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA Local Bus
Video Types Supported XVGA
Maximum Onboard Memory 2048KB
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-01T19:10:32Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3B8
OS support
Windows 3.1x
Arch
x86
Size
994.8KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
56.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs
Chip
Release date
1996-02
File
Logs

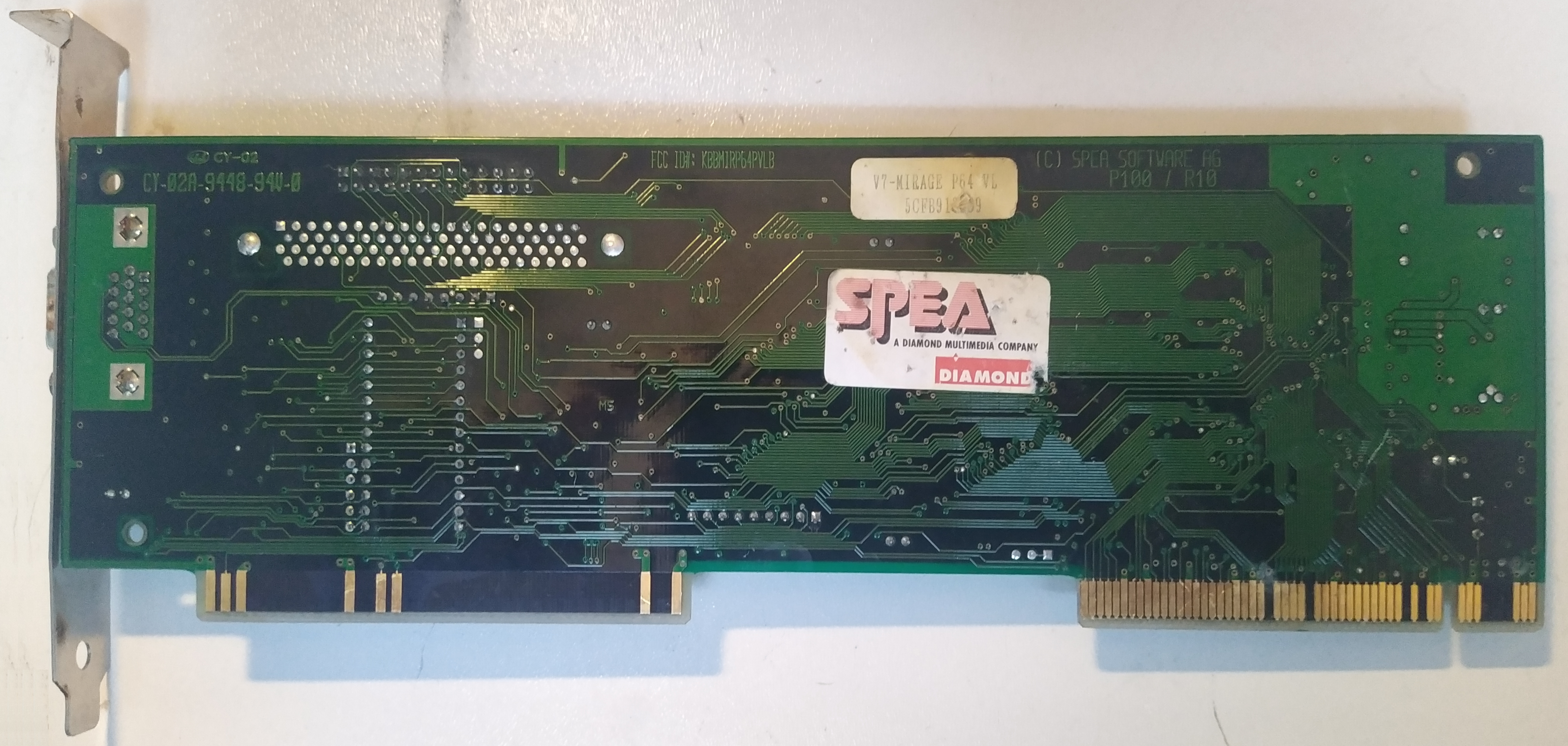

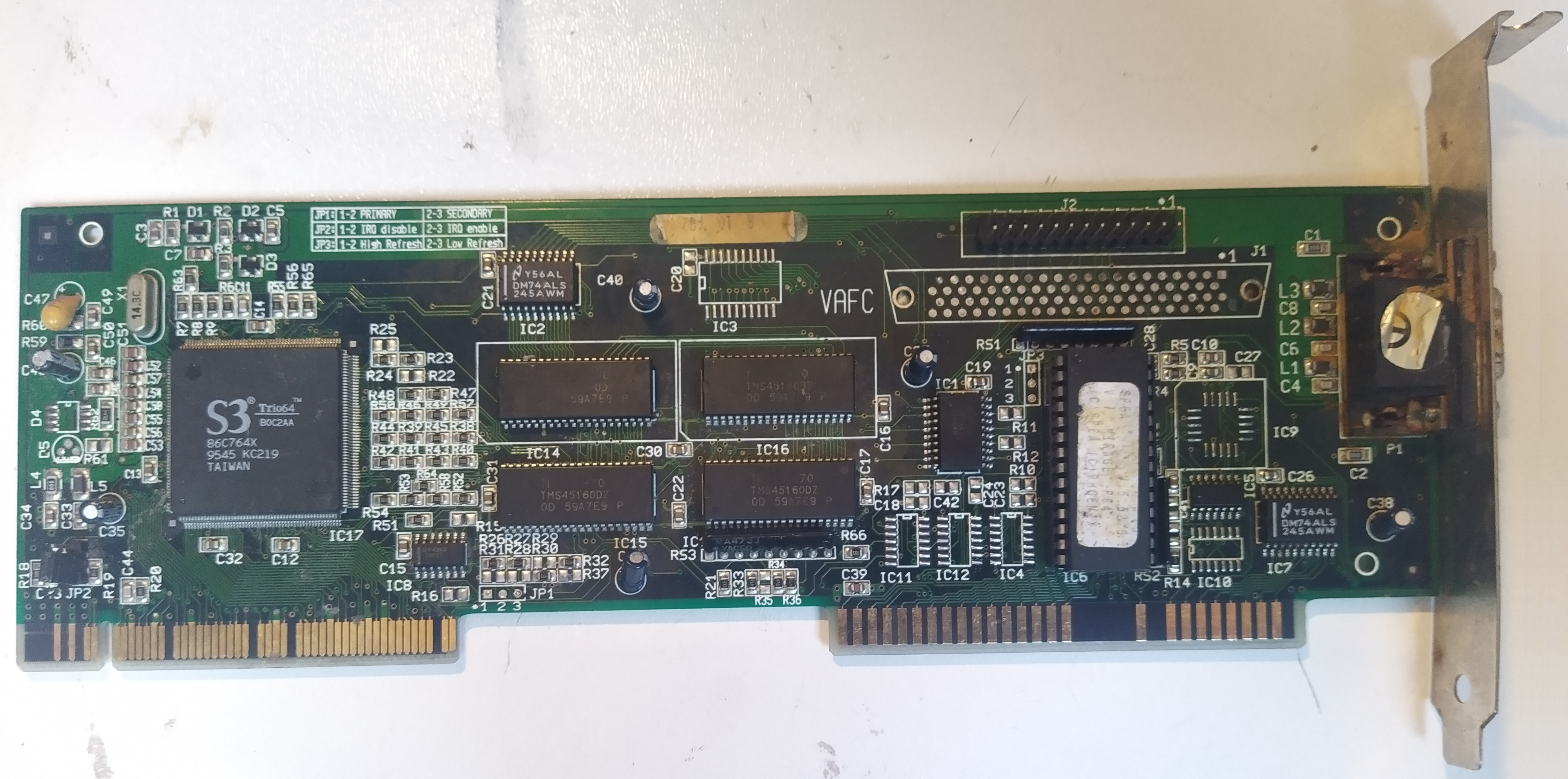

image1 Image 1 of 2 (kotelstudios)
image2 Image 2 of 2 (kotelstudios)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
