SMSC/SMC WD8003E
Logs
typeType
Network
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
National Semiconductor DP8390C (Network Interface Controller) National Semiconductor DP8392 (Coaxial Transceiver Interface)
MTL
Boot ROM Not Available
Data Bus 8-bit ISA
NIC Type Ethernet
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxialAUI transceiver via DB-15 port
Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
portintI/O ports
1x
  • DA-15
1x
  • BNC 50-ohms
powerPower connectors
Empty
Last updated 2025-05-15T23:02:01Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.7.3
OS support
MS-DOS
Arch
x86
Size
10.1KB
Filename

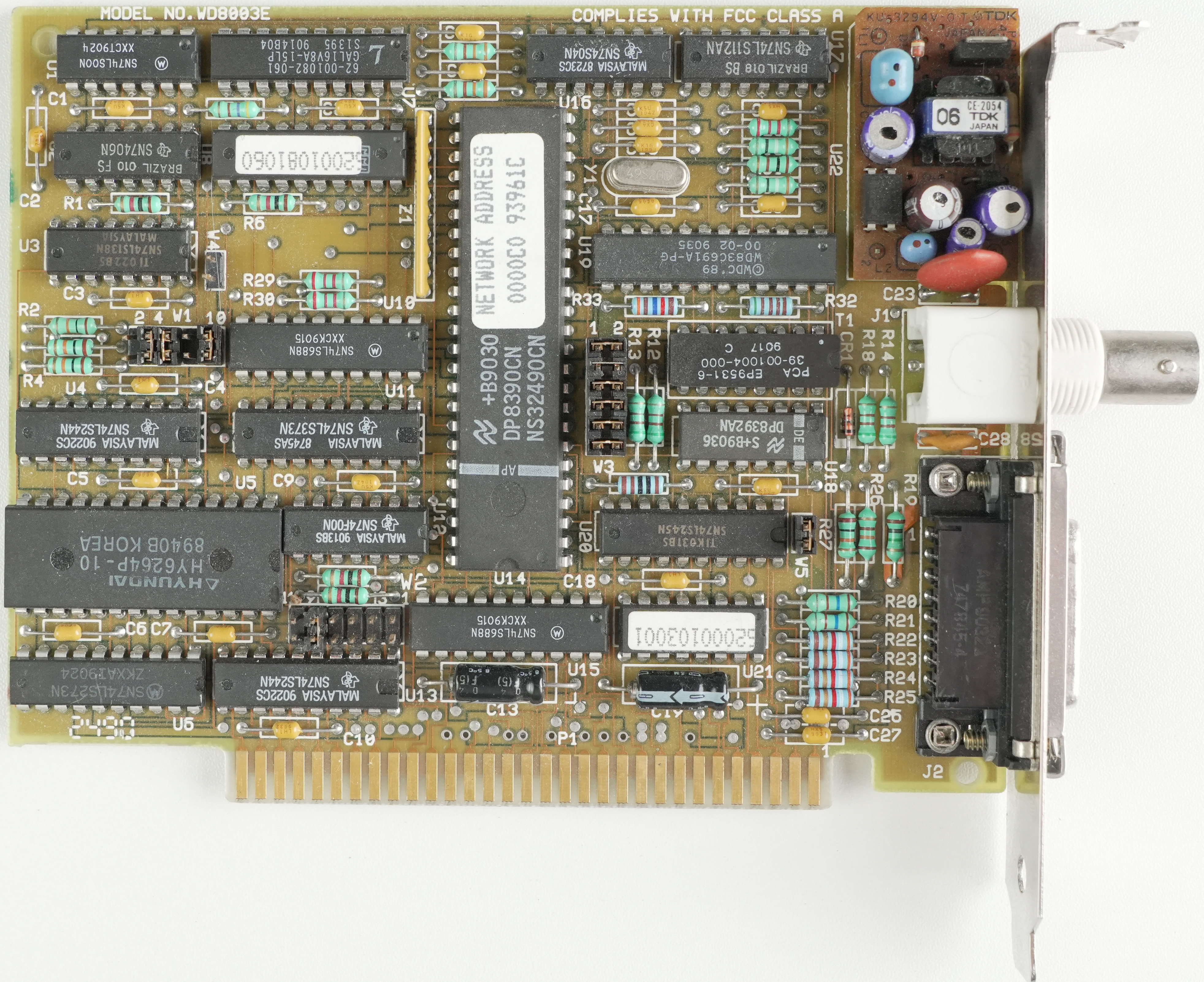

image1 Image 1 of 4 (Microhouse)

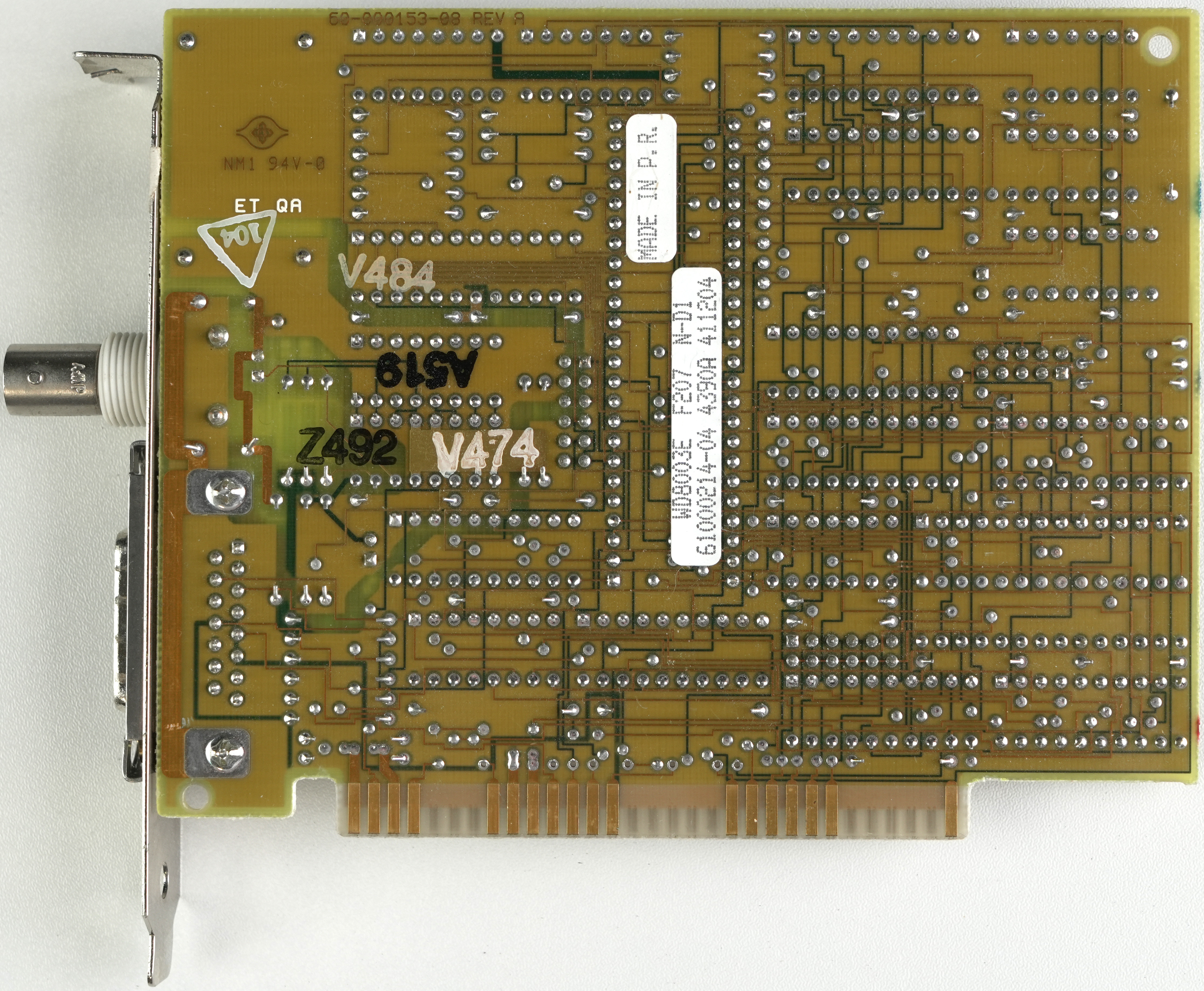

image2 Image 2 of 4 (vvolcano)

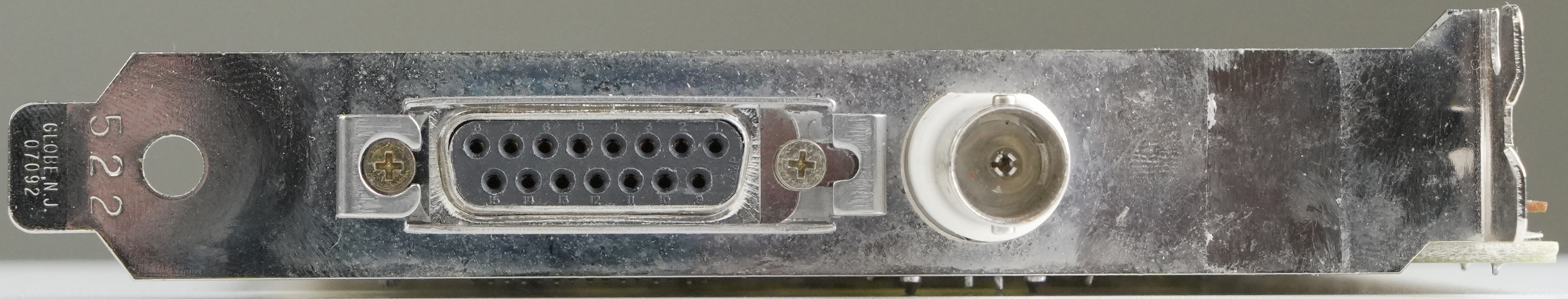

image3 Image 3 of 4 (vvolcano)
image4 Image 4 of 4 (vvolcano)
