SMART Modular Technologies Rapid Transit K56
Logs
typeType
Modem
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
datePCI ID
Empty
fccFCC ID
2D7USA-24574-M5-E / KOCST56141DNA
chip Chips and specs
-> Modem
Agere 1034 (Line codec) Agere 1643 (Modem DSP)
-> Programmable Logic
NEC PD65640 (CMOS Gate array)
tag Also known as
portintI/O ports
2x
  • RJ11
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-10-02T18:37:58Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

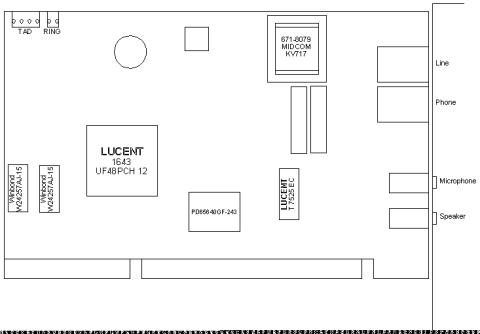

image1 Image 1 of 2 (Quantex)
image2 Image 2 of 2 (Quantex)
