SMART Modular Technologies 90079
Logs
typeType
Sound Modem
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
2D7USA-33303-M5-E / DK4TAI-27049-M5-E
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier)
-> Modem
Conexant D7400-12 (RIPTIDE) Conexant 20424-22 (RAMC001)
MTL
Chip Set Unidentified
Data Bus 32-bit PCI
Card Size Half-length, half-height card
Card Type Modem, Fax
Fax Class Unidentified
Maximum Fax Rate 14.4Kbps
Maximum Modem Rate 56Kbps
Fax Modulation Protocol ITU-T V.17, V.27ter, V.29
Data Modulation Protocol Bell 103A/212AITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.90
Error Correction/Compression MNP5, V.42, V.42bis
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
2x
  • RJ11, V.32bis Dialup (14.4k), V.34 Dialup (28.8k), V.34+ Dialup (33.6k), V.90 Dialup (56k), V.92 Dialup (56k w/ compression), V.32 Dialup (9600 baud), V.22bis Dialup (2400 baud), V.22 Dialup (Bell 212A, 1200 baud), V.21 Dialup (Bell 103, 300 baud)
powerPower connectors
Empty
Last updated 2025-09-14T11:14:14Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.08
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Name
Version
6.00
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
2MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs

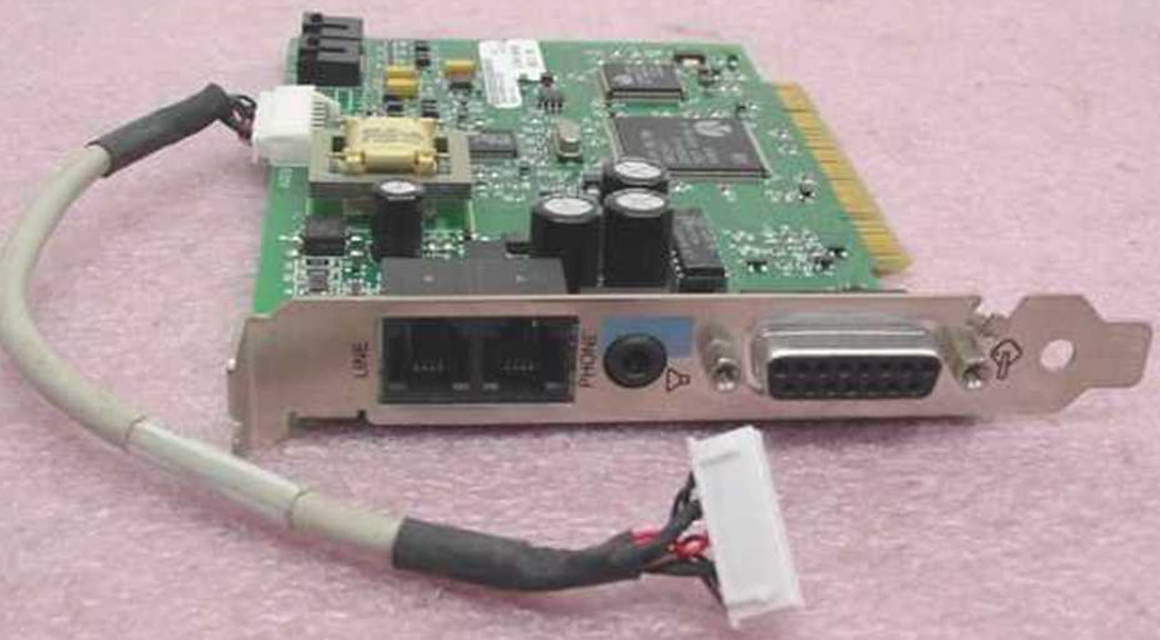

image1 Image 1 of 4 (recycledgoods)

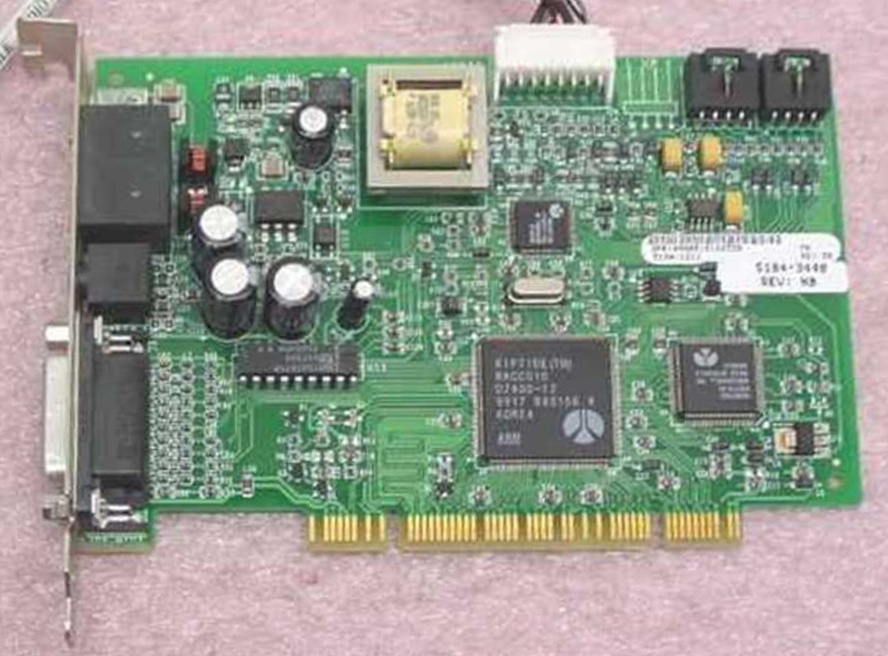

image2 Image 2 of 4 (recycledgoods)

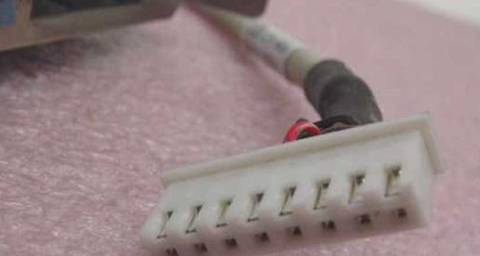

image3 Image 3 of 4 (recycledgoods)
image4 Image 4 of 4 (recycledgoods)
