SIIG, INC. CK-JK0022
Logs
Interface
Signaling
Slot height
PCI IDEmpty
FCC IDHBQUM92144D-V1
Chips and specs
| MTL | |
|---|---|
| Data Bus | 8-bit ISA |
| Fax Class | Class I & II |
| Modem Type | Data (synchronous/asynchronous)/Fax |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Data Rate | 14.4Kbps |
| Fax Modulation Protocol | ITU-T V.17, V.21CH2, V.27ter, V.29 |
| Data Modulation Protocol | Bell 212AITU-T V.22, V.22bis, V.32, V.32bis |
| Error Correction/Compression | MNP5, V.42, V.42bis |
Also known as
- Digicom 1442PC-B VER 3.0
- Unknown TACM-005-10
- Unknown 01061653
I/O ports
Power connectors
Notes
The FCC ID is not for the card but for the UMC chip. There are other modems with the same FCC ID.
Last updated 2025-08-30T18:42:33Z
1 card BIOS file available
Version
Note
File
Logs
No drivers available
1 card document available
Release date
File
Logs

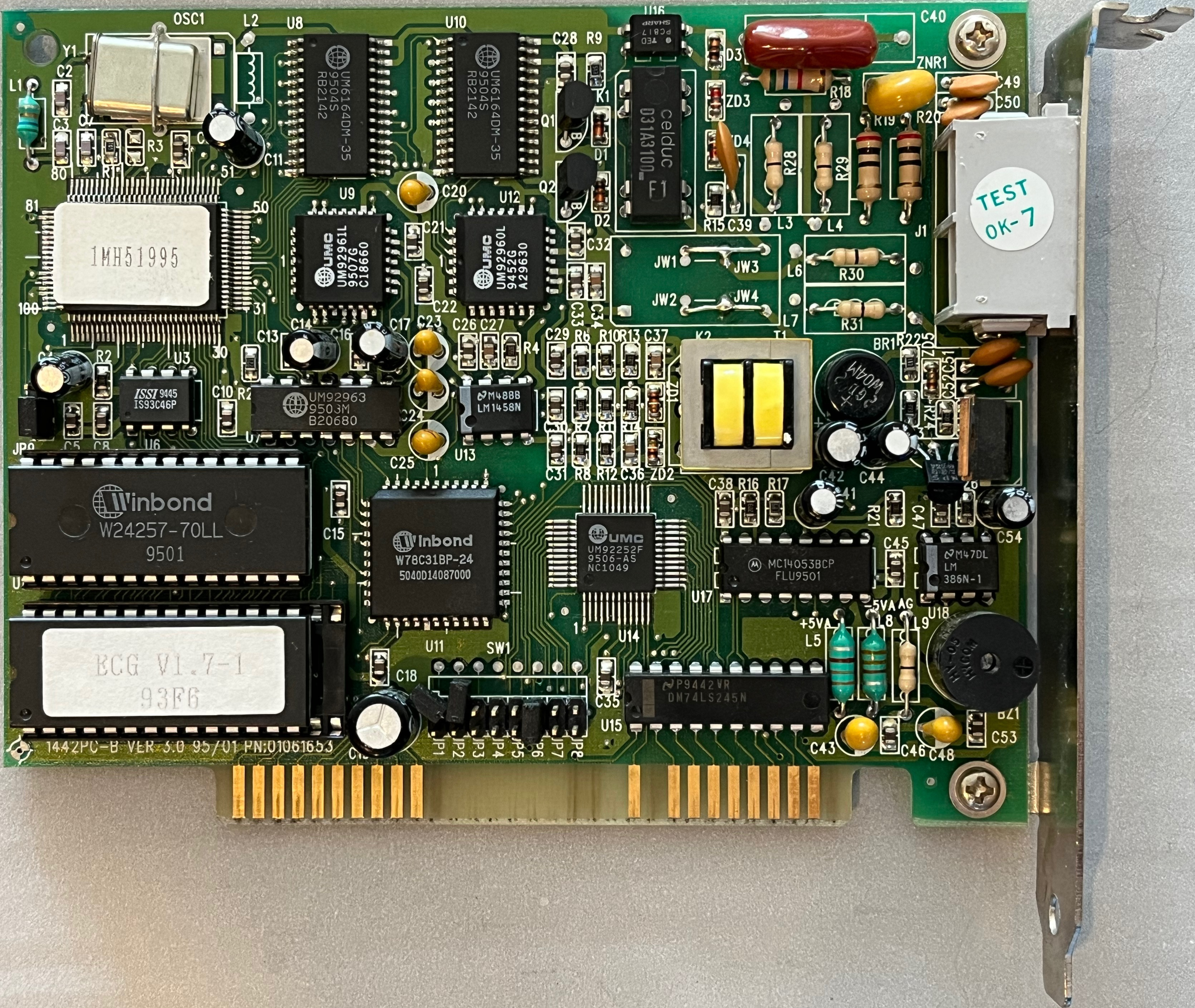

Image 1 of 6 (evasive)

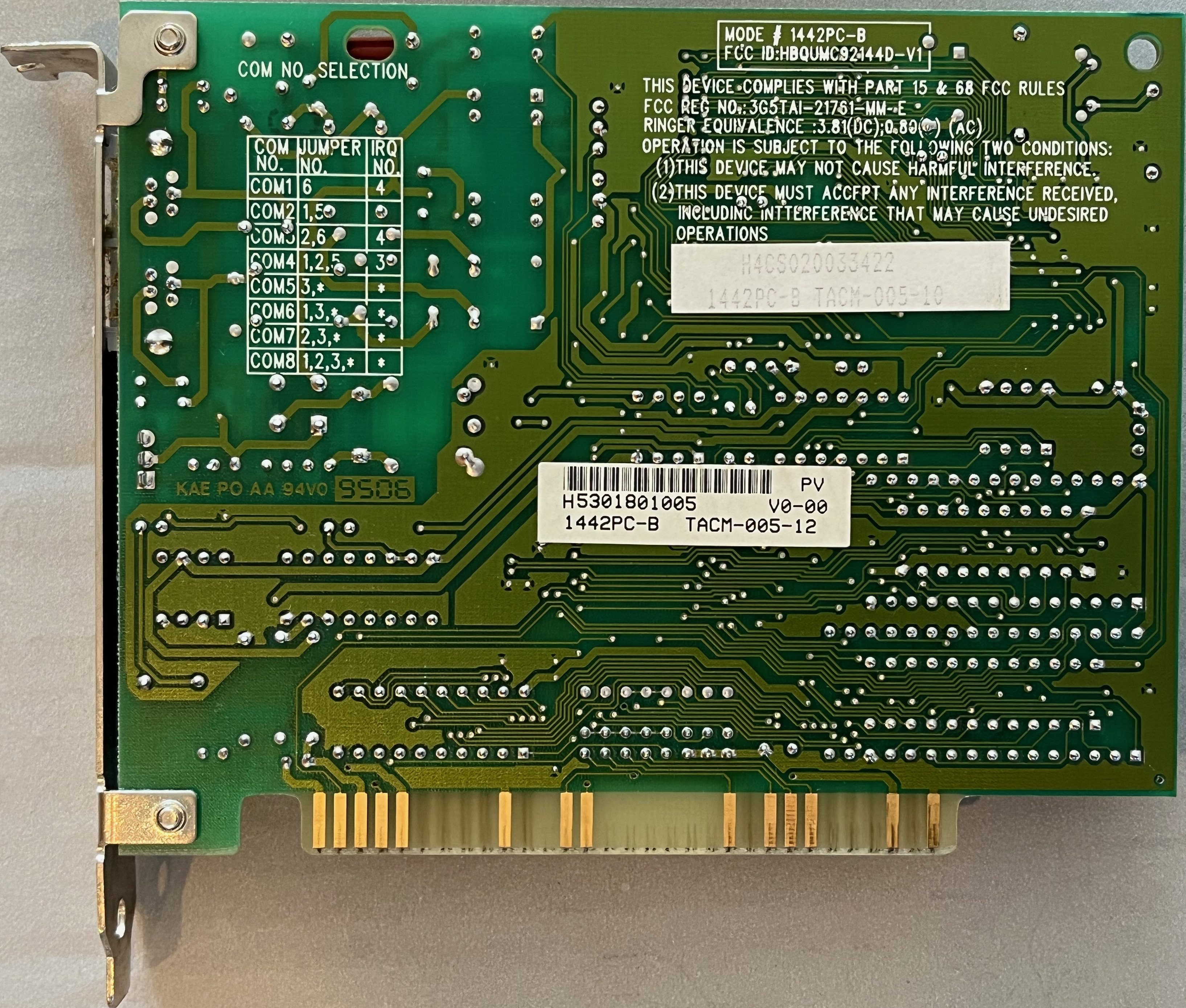

Image 2 of 6 (dogecode)

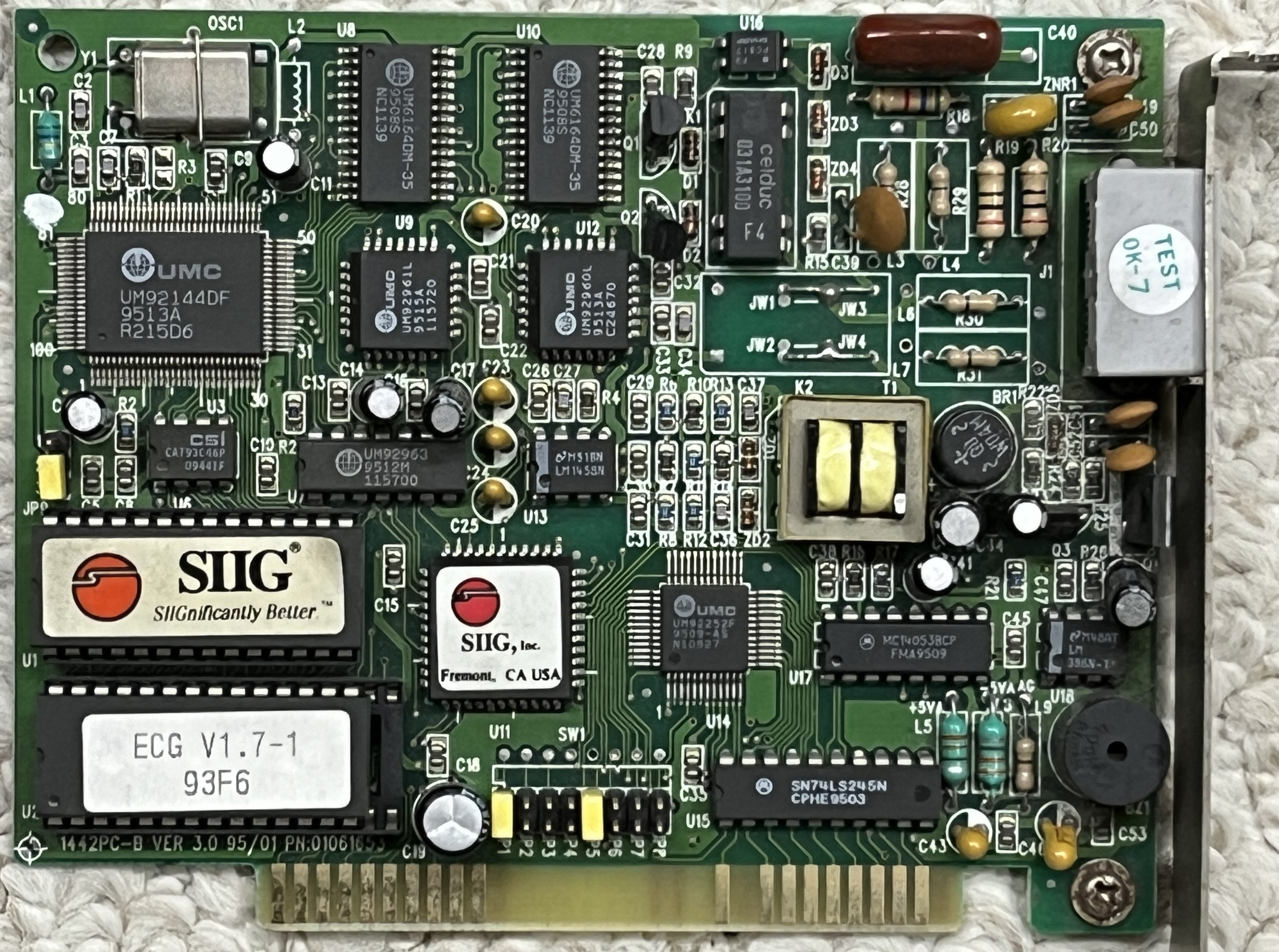

Image 3 of 6 (Douglar)

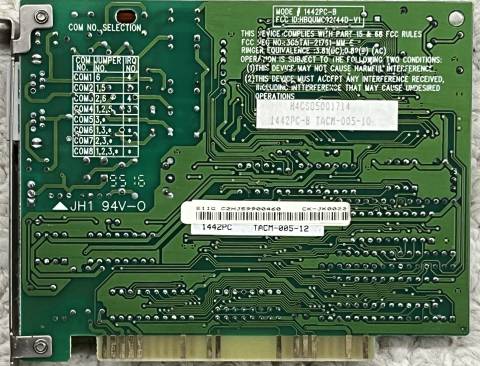

Image 4 of 6 (dogecode)
Image 5 of 6 (Douglar)
Image 6 of 6 (dogecode)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
