RT & C M32PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
4158
fccFCC ID
KIAM32PCI
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> RAMDAC
AT&T 20C490
-> Video
ATi mach32 AX
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
notes Notes

Bad "Jail bar" effect when used with any LCD screen

Last updated 2025-06-17T14:25:54Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
doc No card documents available

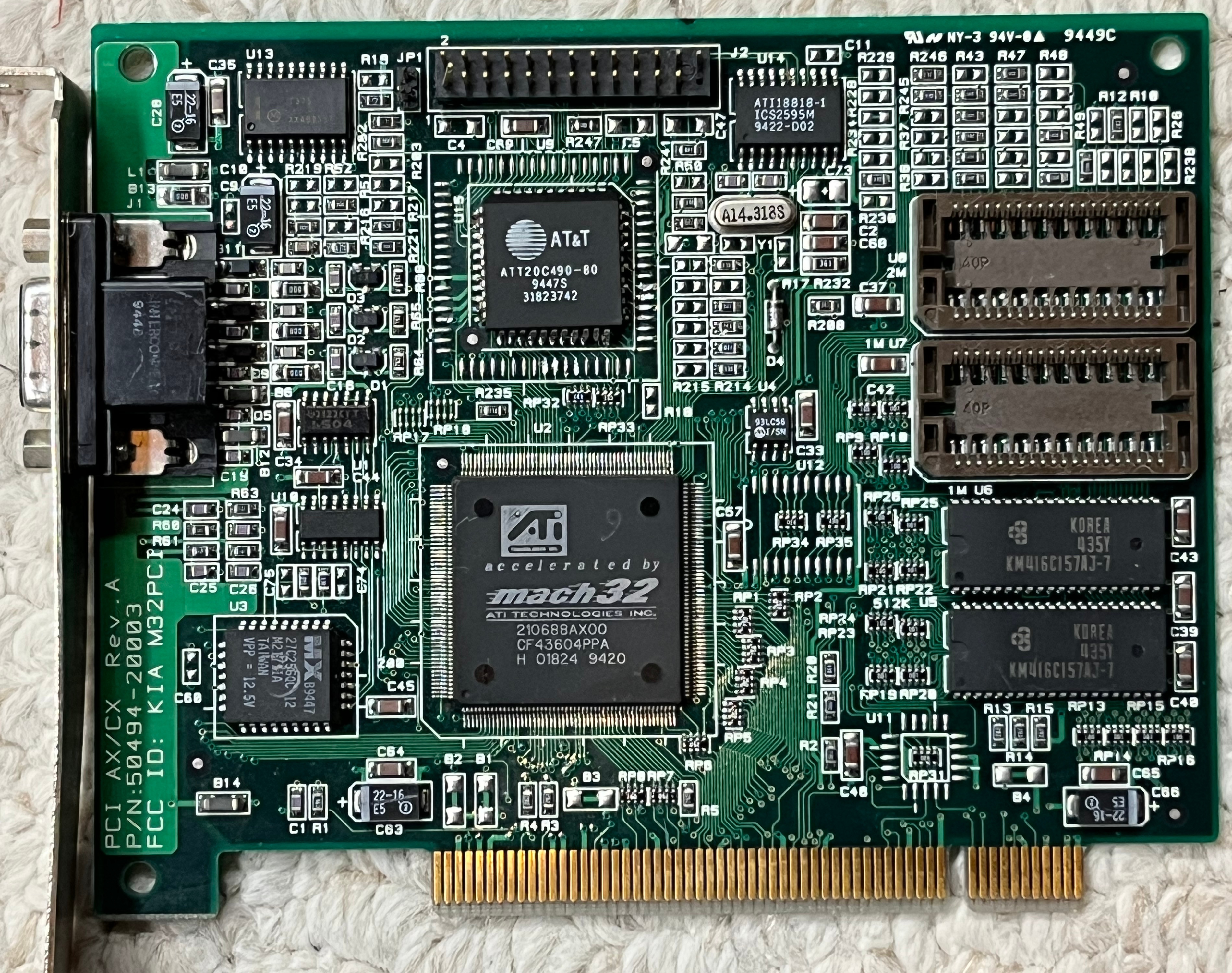

image1 Image 1 of 2 (Douglar)

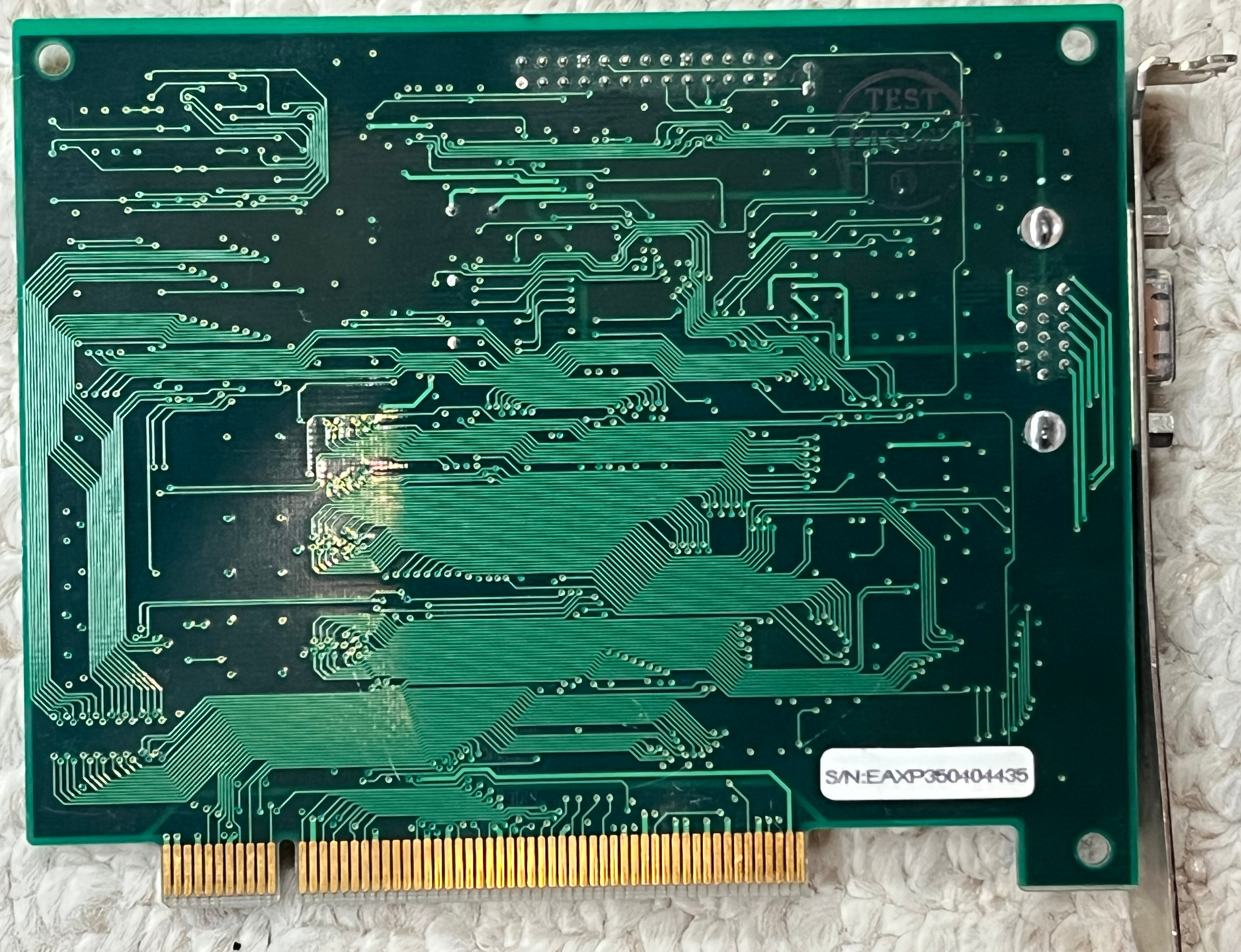

image2 Image 2 of 2 (Douglar)
