Quantum3D Obsidian 2 SB200
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0002
ramRAM type
EDO
ramRAM size
24MB
chip Chips and specs
-> RAMDAC
ICS ICS5342 (GENDAC)
-> Video
Chrontel CH7002D (PC to TV Encoder) 3Dfx 500-0010-01 (Bruce - BE) 3Dfx 500-0009-01 (Chuck - CK)
portintI/O ports
1x
  • RCA Jack
2x
  • 4-pin Mini-DIN
1x
  • DE-15, VGA
1x
  • 2x20 2.54mm socket header
powerPower connectors
Empty
notes Notes

Basically 2 x voodoo2 card

Last updated 2025-07-30T19:24:40Z
biosc No BIOS files available
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.43
OS support
MS-DOS Windows 9x
Arch
x86
Size
10.6MB
Filename
Name
Version
6.2.0.2
OS support
Empty
Arch
x86
Size
1.2MB
Filename
Name
Version
3.02.02
OS support
Windows 9x
Arch
x86
Size
2.2MB
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
201KB
Filename
Name
Version
1.02.00
OS support
Windows 2000
Arch
x86
Size
1.6MB
Filename
Name
Version
3.02.02
OS support
Windows NT 4.0
Arch
x86
Size
2.5MB
Filename
Name
Version
4.6
OS support
Windows 9x
Arch
x86
Size
9.5MB
Filename
Name
Version
4.0
OS support
Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-12-01
File
Logs

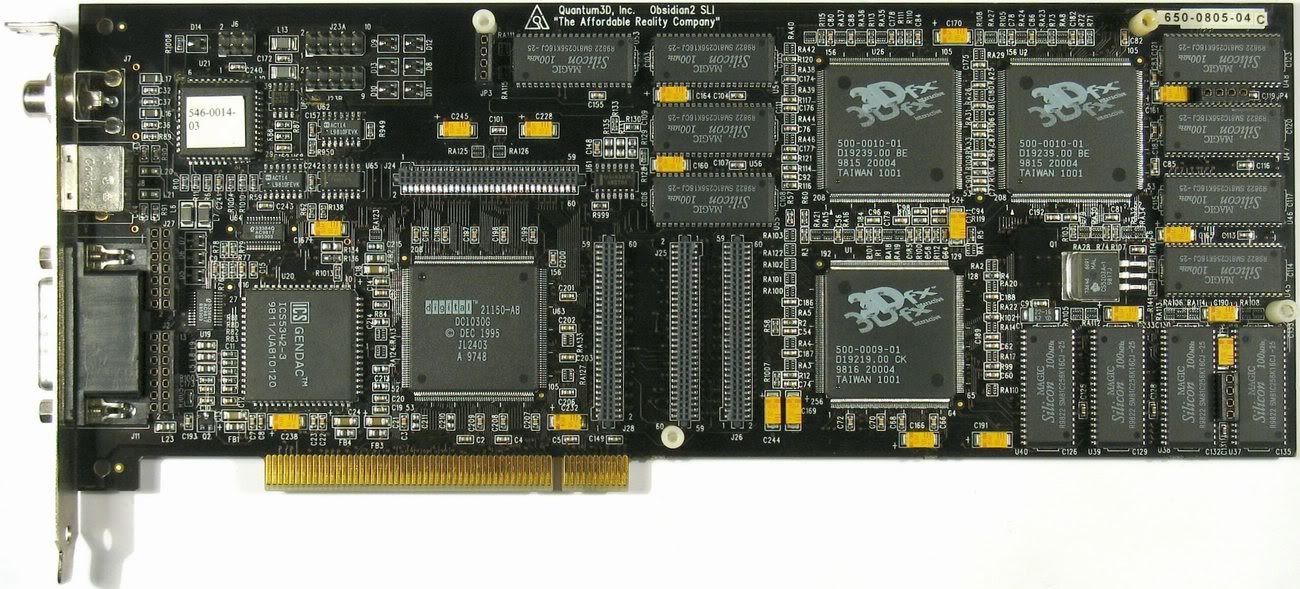

image1 Image 1 of 5 (old_pc_parts)

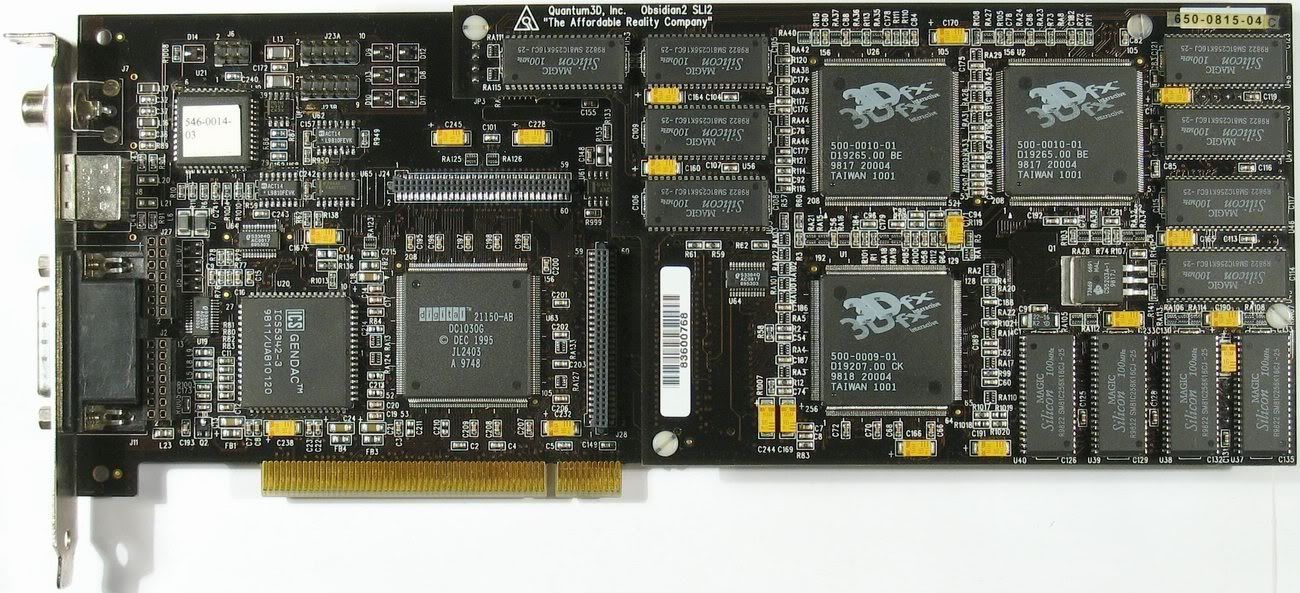

image2 Image 2 of 5 (old_pc_parts)

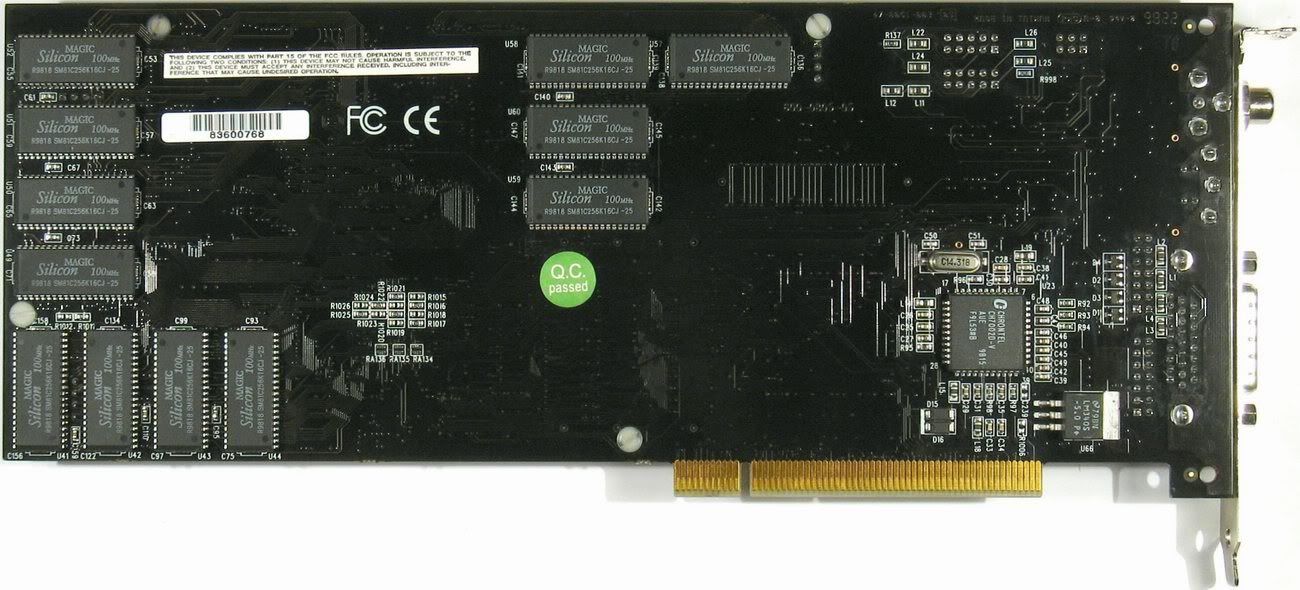

image3 Image 3 of 5 (old_pc_parts)

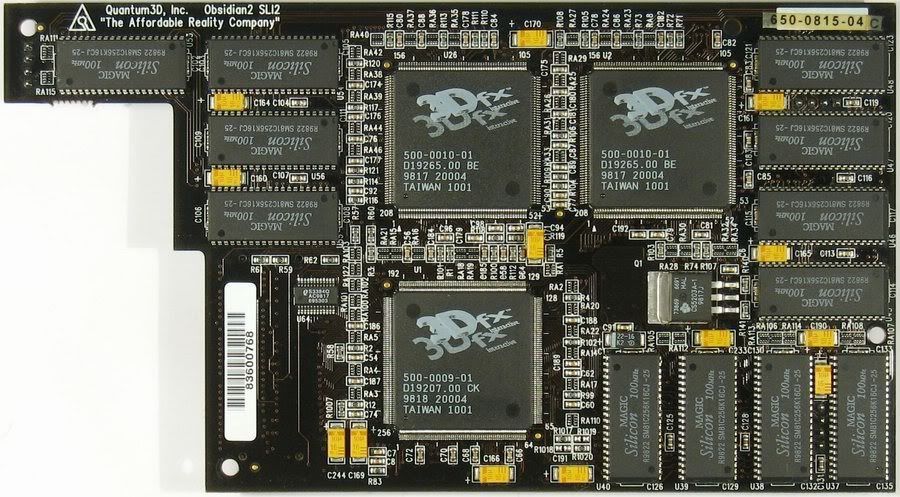

image4 Image 4 of 5 (old_pc_parts)

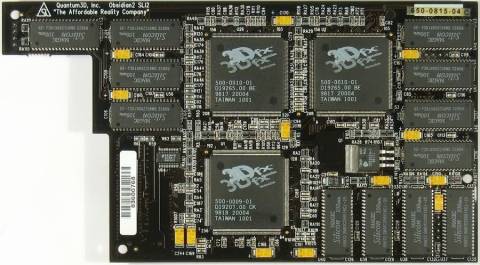

image5 Image 5 of 5 (old_pc_parts)
