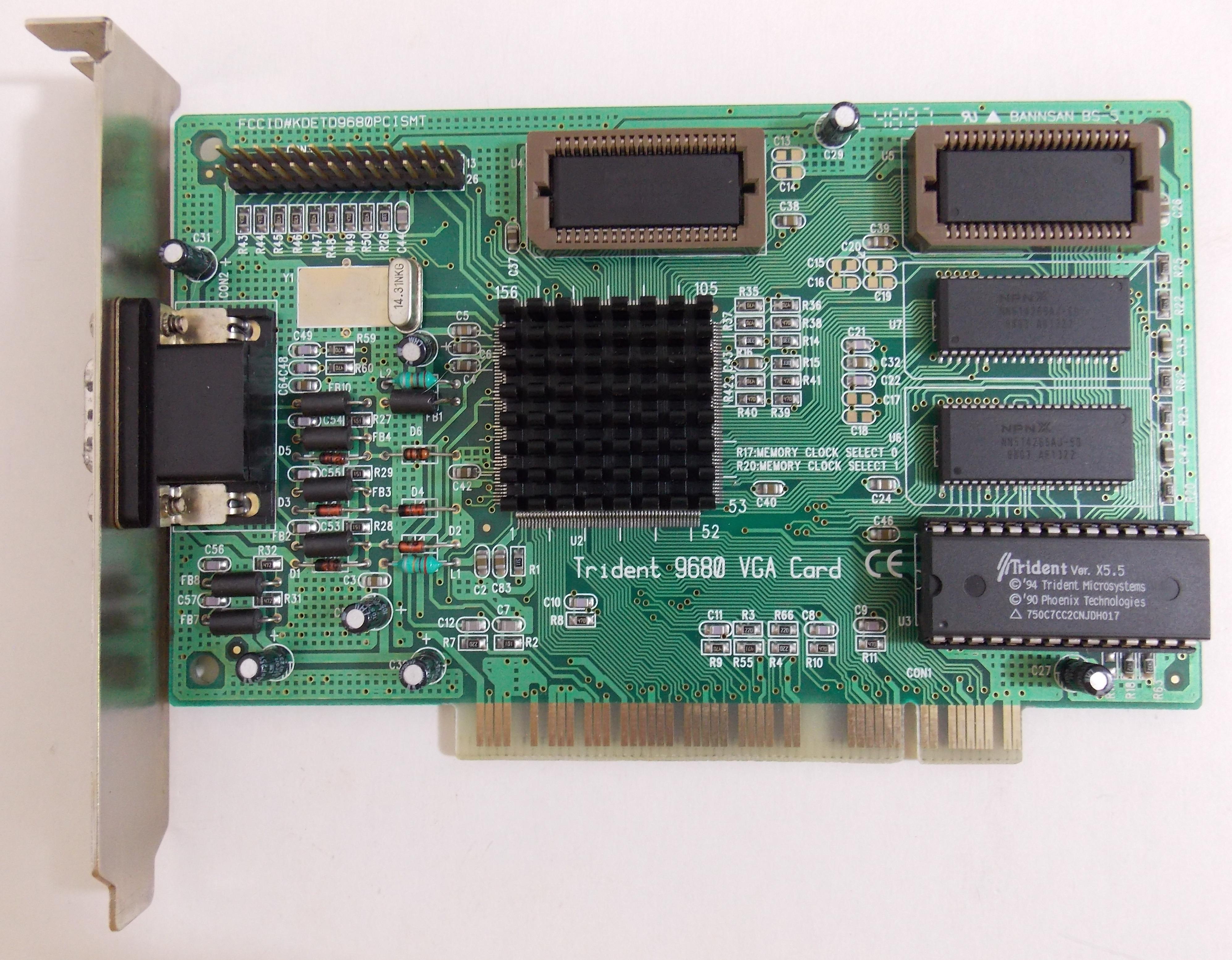

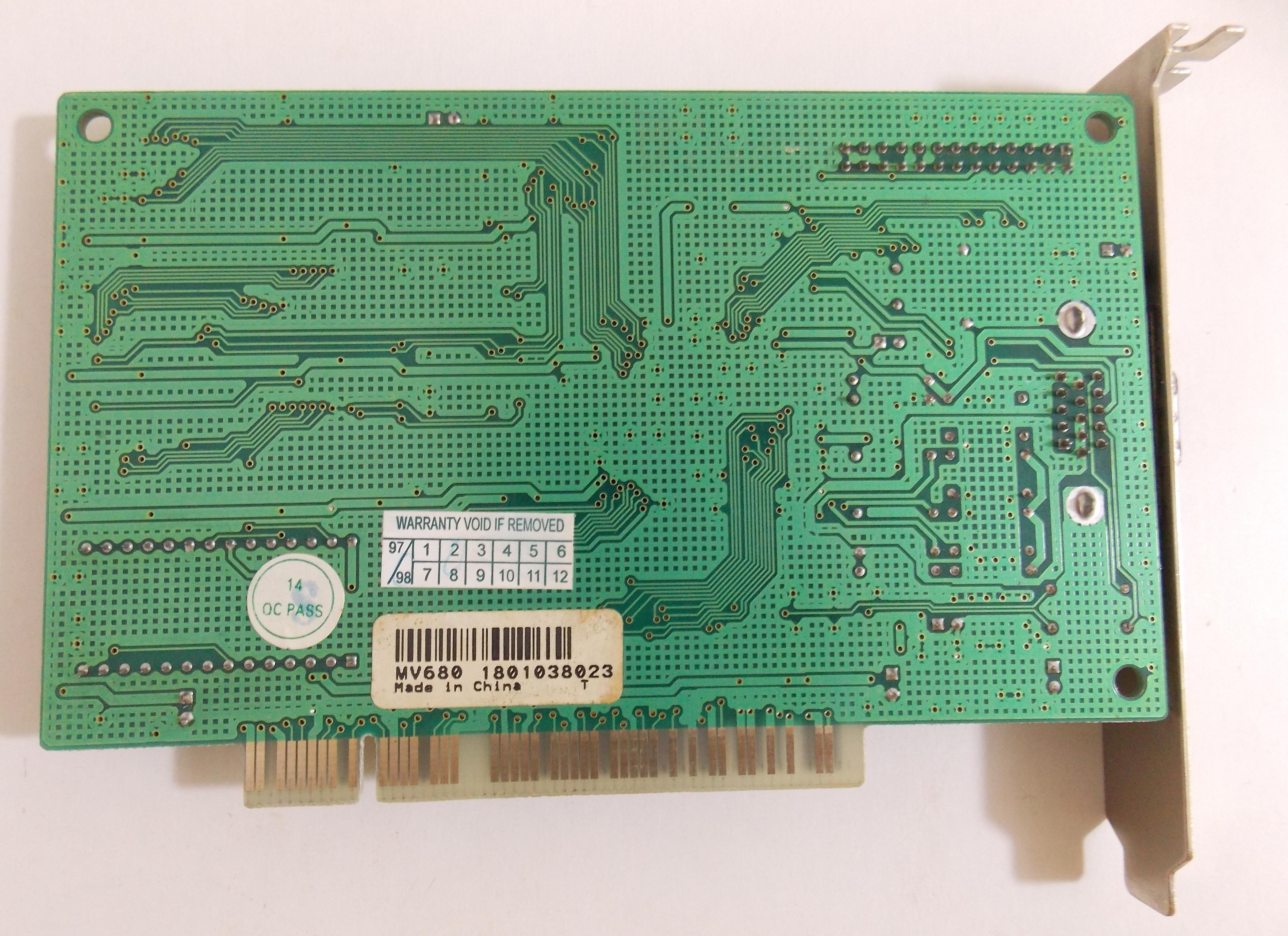

QDI [XVGA] TVGA9680 PCI/SMT
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9680
fccFCC ID
KDETD9680PCISMT
ramRAM size
1MB2MB
chip Chips and specs
-> Video
MTL
Data Bus PCI
Card Type Video card
Video Chip Set 9680
Maximum Video Memory 2MB DRAM
Video Types Supported XVGA
Highest Resolution Supported 1600 x 1200

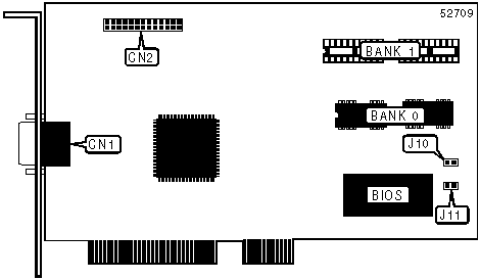

portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-16T15:03:47Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
TX1.3 (01)
OS support
OS/2 Warp 3.x
Arch
x86
Size
1.1MB
Filename
Name
Version
1.0 / 3.01.04
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
3.5MB
Filename
Name
Version
1.30.02 / UX6.0
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
3.1MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
