QDI VISION QD6580/8663A
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> IDE ctrl.
QDI QD6580 (Vision QD6580)
-> Signal transmitter/receiver
Winbond W83768F (I/O coupler) UMC UM8667 (2 Port RS-232 Driver/Receiver)
-> Super I/O
UMC UM8663 Winbond W83757
MTL
Data Bus 32-bit VESA Local Bus
Card Size Three-quarter length, half-height card
Hard Drives supported Four IDE (AT) drives
Floppy drives supported Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
2x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
Last updated 2025-07-05T18:32:57Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
104.5KB
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
66.9KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-05-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

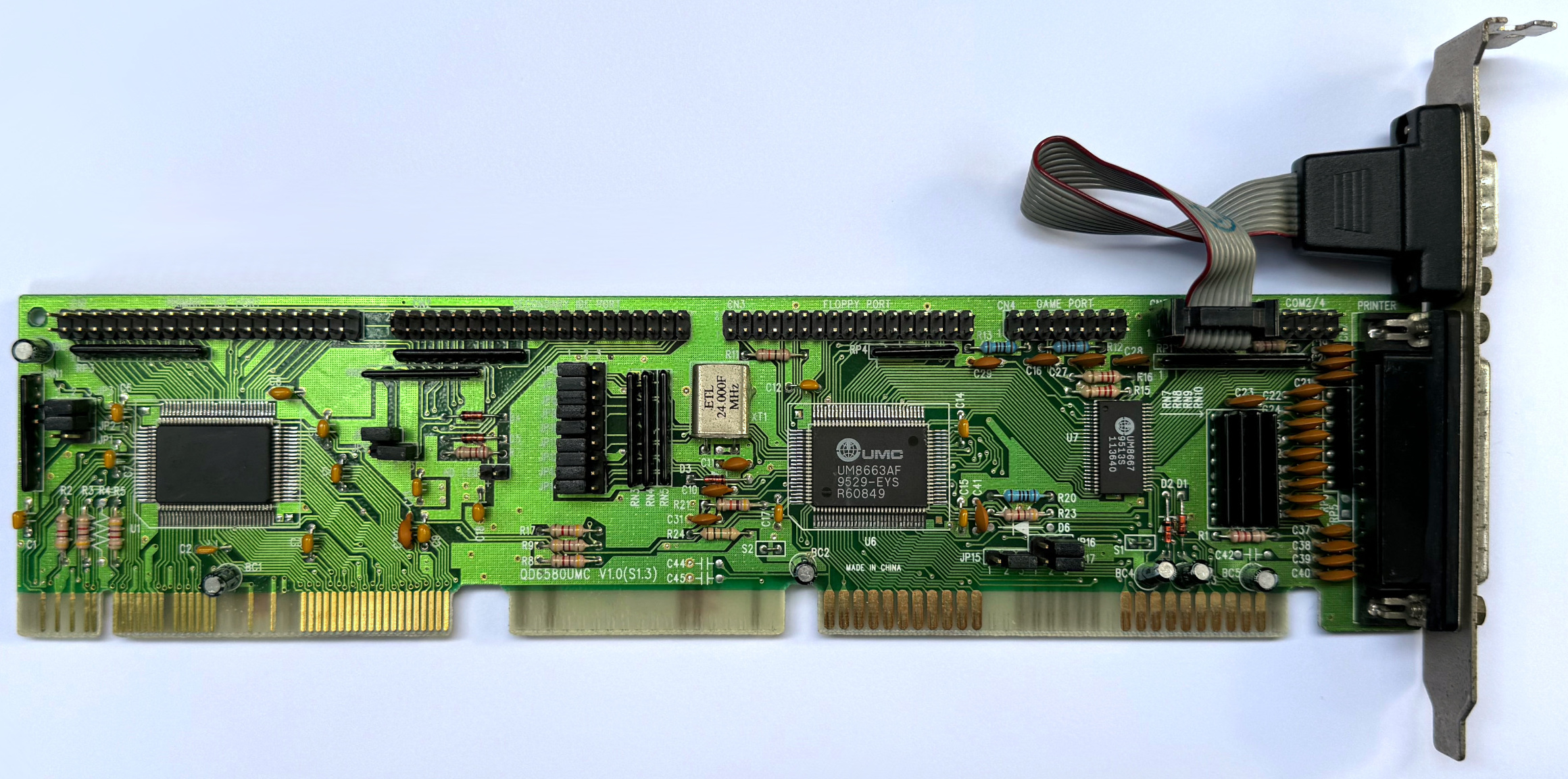

image1 Image 1 of 4 (Microhouse)

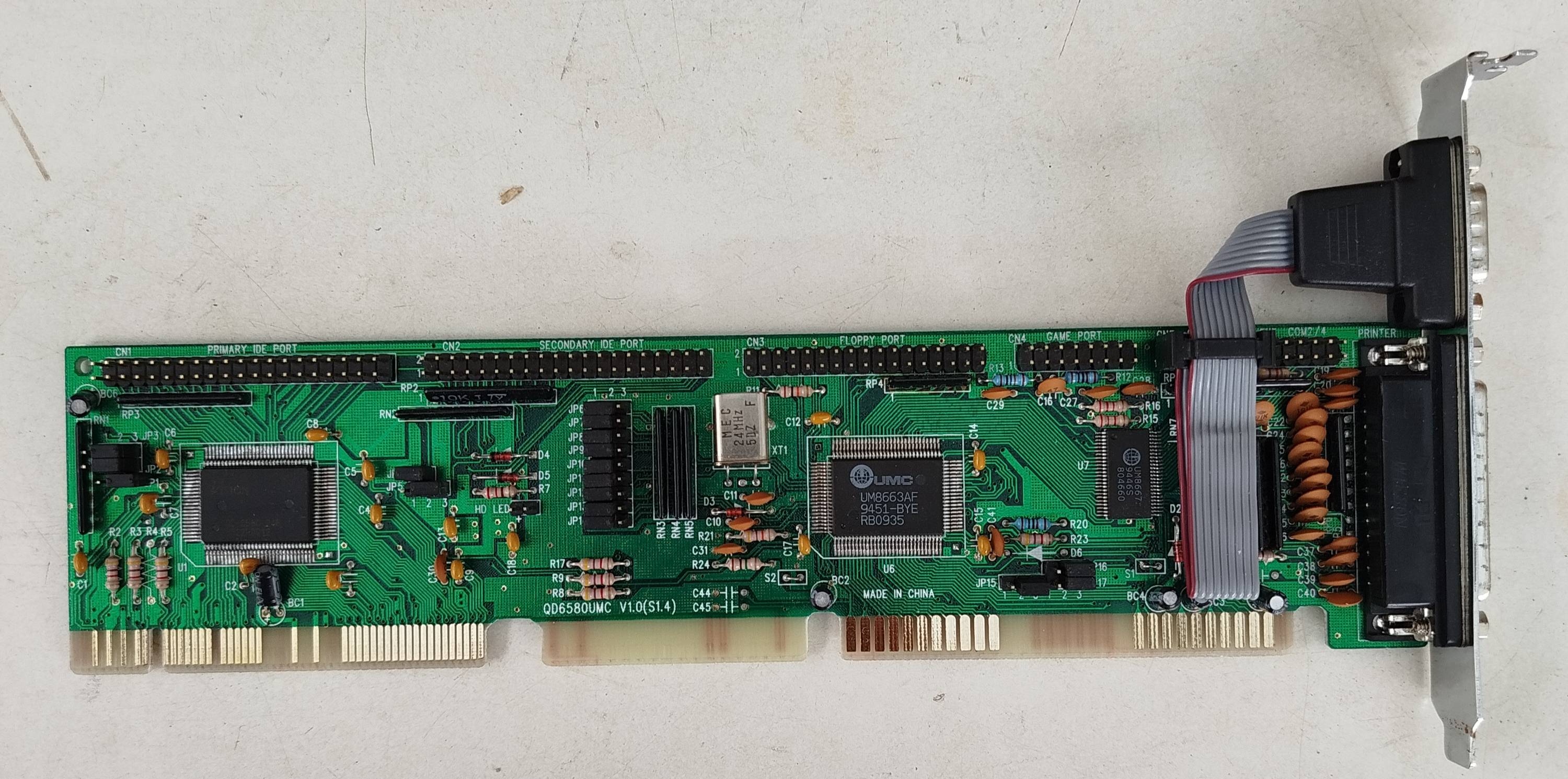

image2 Image 2 of 4 (pshipkov)

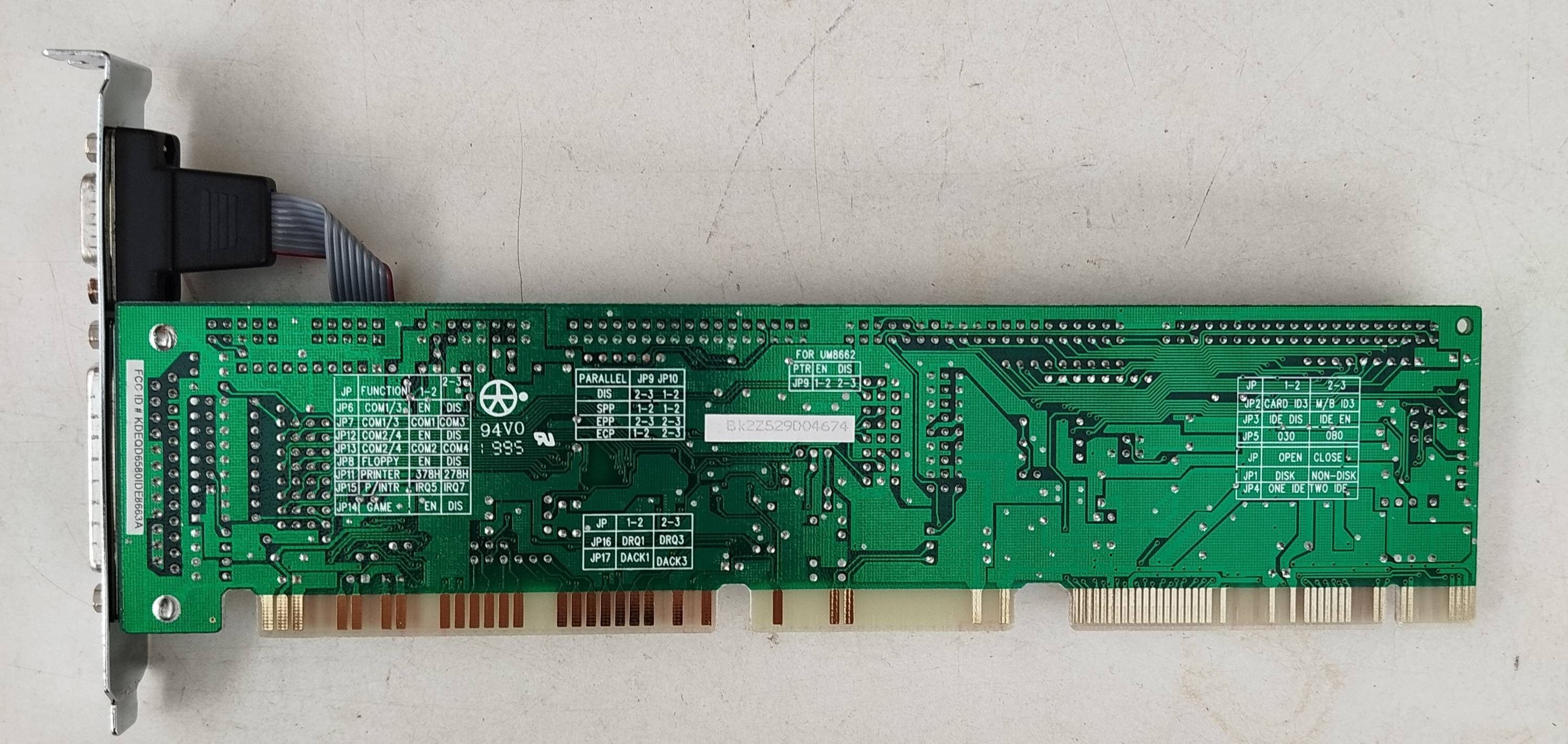

image3 Image 3 of 4 (CircusCat)
image4 Image 4 of 4 (CircusCat)
