QDI QD6580W V2.0
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
datePCI ID
Empty
fccFCC ID
KDE6500VLIDE
chip Chips and specs
-> IDE ctrl.
QDI QD6580 (Vision QD6580)
-> Signal transmitter/receiver
Winbond W83768F (I/O coupler)
-> Super I/O
Winbond W83787F
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
2x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-31T00:12:07Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
104.5KB
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
66.9KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-05-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-04
File
Logs
image1 Image 1 of 7 (Microhouse)
image2 Image 2 of 7 (Elke Wehmer)
image3 Image 3 of 7 (davidg)

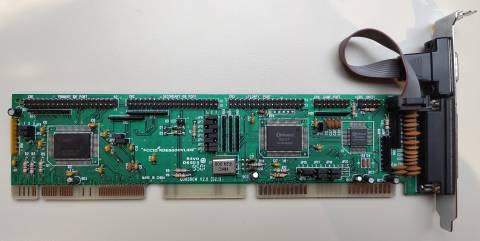

image4 Image 4 of 7 (Amand Tihon)
image5 Image 5 of 7 (davidg)

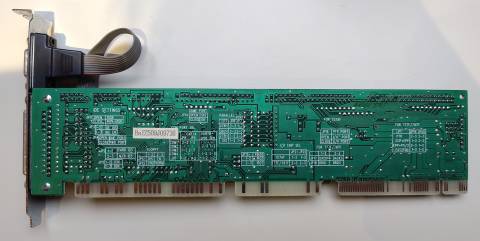

image6 Image 6 of 7 (Amand Tihon)
image7 Image 7 of 7 (davidg)
