QDI QD6580W/757/777/787/797VL
Logs
Type
Floppy controller
Multi I/O
IDE controller
Interface
Signaling
32-bit VLB
Slot height1
PCI IDEmpty
FCC IDKDE6500VLIDE
Chips and specs
-> IDE ctrl.
-> Signal transmitter/receiver
-> Super I/O
| MTL | |
|---|---|
| Size: | Three-quarter length, half-height card |
| Data bus: | 32-bit VL-bus |
| HadProblem | |
| Hard drive supported: | Four IDE(AT) drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Also known as
- QDI QD6580W V2.0
I/O ports
1x
- 2x17 2.54mm pin header, FDD
1x
- 2x8 2.54mm pin header, Game port
2x
- 2x20 2.54mm pin header
1x
- DB-25, ECP/EPP
1x
- DE-9, RS-232
1x
- 2x5 2.54mm pin header, RS-232
Power connectorsEmpty
Last updated 2025-12-08T15:39:50Z
No BIOS files available
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Arch
x86
Size
104.5KB
Filename
Version
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Arch
x86
Size
66.9KB
Filename
2 card documents available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 2 (Microhouse)

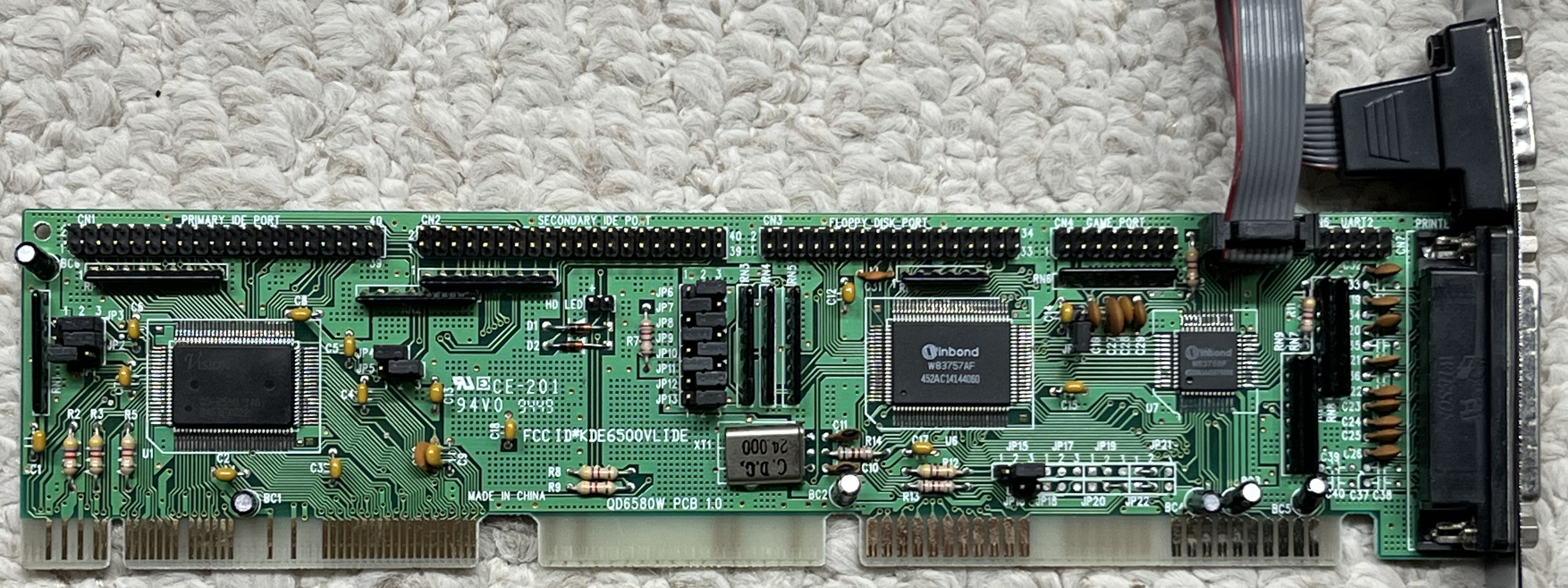

Image 2 of 2 (Douglar)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
