PureTek PT-2037
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
datePCI ID
Empty
fccFCC ID
H52PT-2037
ramRAM type
DRAM
ramRAM size
1MB
chip Chips and specs
-> RAMDAC
UMC UM70C178
-> Video
UMC UM85C418F
portintI/O ports
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-07-21T21:08:34Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
1.05
Note
1993-06-10
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Linux (Kernel version 2.2.x) Linux (Kernel version 2.4.x)
Arch
x86
Size
2.5MB
Filename
Name
Version
1.07
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
8.9KB
Filename
doc No card documents available

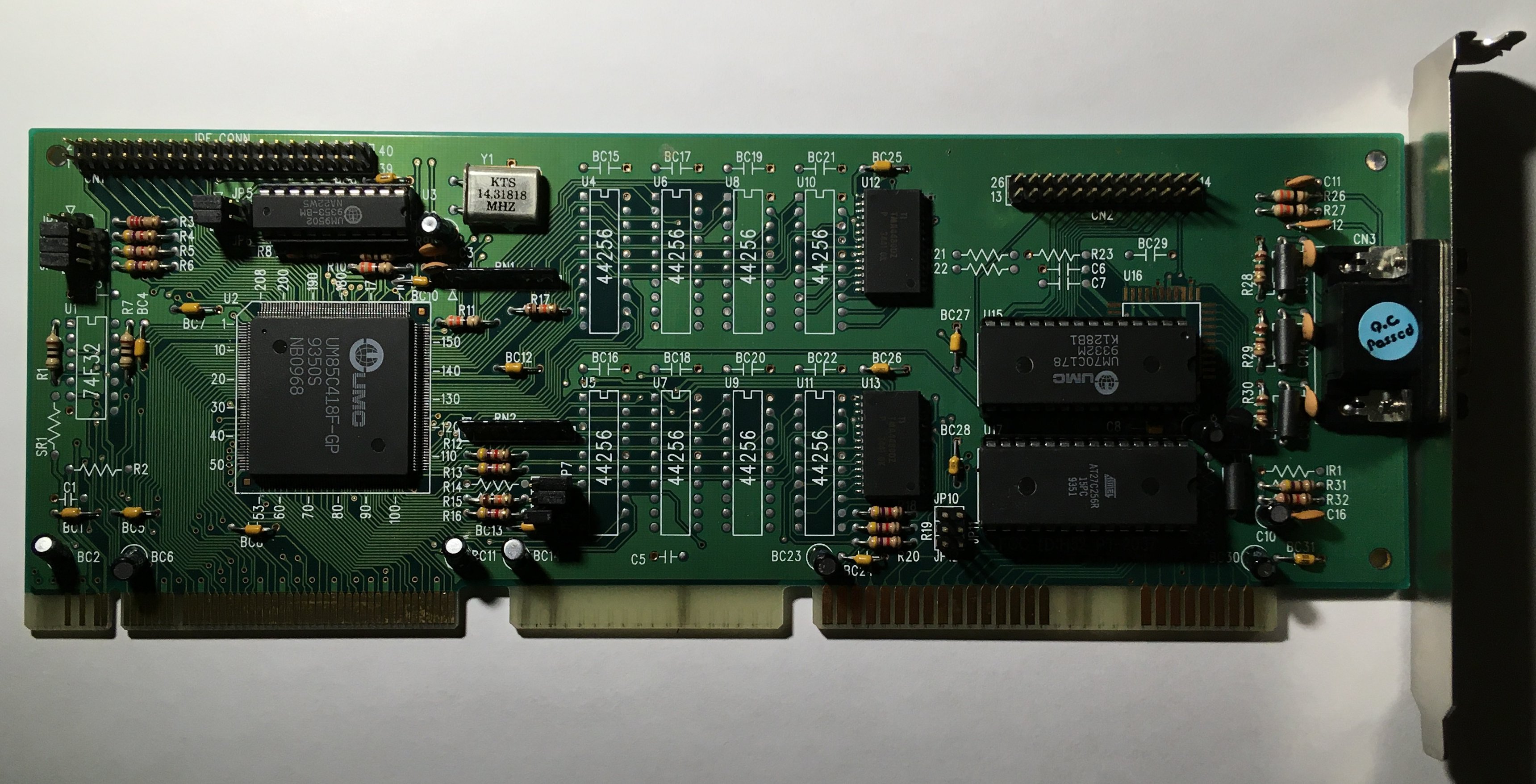

image1 Image 1 of 2 (jakethompson1)

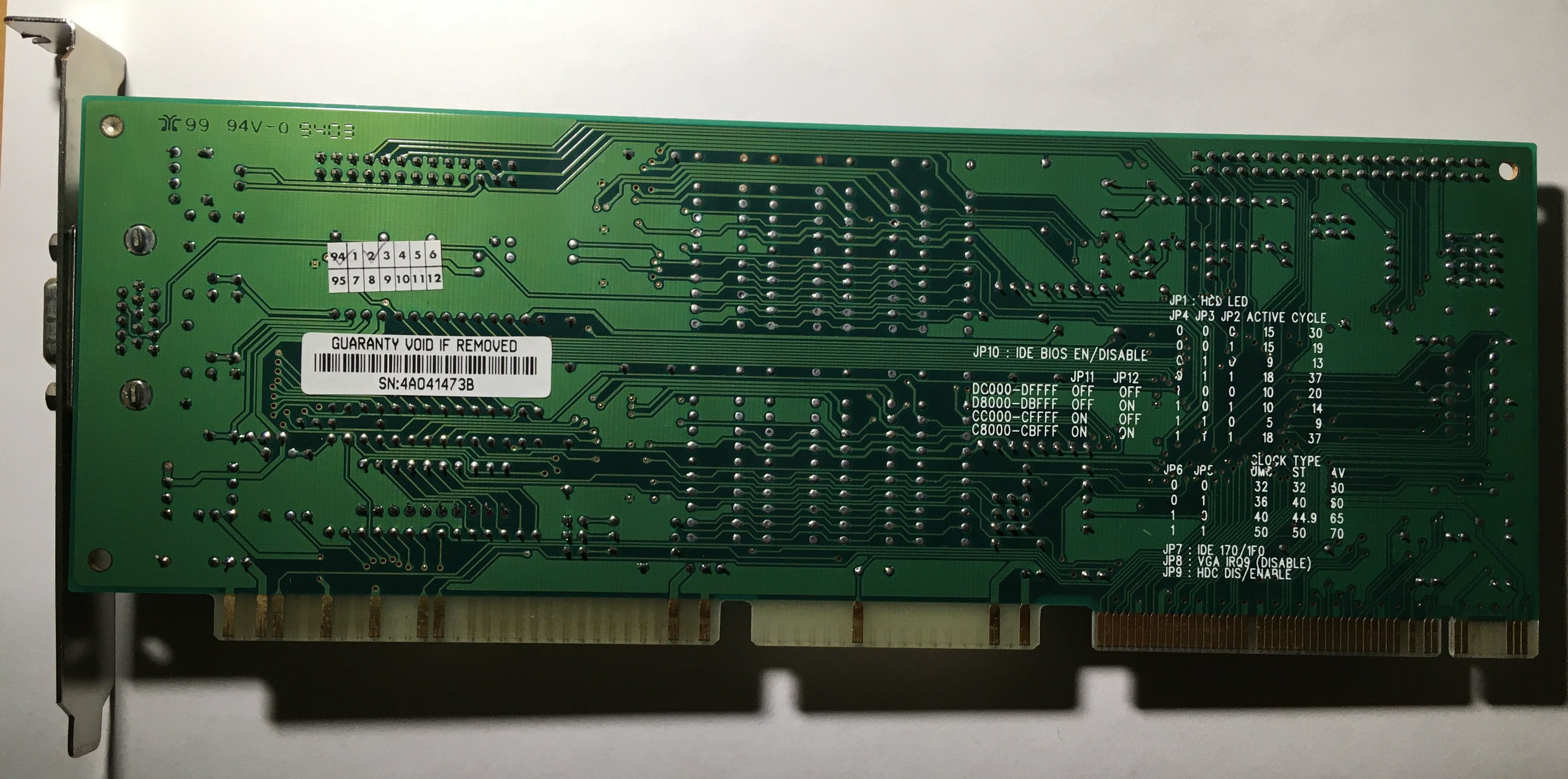

image2 Image 2 of 2 (jakethompson1)
