Promise (PTI) UltraPromise-2 Amigo
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
1MB
dimDimensions
230mm (length) x 100mm (height)
chip Chips and specs
-> Audio
Gravis GF1 ICS ICS2101 (Digitally Controlled Audio Mixer) Gravis GF1D1 (Interface Glue Logic)
MTL
Card Type Sound card
I/O Options Game port, MIDI port, line in, mic in, line out, speaker, volume control, CD-ROM interface (4), SCSI interface, SCSI-2 interface
Maximum Dram N/A
portintI/O ports
2x
  • 3.5mm TRS jack, Stereo audio in
2x
  • 3.5mm TRS jack, Stereo audio out
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15, Game port
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
notes Notes

Weird RAM arrangement: 512K SOJ-40 (256k x 16) + 2x128K soldered + 2x 128K DIP = 1MB

Last updated 2025-11-14T19:35:29Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1994-09-30
File
Logs
image1 Image 1 of 2 (weedeewee)

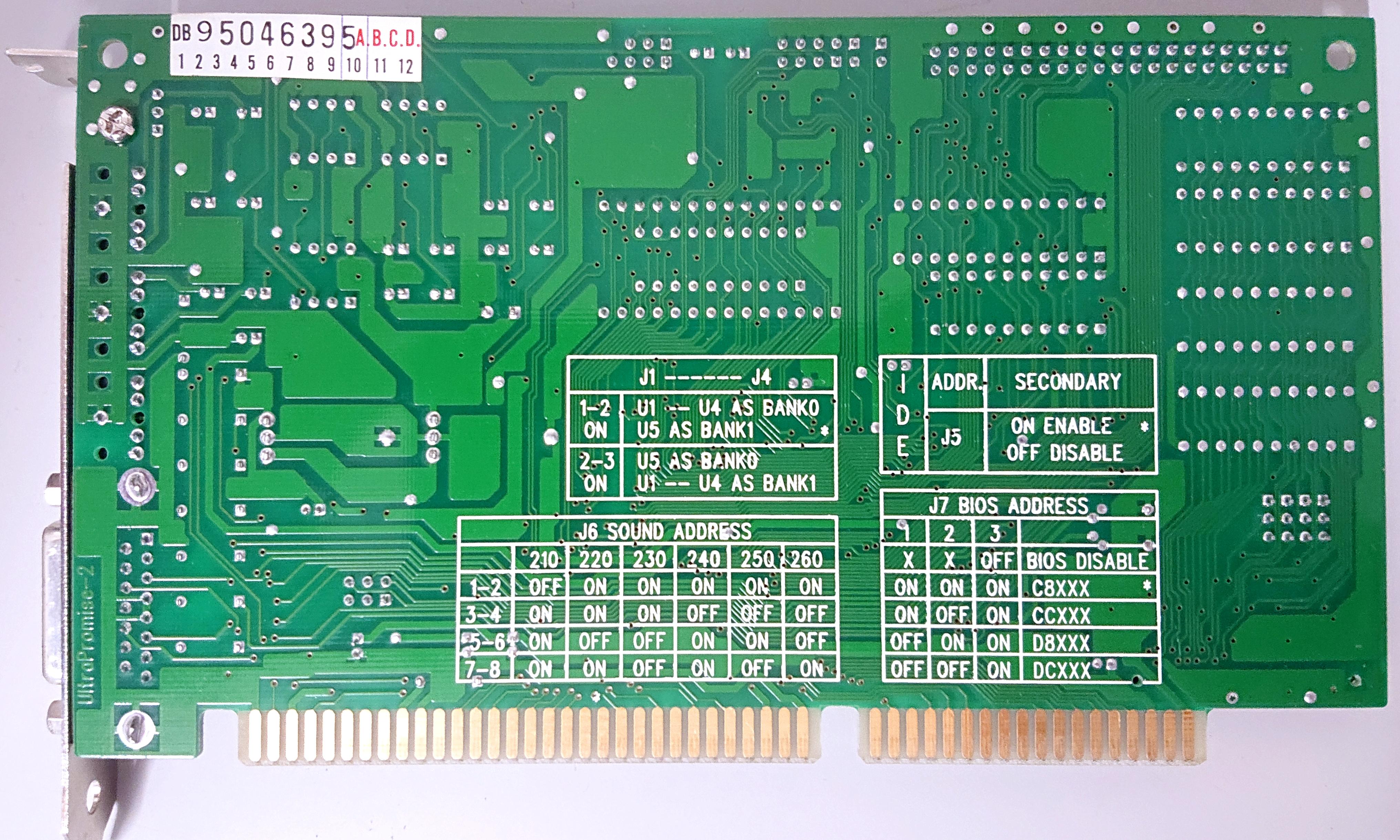

image2 Image 2 of 2 (weedeewee)
