Promise (PTI) FastTrak TX2000
Logs
typeType
IDE controller RAID controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
6269
chip Chips and specs
-> RAID ctrl.
Promise (PTI) PDC20271 (FastTrak TX2000)
MTL
Boot ROM Available
Data Bus 32-bit PCI
Card Size Half-length, half-height card
Card Type Hard drive controller card
Hard Drives supported Four EIDE drives
Floppy drives supported None
portintI/O ports
2x
  • 2x20 2.54mm pin header, ATA/ATAPI-4 (Ultra ATA/33), ATA/ATAPI-5 (Ultra ATA/66), ATA/ATAPI-6 (Ultra ATA/100), ATA/ATAPI-7 (Ultra ATA/133)
powerPower connectors
Empty
notes Notes

partial support on PCI2.1 slots, full support on PCI 2.2/2.3 slots.

Last updated 2025-11-28T11:00:04Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
2.00.33
Note
Promise
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.0.0.33
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
264.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs

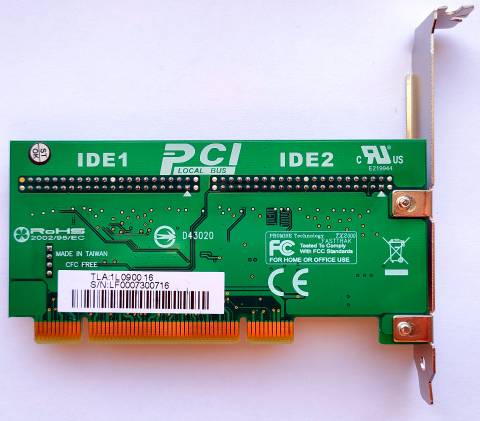

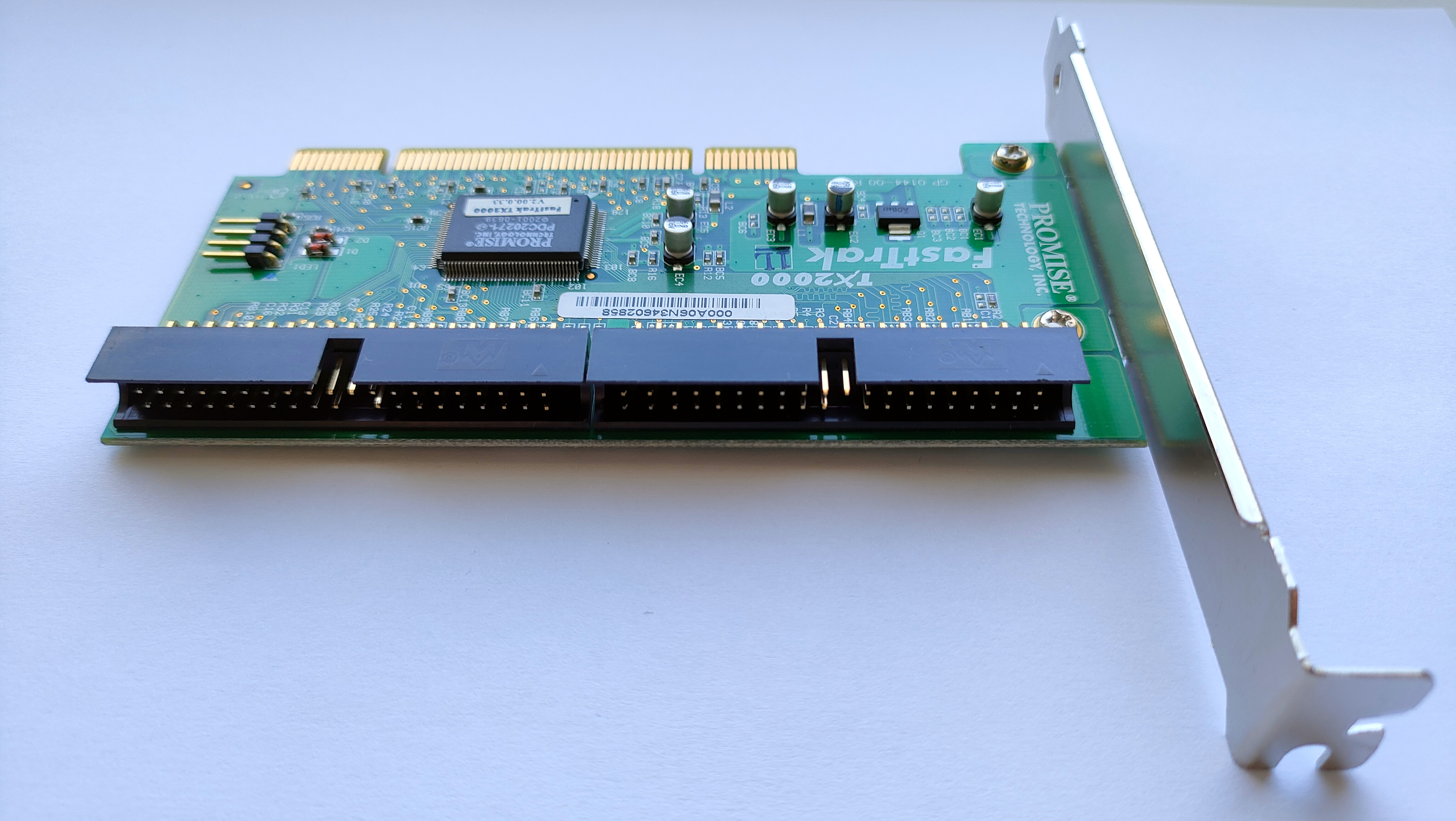

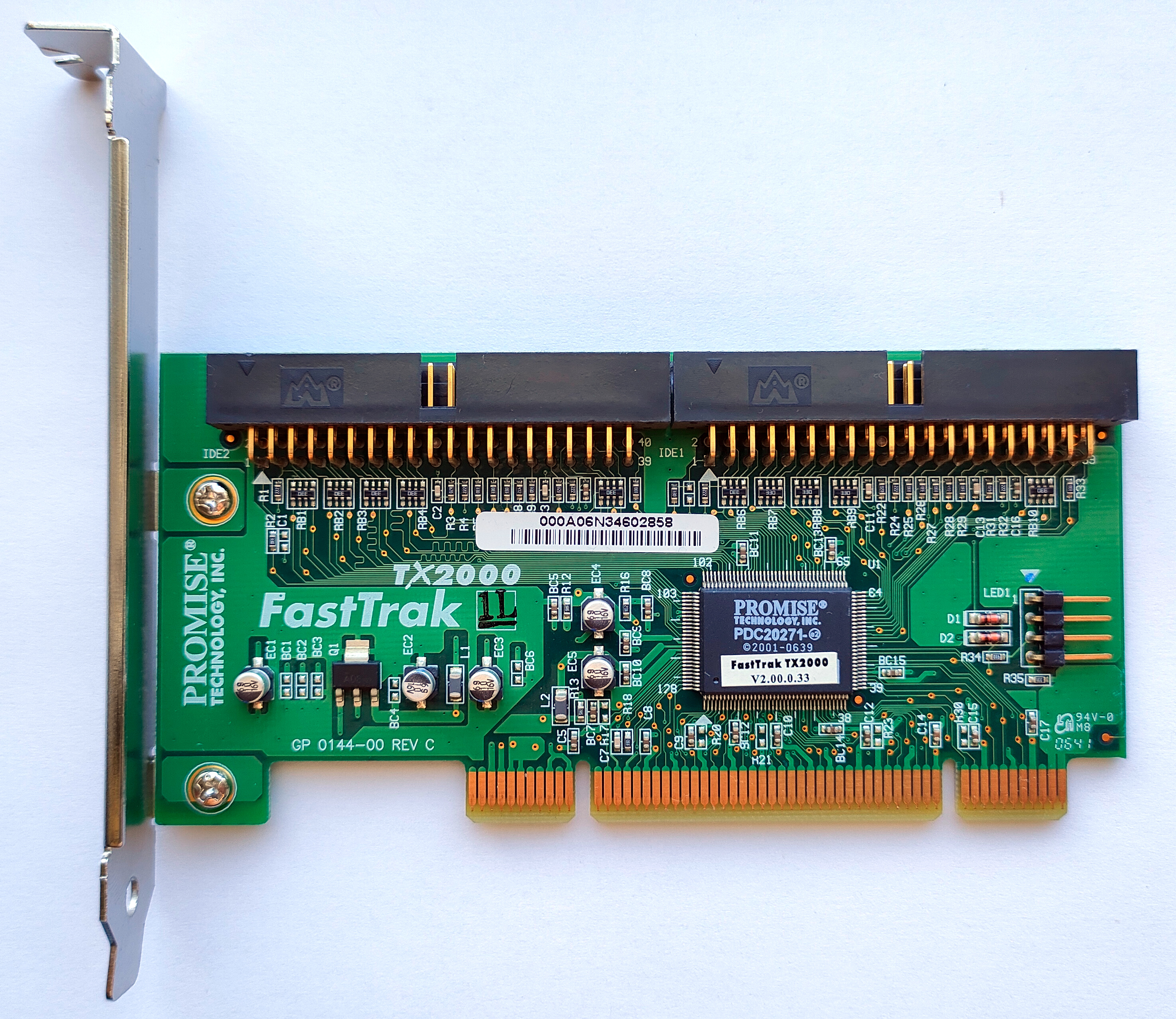

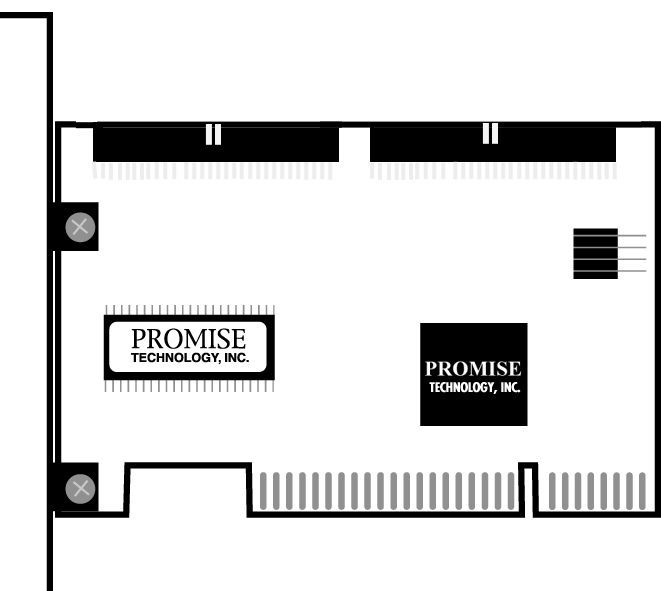

image1 Image 1 of 4 (Promise (PTI))
image2 Image 2 of 4 (crizalis)
image3 Image 3 of 4 (crizalis)
image4 Image 4 of 4 (crizalis)
