Promise (PTI) EIDEPRO
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
JJLEIDEPRO
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) 75185 / 75232 (RS-232 Driver/Receiver)
-> Super I/O
LGS/Goldstar/Semicon GM82C803B (Prime3B SIO)
MTL
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Hard Drives supported Four EIDE drives
Floppy drives supported Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
2x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-08T17:24:31Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
2.0
Note
Promise EIDEPRO
File
Logs
Version
1.03
Note
Promise EIDEPRO
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
Windows 3.1x
Arch
x86
Size
200.5KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs

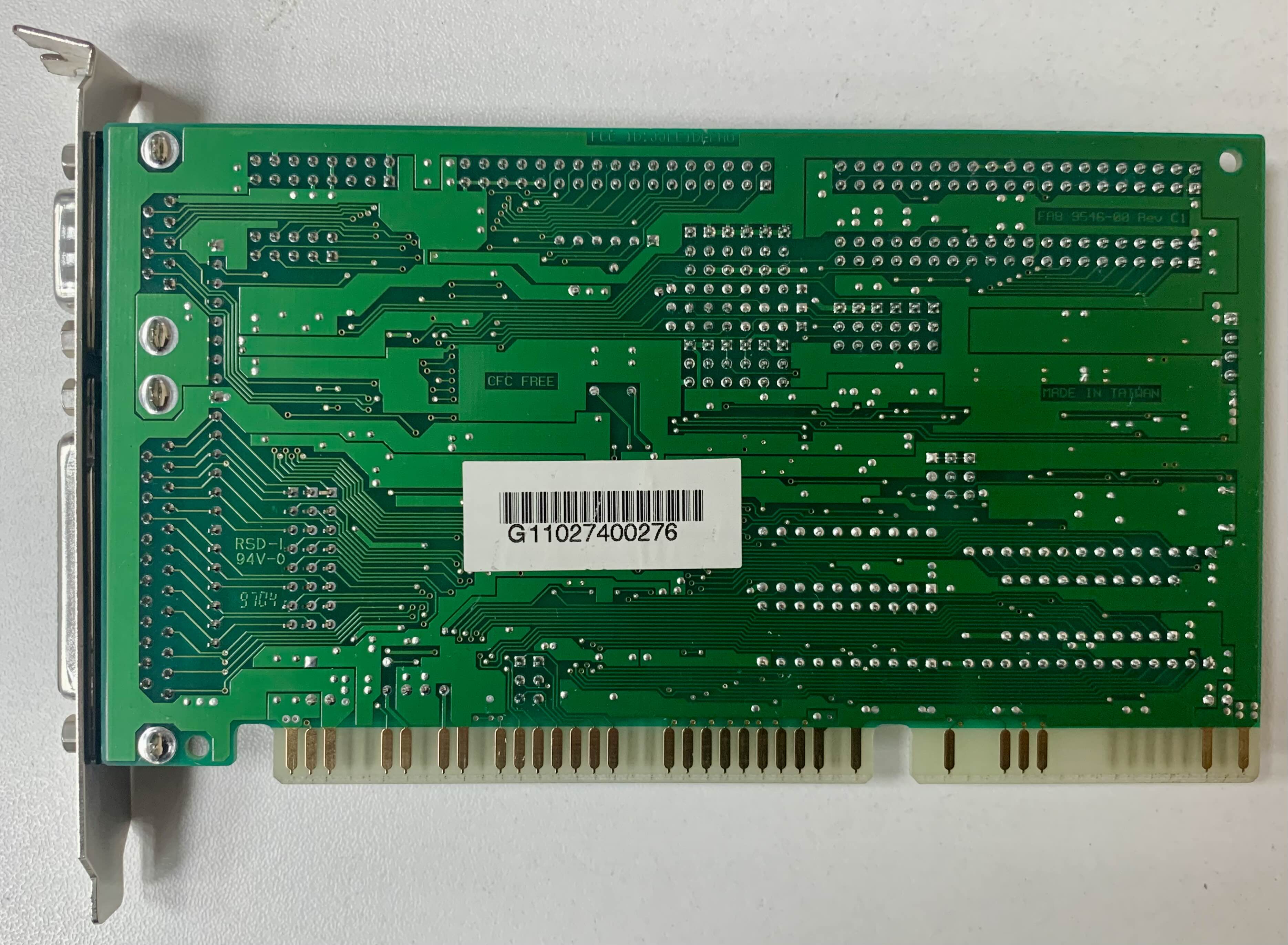

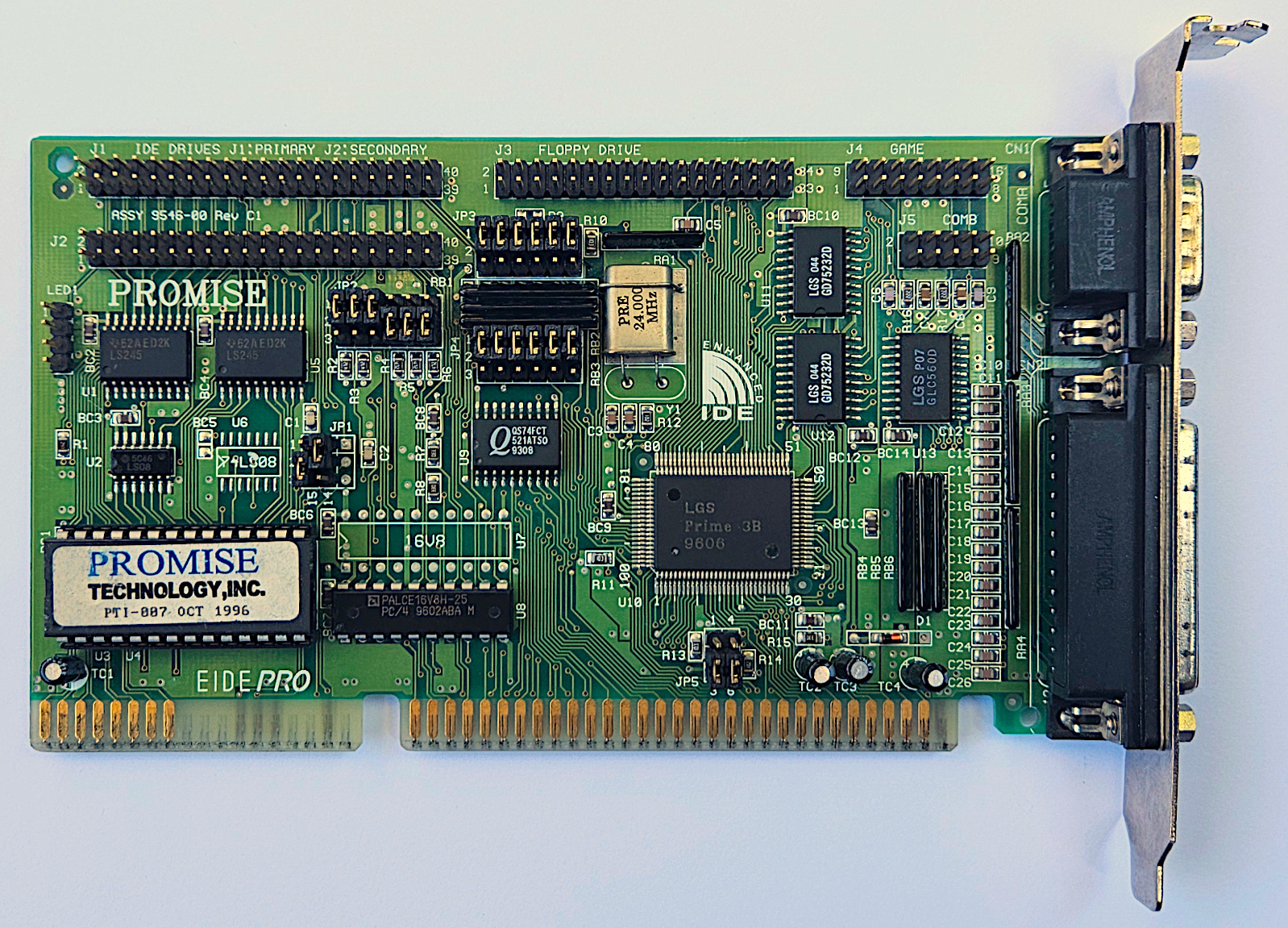

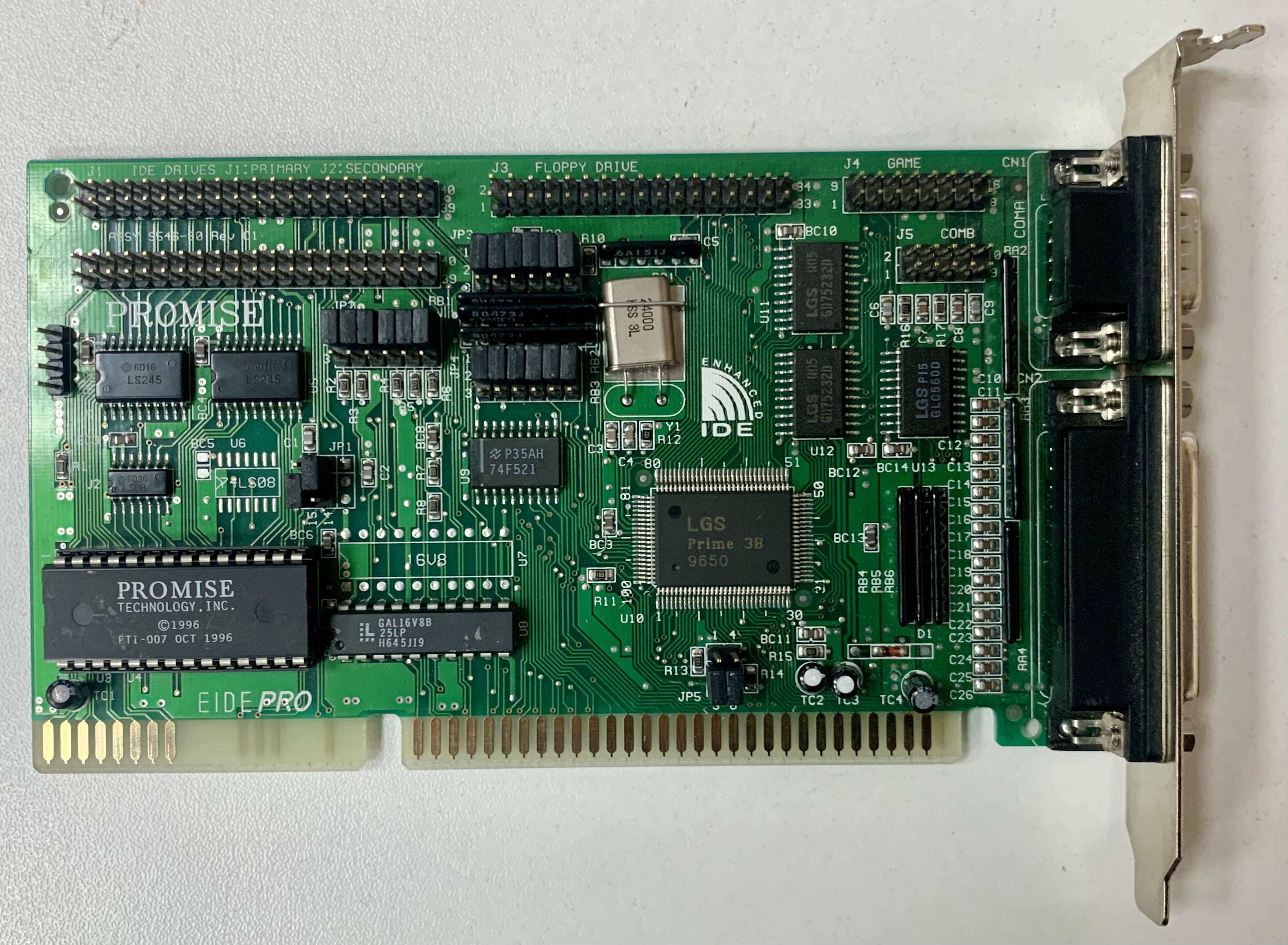

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (pshipkov)
image3 Image 3 of 4 (Babasha)
image4 Image 4 of 4 (Babasha)
