Promise (PTI) EIDE4030PLUS
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> IDE ctrl.
Promise (PTI) PDC20230C (VESA Local Bus IDE Controller) Promise (PTI) PDC20130A
-> Miscellaneous
Promise (PTI) PDC20330A
-> Processor
Harris 286 (CS80C286-20)
-> Signal transmitter/receiver
Winbond W83758P (I/O Coupler)
-> Super I/O
SMSC/SMC FDC37C666GT
MTL
Size: Three/quarter-length, full-height card
Data bus: 32-bit VESA local bus
HadProblem
Hard drive supported: Four IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, 1.44MB drives
Microarchitecture
Core
Bus speed 20MHz
Frequency 20MHz
Multiplier 1x
Power
Voltage 5V
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
3x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
notes Notes
  • Very minor diferences between B1 and B2
    • Capacitor C6 is populated on Rev B1, it is not populated on Rev B2
    • Some unconnected ISA contact pads on the back of the 8bit ISA connector are present on B1 but removed on B2
  • Capacitors TC8 (+12v to Ground ) and TC9 (Ground to -12v) are prone to failure
Last updated 2025-08-22T12:36:53Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
4.6
Note
LBA28 Support
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
v3.3
Note
SIG VG4 BIOS 1995-06-24
File
Logs
Version
v1.16
Note
Promise LBA BIOS 1995-11-24
File
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
13.4KB
Filename
Name
Version
3.3
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 9x
Arch
x86
Size
343.7KB
Filename
Name
Version
2.60
OS support
OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
Size
130.8KB
Filename
Name
Version
3.31
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
339.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
312.1KB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
227KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-05-21
File
Logs

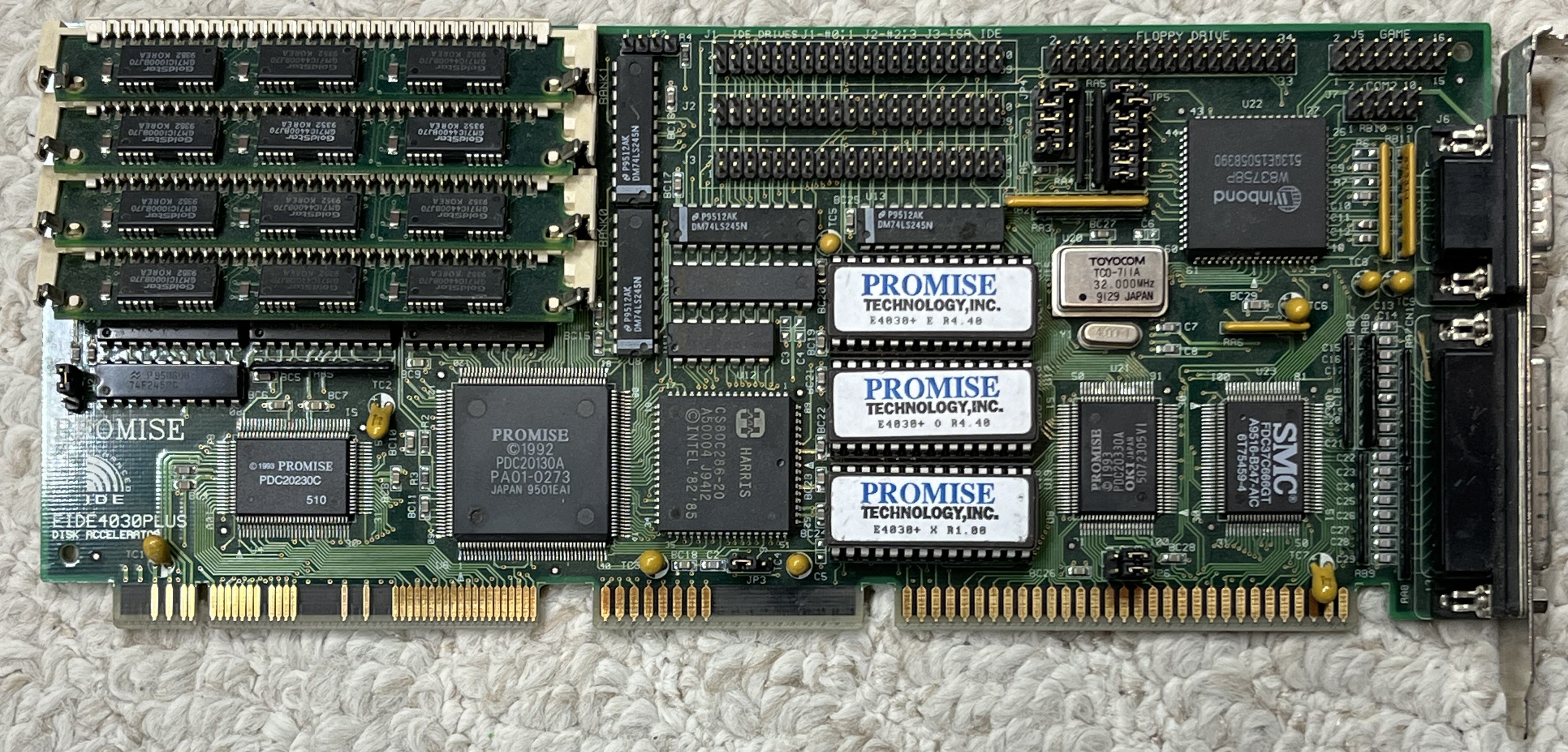

image1 Image 1 of 5 (Microhouse)

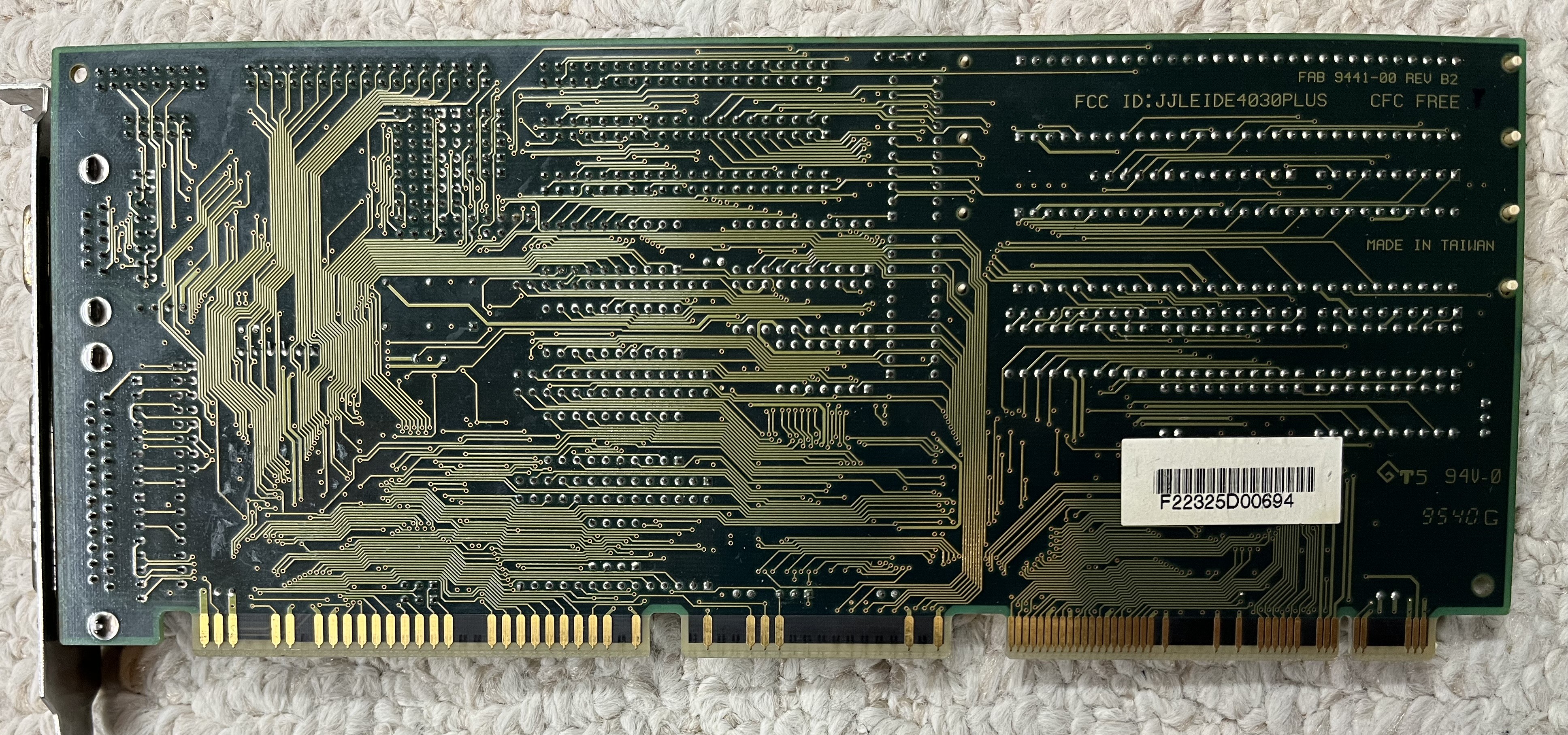

image2 Image 2 of 5 (Douglar)

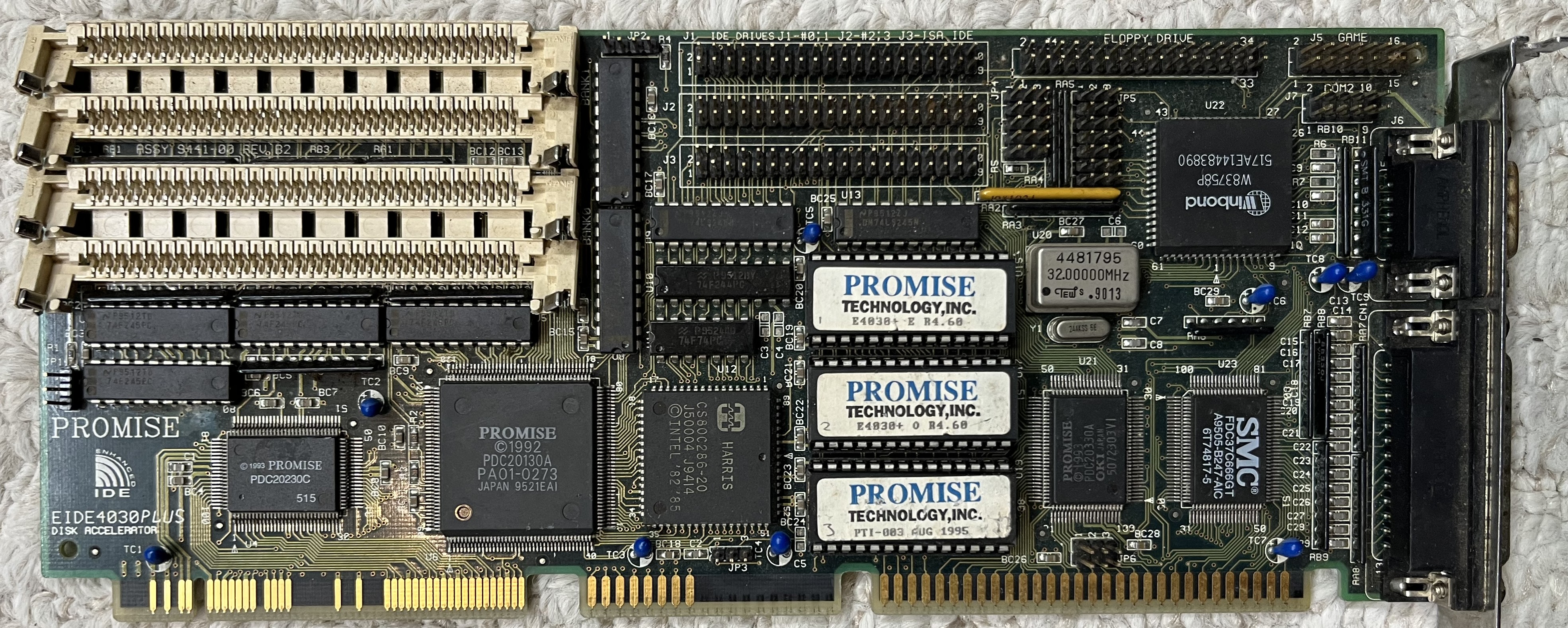

image3 Image 3 of 5 (Douglar)
image4 Image 4 of 5 (Douglar)

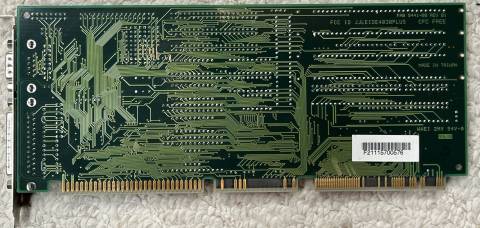

image5 Image 5 of 5 (Douglar)
