Promise (PTI) DC4030VL
Logs
typeType
Floppy controller IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
National Semiconductor PC8477 (Floppy controller)
-> IDE ctrl.
Promise (PTI) PDC20130A
-> Processor
Siemens 286 (SAB80286-16-N)
MTL
Size: Three/quarter-length, full-height card
Data bus: 32-bit, VL-bus
HadProblem
Hard drive supported: Four IDE (AT) Interface drives
Floppy drives supported: Four 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives
Microarchitecture
Core
Bus speed 16MHz
Frequency 16MHz
Multiplier 1x
Power
Voltage 5V
portintI/O ports
2x
  • 2x17 2.54mm pin header, FDD
2x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-09-05T14:49:44Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.3
Note
Promise 4030VL Bios
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
13.4KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-08
File
Logs

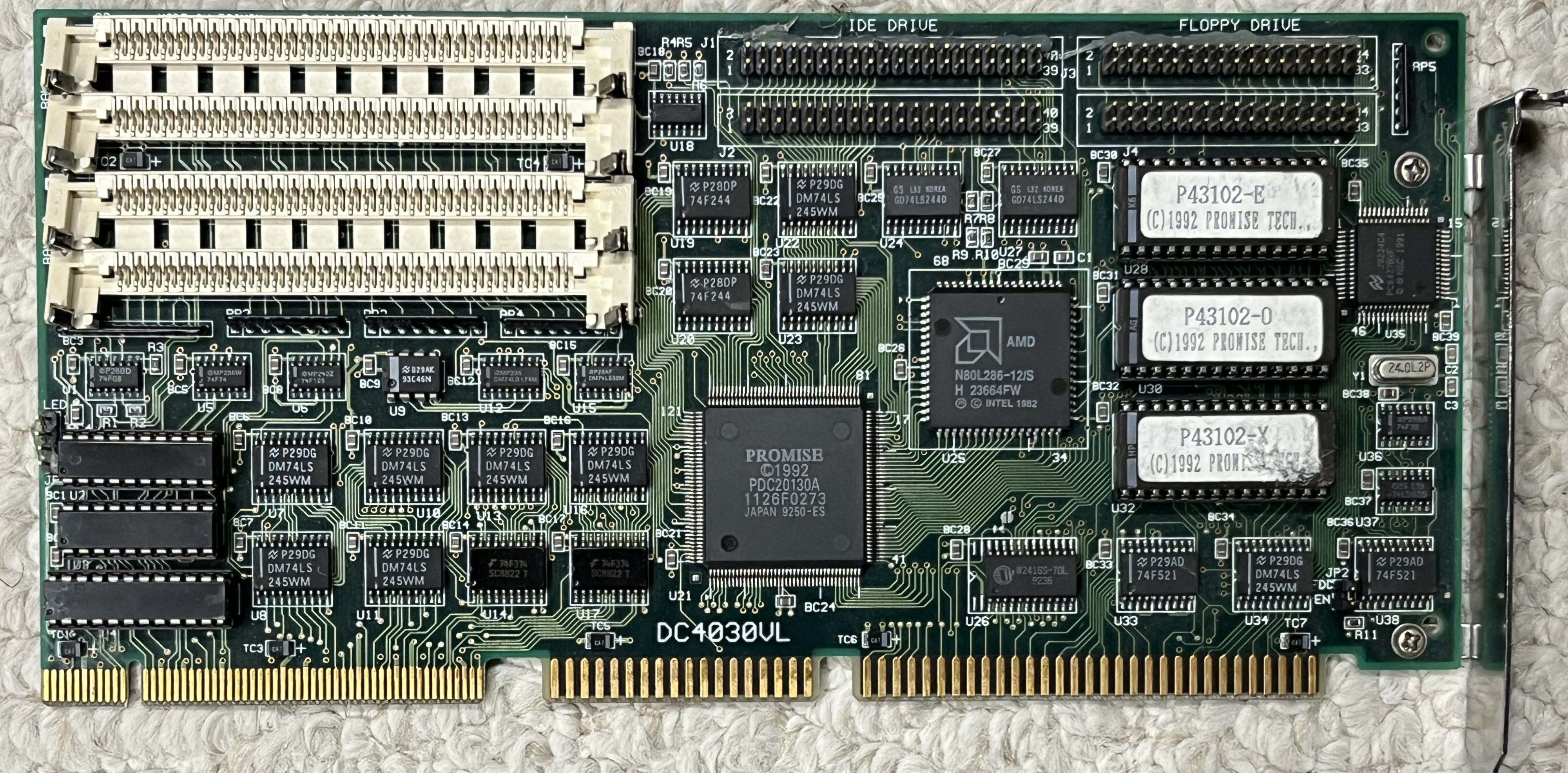

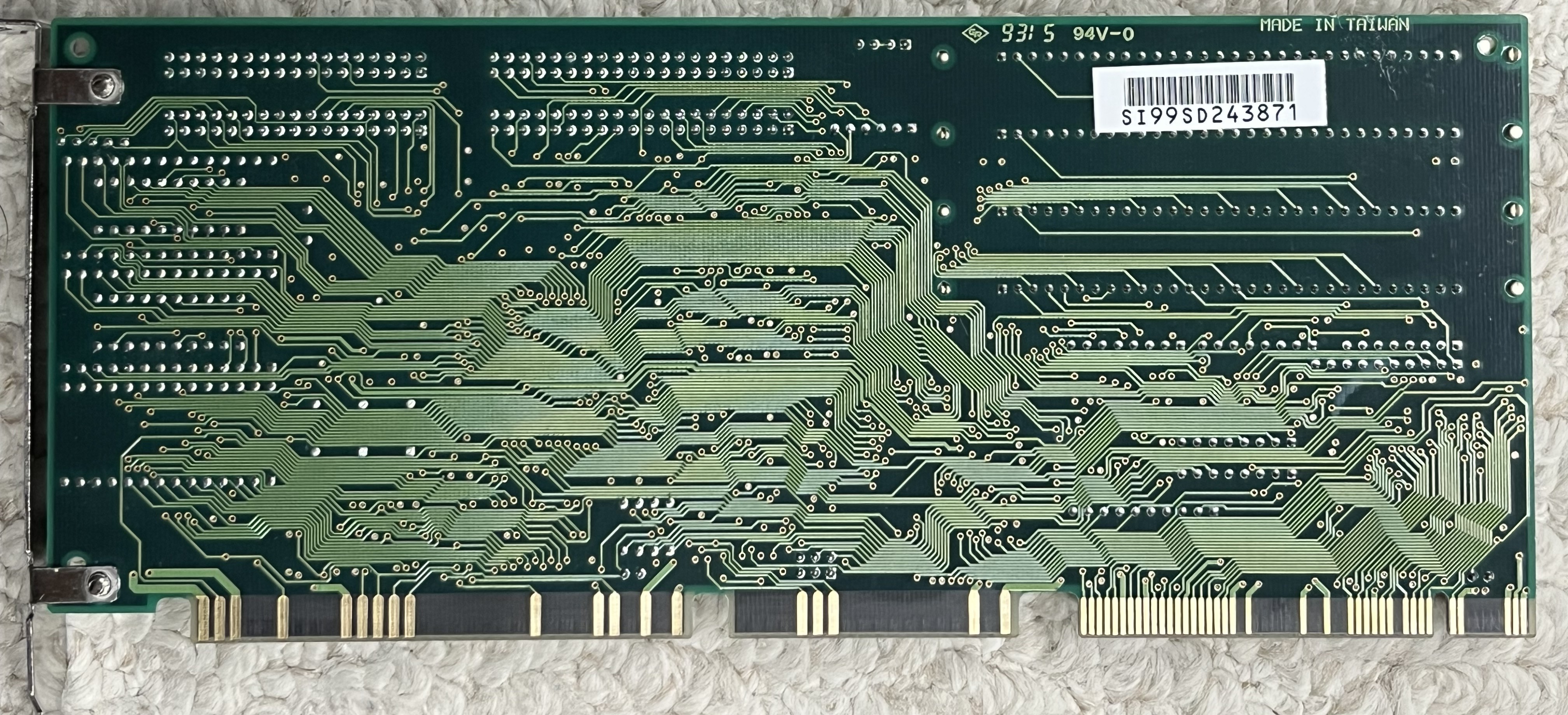

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Douglar)
image3 Image 3 of 4 (Douglar)

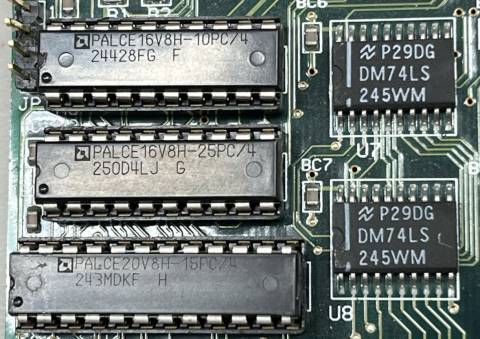

image4 Image 4 of 4 (Douglar)
