Promise (PTI) DC2000VL-3
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
JJLDC2000a
dimDimensions
19 mm (width) x 245mm (length) x 57mm (height)
chip Chips and specs
-> IDE ctrl.
Promise (PTI) PDC20230B (VESA Local Bus IDE Controller)
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-11-14T14:26:15Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.3
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 9x
Arch
x86
Size
343.7KB
Filename
Name
Version
3.31
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
339.6KB
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x OS/2 Warp 3.x SCO Unix - OpenServer Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
312.1KB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
x86
Size
227KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2000-05-21
File
Logs
Chip
Release date
File
Logs

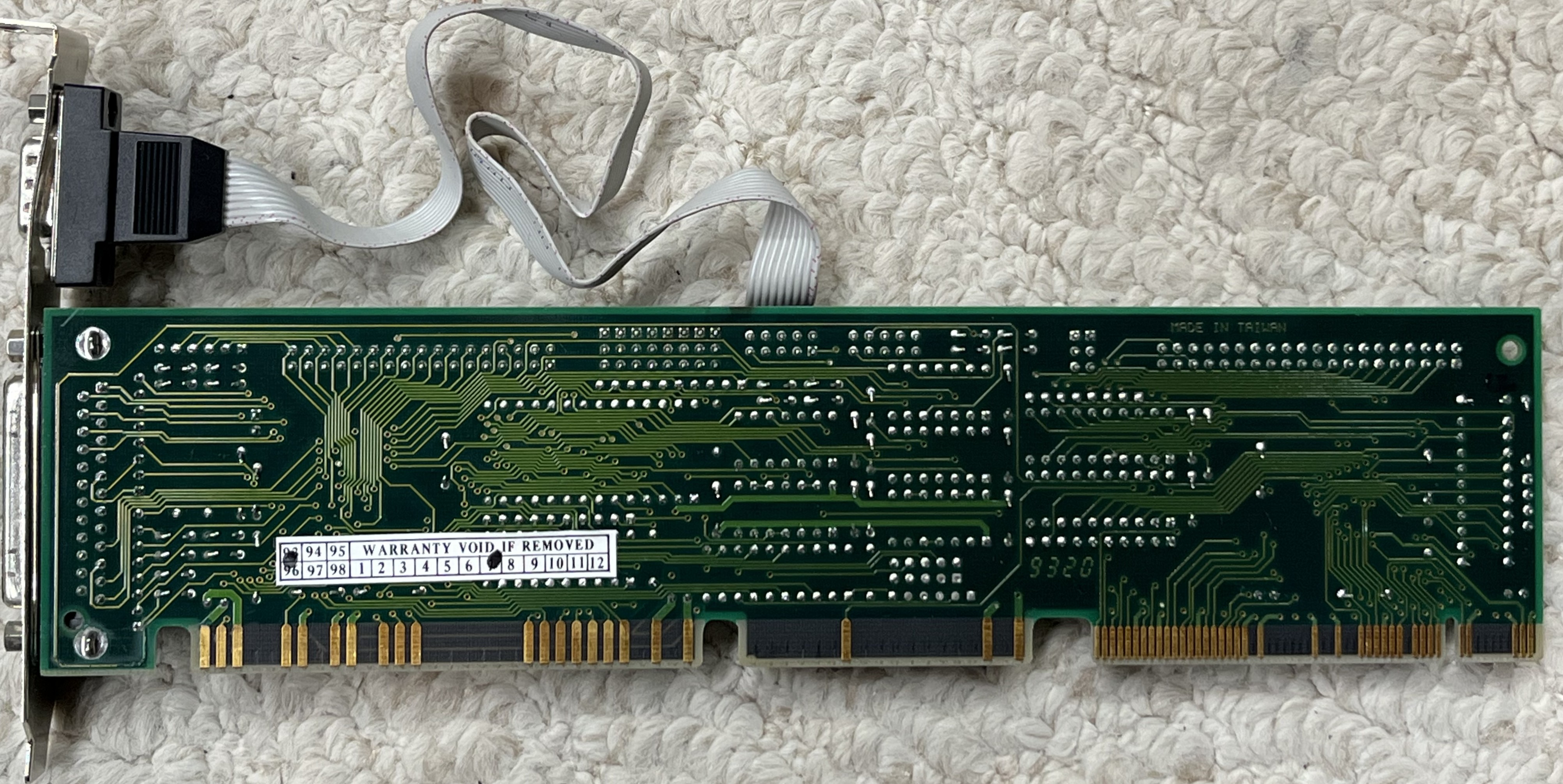

image1 Image 1 of 2 (Douglar)
image2 Image 2 of 2 (Douglar)
