Point Of View GF9800GT 1GB DDR3 HDMI GREEN
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 2.0
datePCI ID
0414 0605 0614 0601
ramRAM type
DDR3
ramRAM size
1GB
chip Chips and specs
-> Video
Nvidia GeForce 9800 GT (G92)
portintI/O ports
1x
  • DVI-I
1x
  • Type A plug
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2026-01-09T23:46:09Z
biosc No BIOS files available
drv No drivers available
doc No card documents available

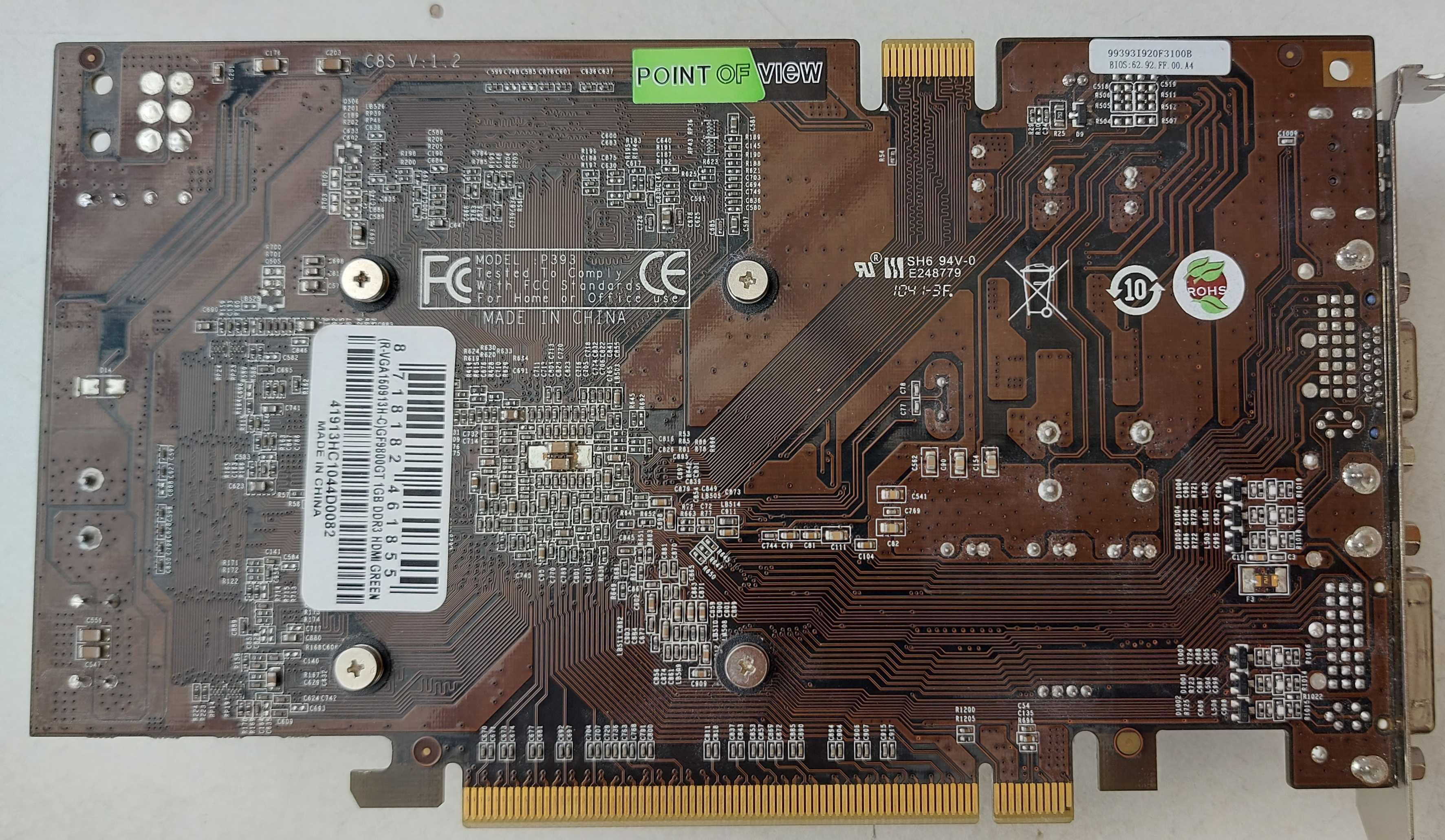

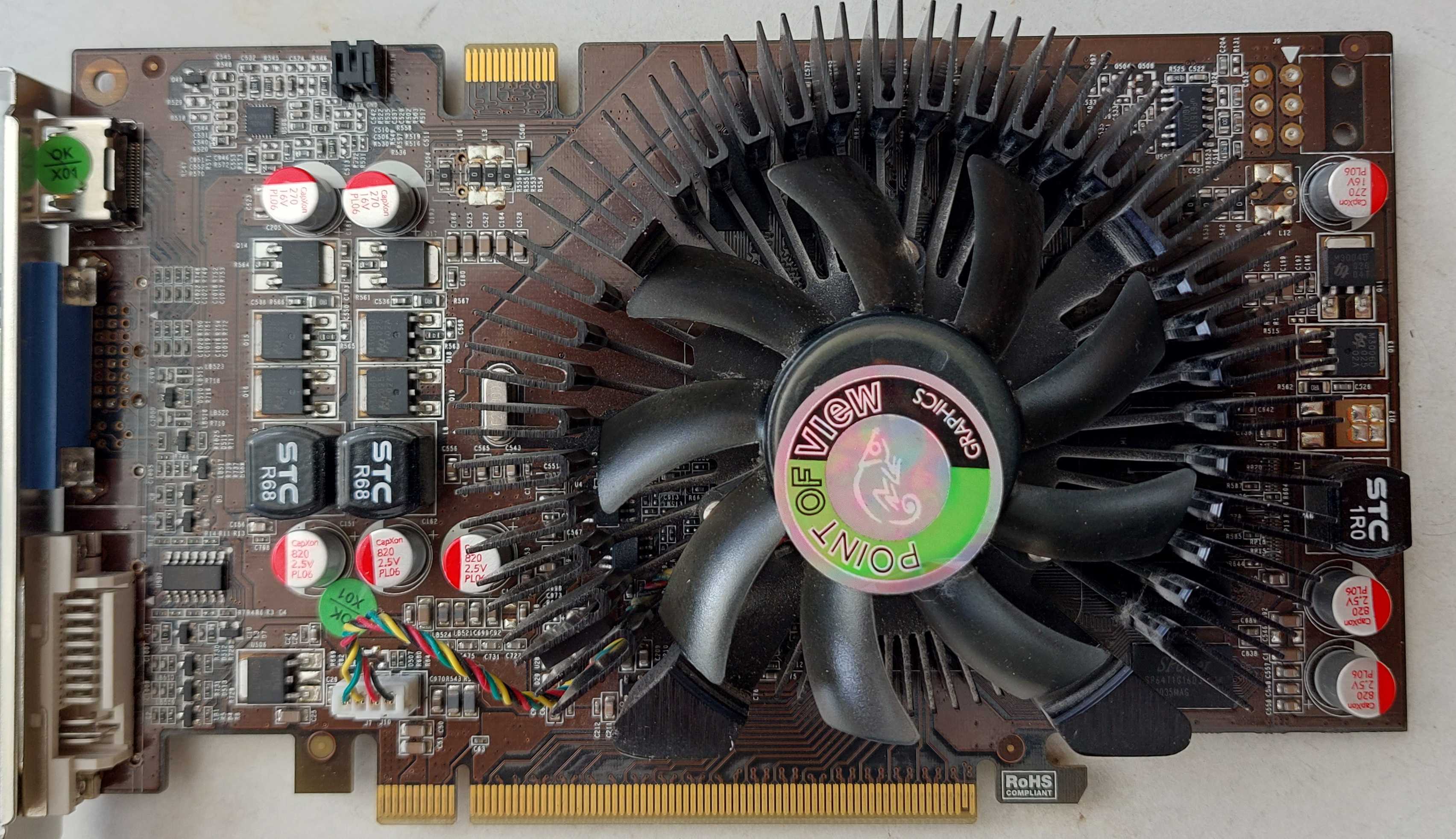

image1 Image 1 of 2 (CircusCat)
image2 Image 2 of 2 (CircusCat)
