PNY GeForce 8400GS DDR2 512MB PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
0404
ramRAM type
DDR2
ramRAM size
512MB
chip Chips and specs
-> Video
Nvidia GeForce 8400 GS (G84)
portintI/O ports
1x
  • DVI-I
1x
  • 4-pin Mini-DIN
1x
  • DE-15
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-12-22T17:27:29Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86-64
Size
48.1MB
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86
Size
36.9MB
Filename
doc No card documents available

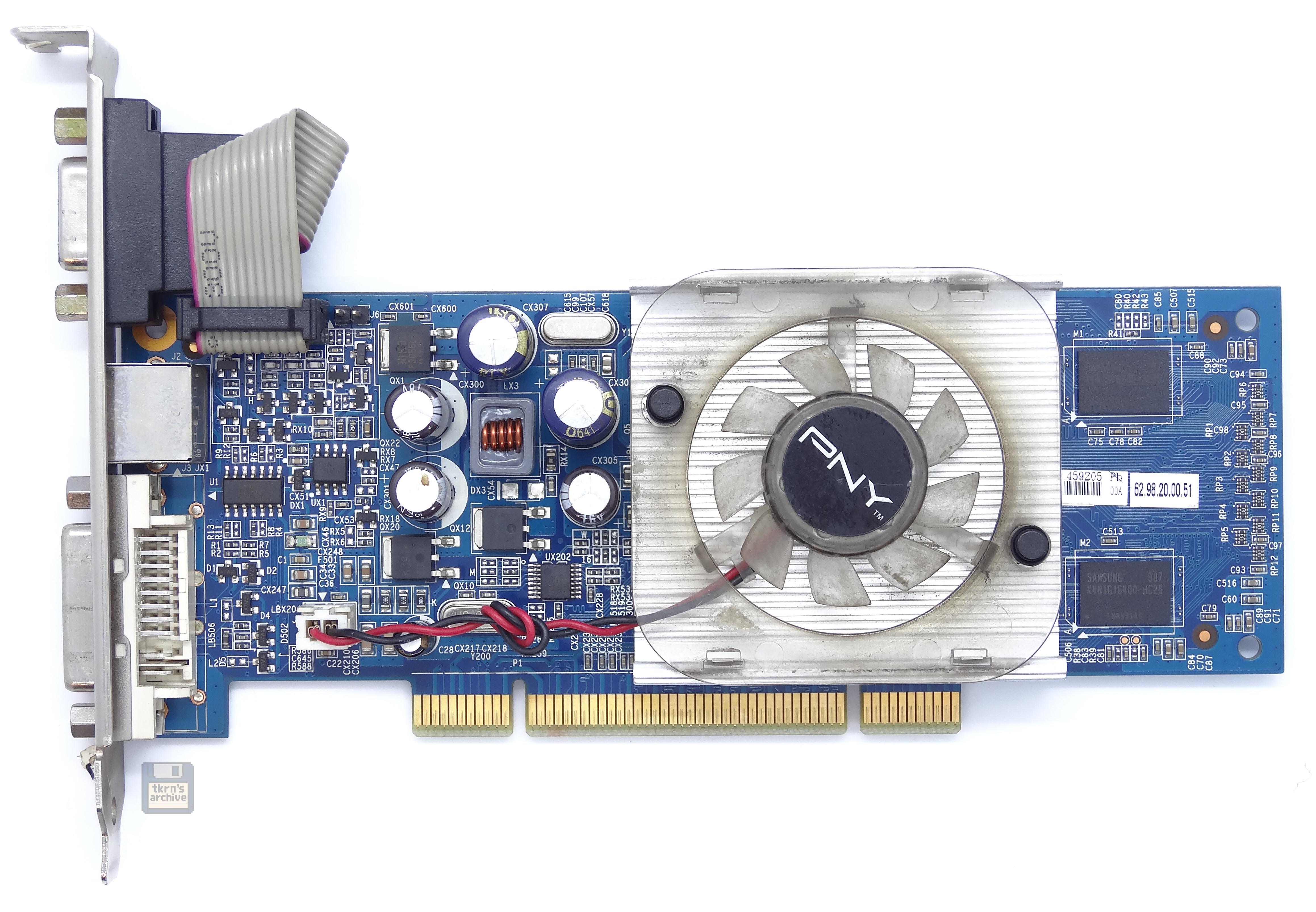

image1 Image 1 of 2 (tkrn)

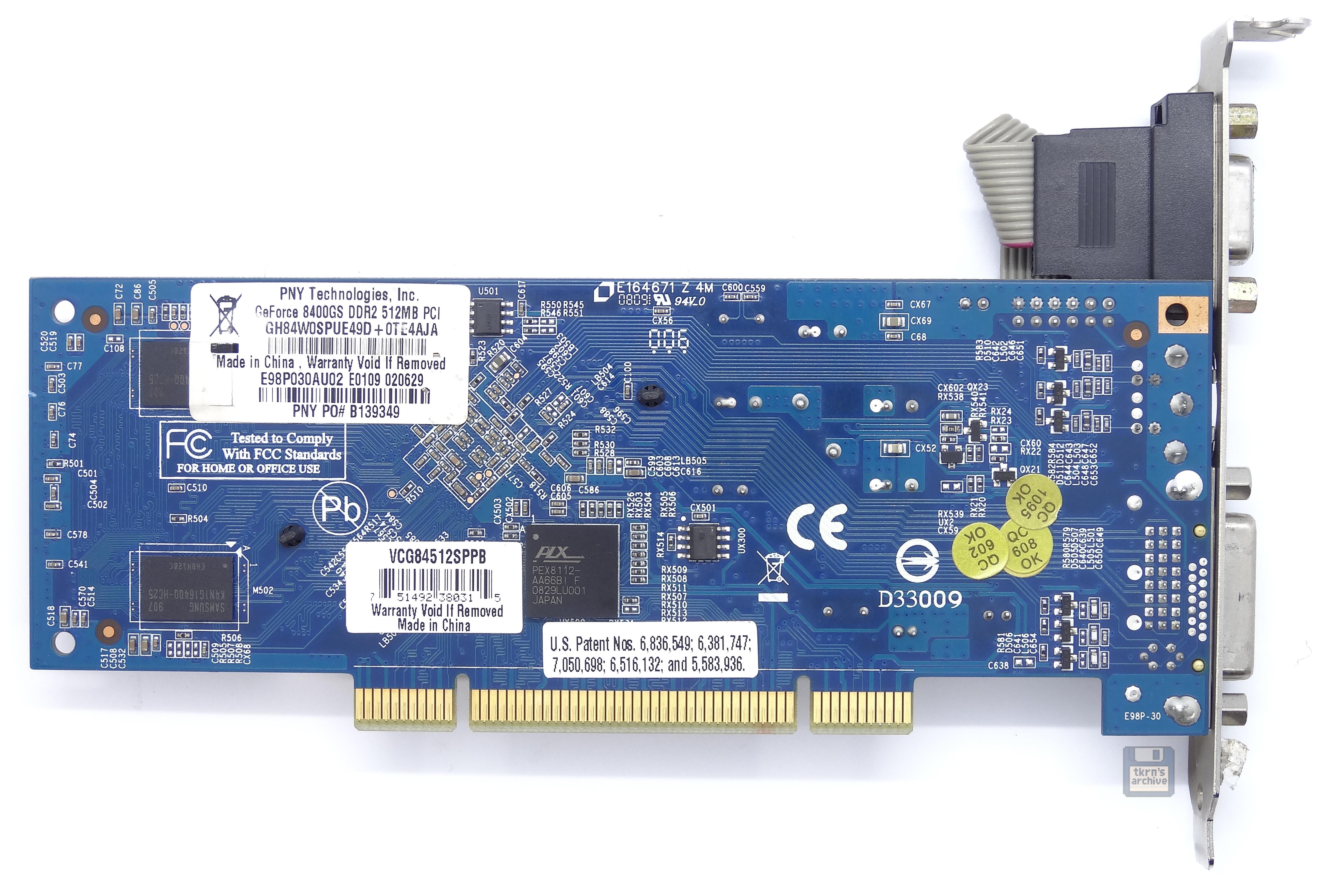

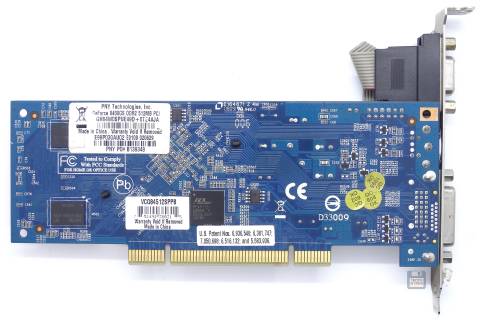

image2 Image 2 of 2 (tkrn)
