Pine Technology PT2366
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
dimDimensions
157 mm (width) x 56mm (length)
chip Chips and specs
-> Audio
C-Media CMI8330(A/3D) (PnP 3D Audio & WSS / SB16)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Size Three-quarter length, Half height card
Card Type Sound card
I/O Options Game/MIDI port, wavetable connector, speaker/line out, line in, microphone in, audio in - CD-ROM
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 1x2 2.54mm pin header
1x
  • 1x2 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-15T13:02:09Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.0.00152
OS support
Windows 9x Windows NT 4.0
Arch
Size
35.9MB
Filename
Name
Version
4.10.00.0152
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
Size
27.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.7MB
Filename
Version
OS support
Empty
Arch
x86
Size
863.1KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 2 (Virtual Computer Antiques)

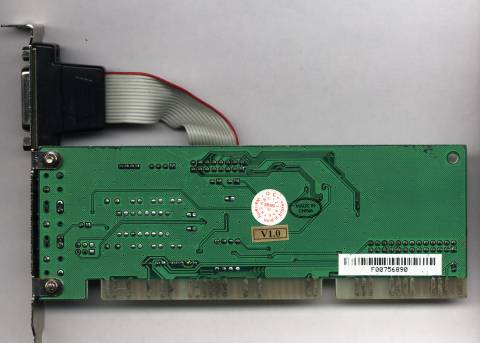

image2 Image 2 of 2 (Virtual Computer Antiques)
