Pine Technology PT-627B
Logs
Type
Floppy controller
Multi I/O
IDE controller
Interface
Signaling
16-bit ISA
32-bit VLB
8-bit ISA
PCI IDEmpty
FCC IDHBQUMC8631
Chips and specs
-> IDE ctrl.
-> Signal transmitter/receiver
-> Super I/O
I/O ports
1x
- 2x17 2.54mm pin header
1x
- 2x8 2.54mm pin header
2x
- 2x20 2.54mm pin header
1x
- DB-25
1x
- DE-9
1x
- 2x5 2.54mm pin header
Power connectorsEmpty
Notes
- Pins for J1, Enable IOCHRDY, are populated on the "B" version for the board
- The FCC ID is actually for the chip, not for the card. It will be found on other cards as well.
Last updated 2025-11-11T01:37:05Z
1 card BIOS file available
Version
Note
File
Logs
1 chip with BIOS files available Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.1
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Arch
Size
990.1KB
Filename
1 card document available
Release date
File
Logs

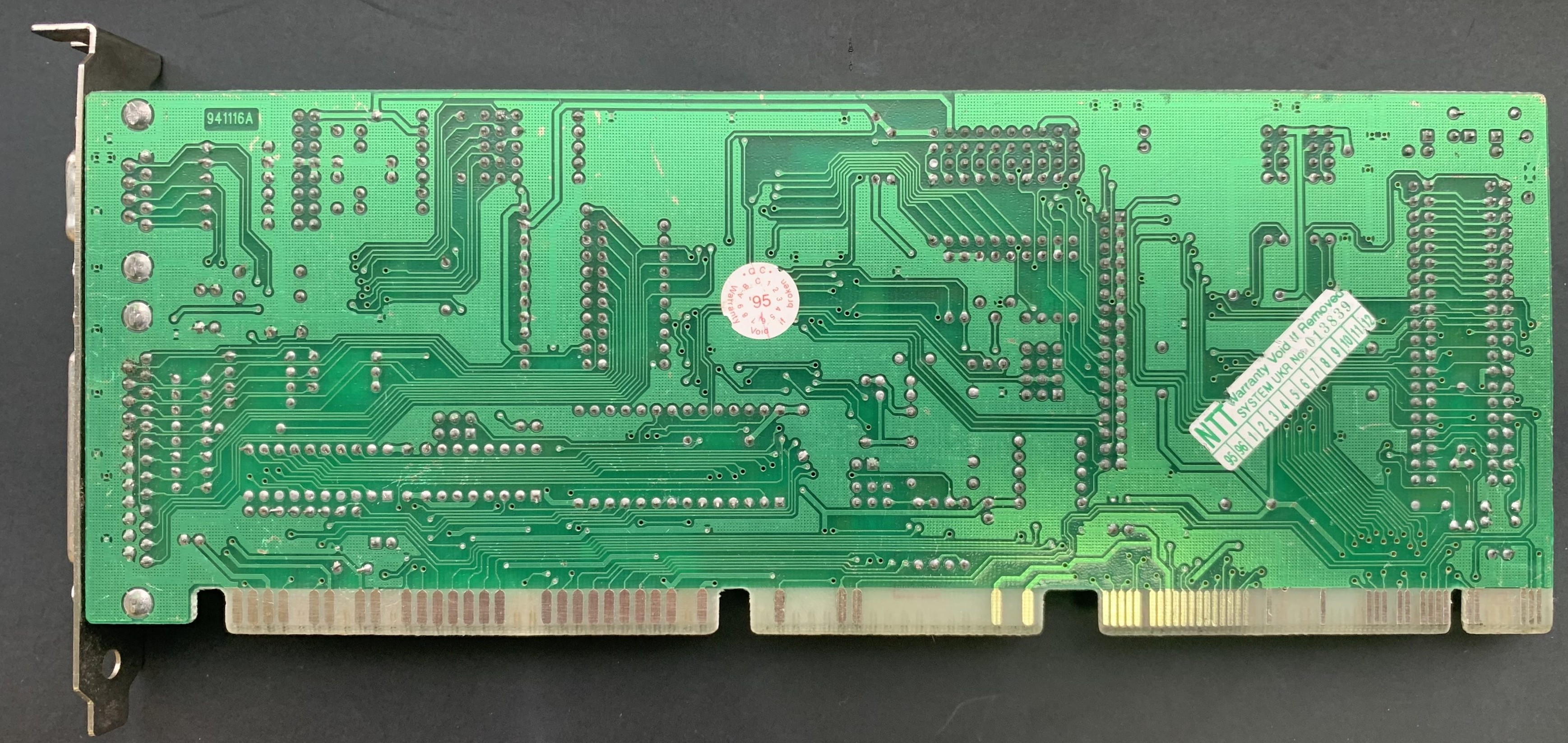

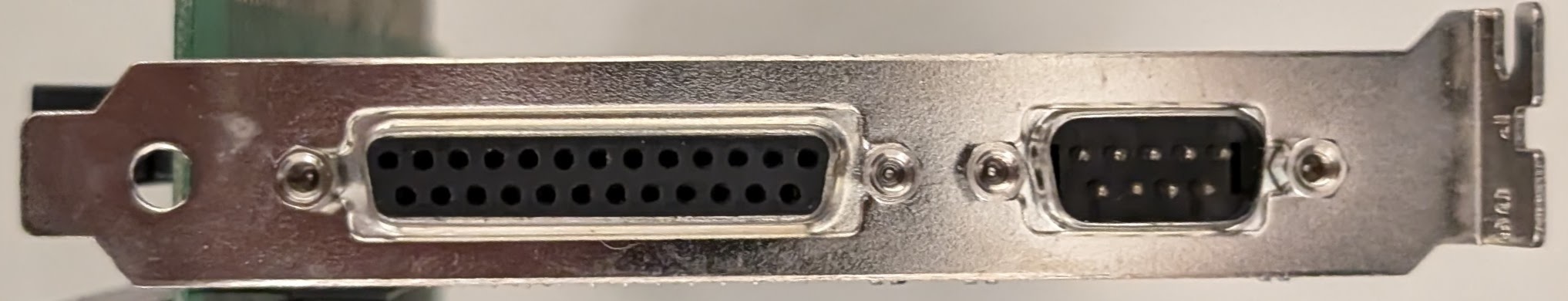

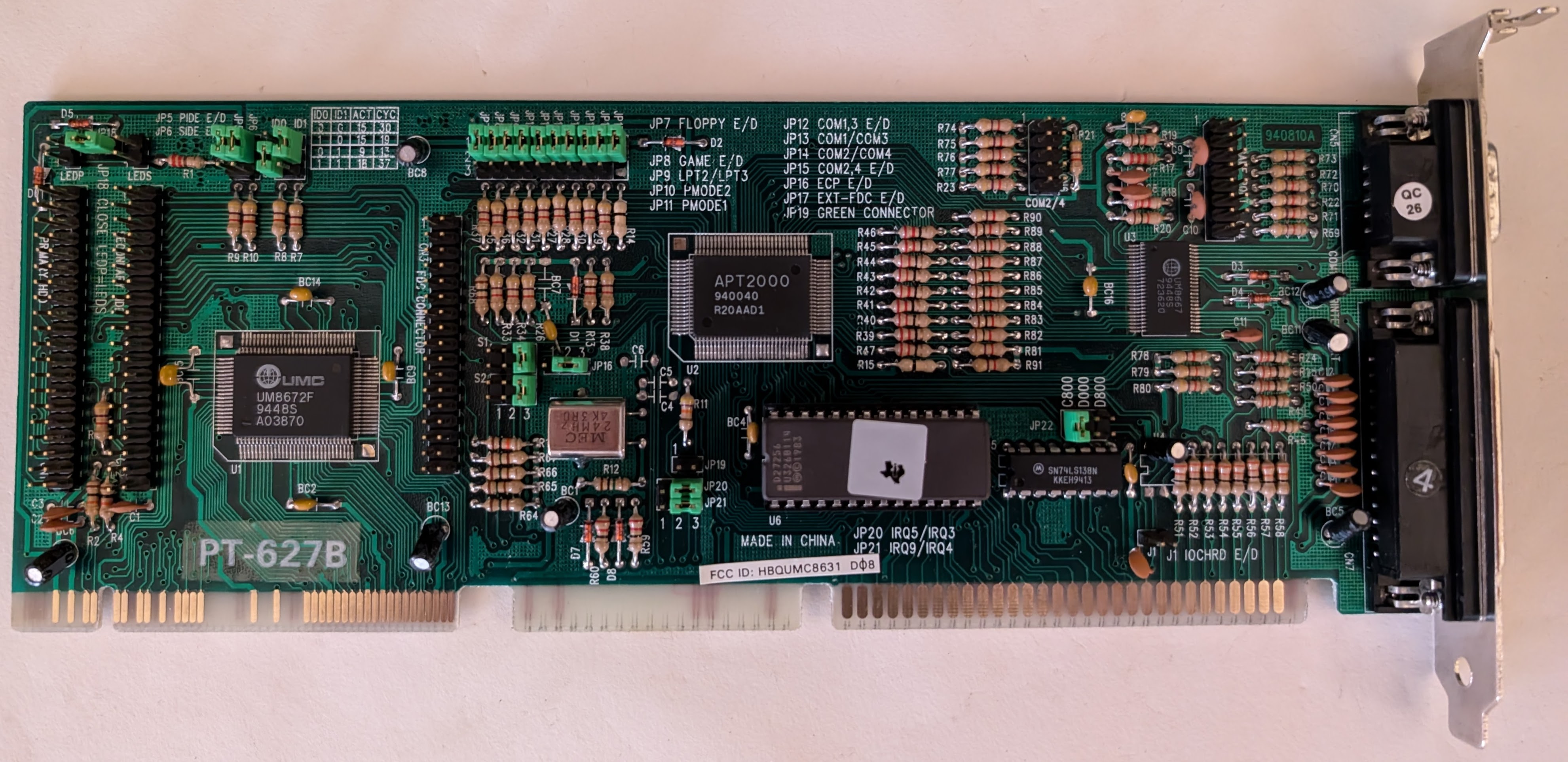

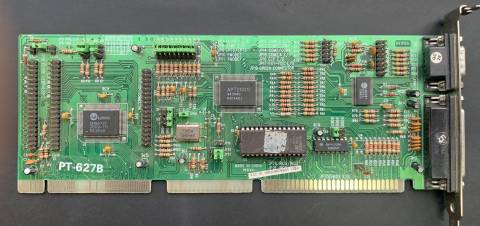

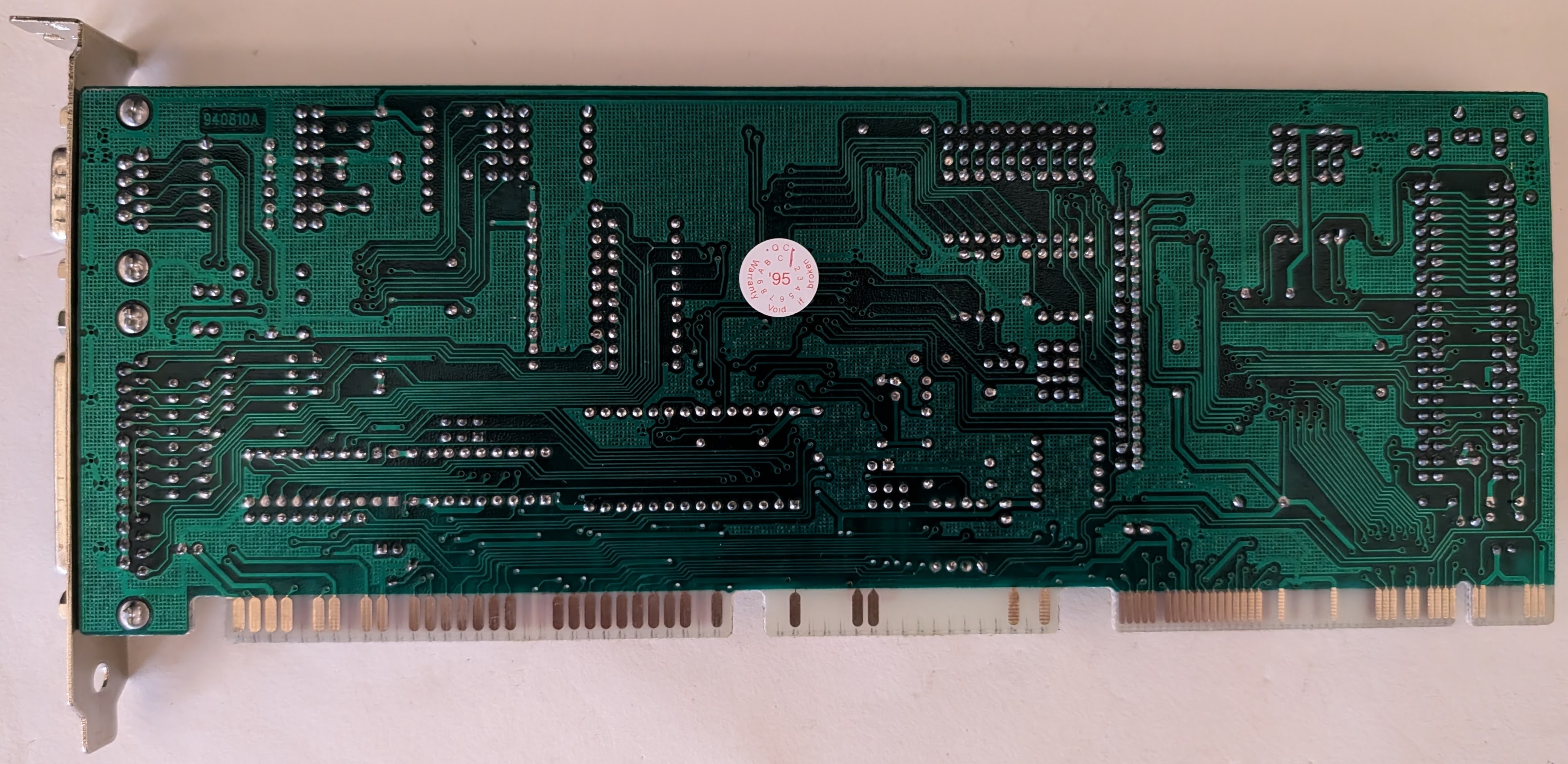

Image 1 of 5 (davidg)
Image 2 of 5 (Babasha)
Image 3 of 5 (davidg)
Image 4 of 5 (Babasha)
Image 5 of 5 (davidg)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
