Philips PCI Tuner V2.0 (prototype)
Logs
typeType
Video capture TV tuner
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
Empty
chip Chips and specs
-> Bridge Interface
Philips SAA7146 (Multimedia PCI Bridge (SPCI))
-> Video
Philips SAA7114H (Video decoder with comb filter)
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • RCA Jack
1x
  • Belling-Lee male coaxial
1x
  • 7-pin Mini-DIN
1x
  • Belling-Lee female coaxial
powerPower connectors
Empty
notes Notes

Prototype carrier card used internally for testing of various decoders like the SAA7114, on swappable daughter boards.

Last updated 2025-08-05T11:40:29Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
3.7MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

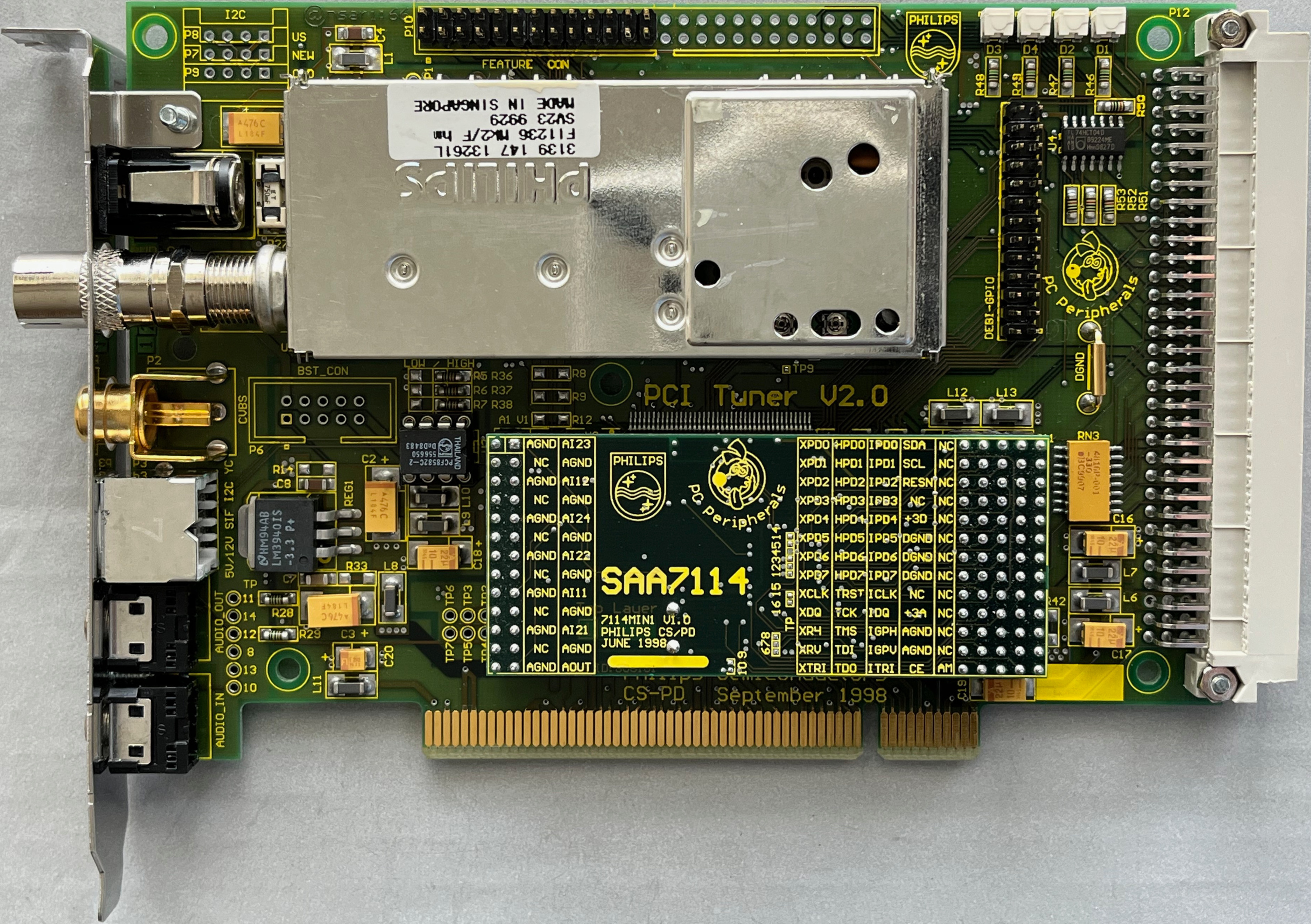

image1 Image 1 of 5 (dogecode)

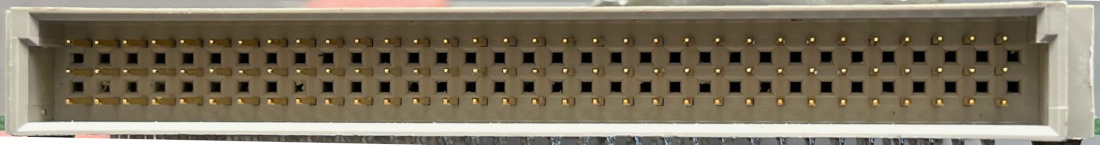

image2 Image 2 of 5 (dogecode)

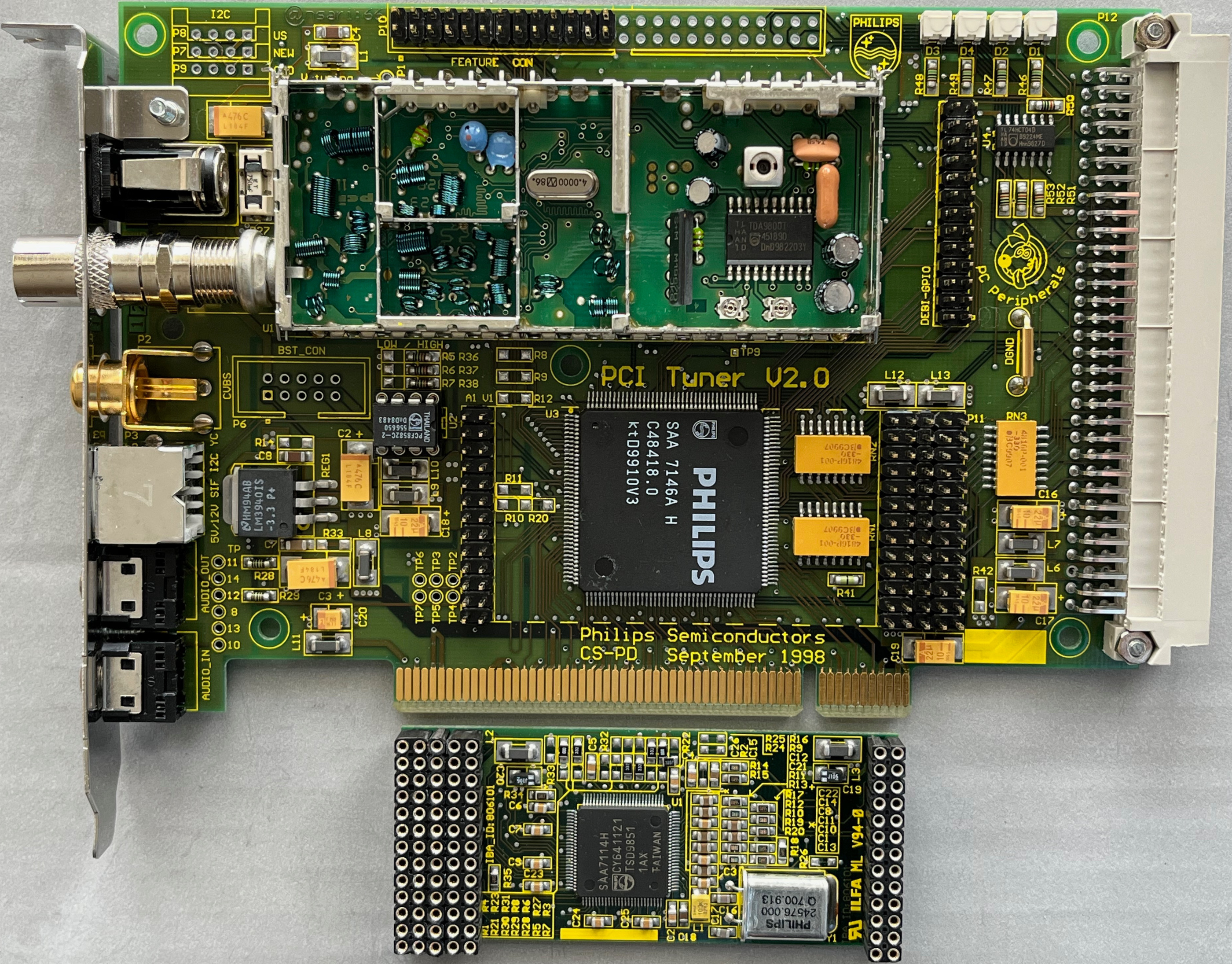

image3 Image 3 of 5 (dogecode)

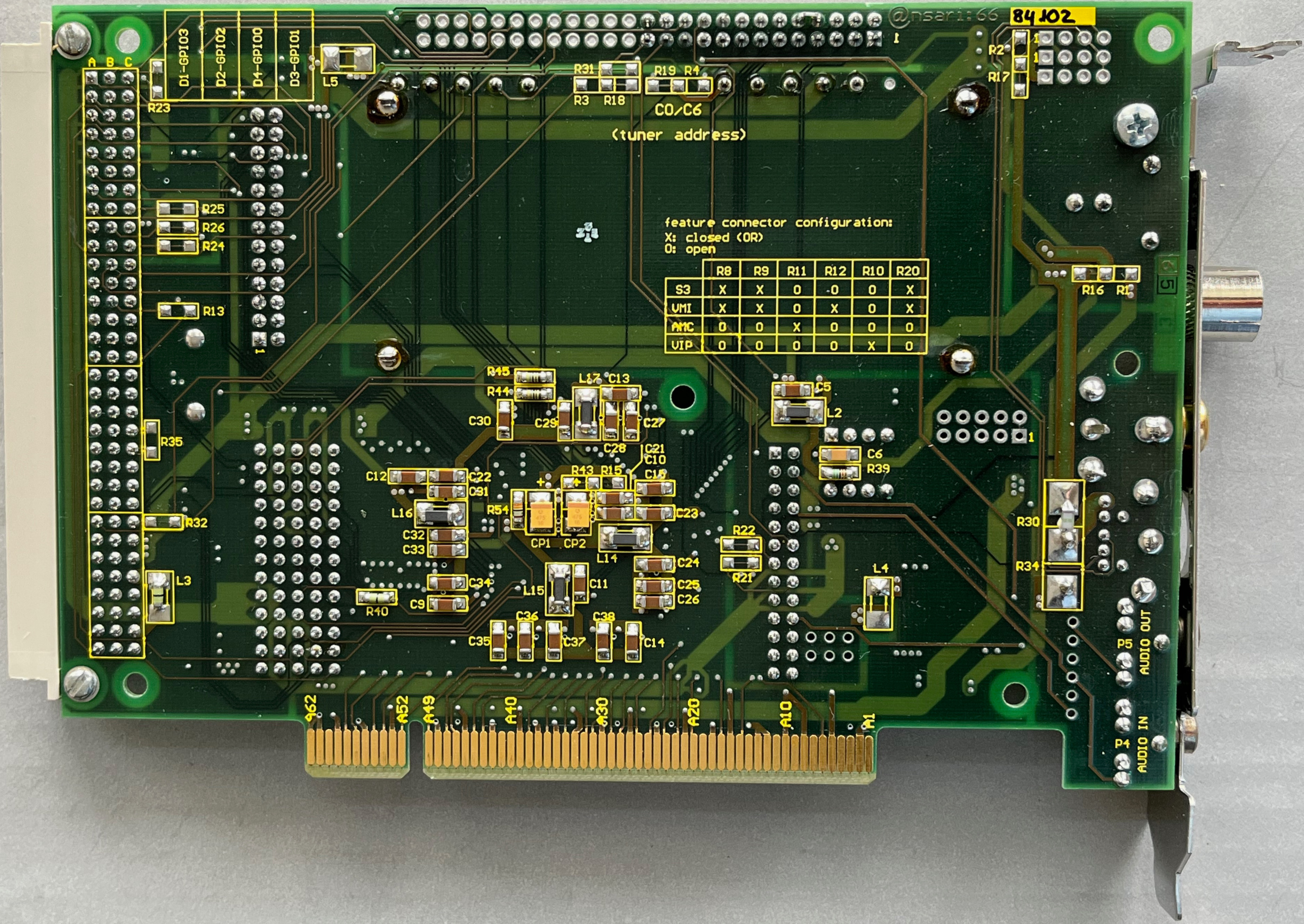

image4 Image 4 of 5 (dogecode)
image5 Image 5 of 5 (dogecode)
